NI PXIe-5105

  • Technical Specifications
    • Voltage Input Channels: 8.
    • Analog Input Resolution: 12 bits.
    • Analog Input Voltage Range: -15 V to 15 V.
    • Maximum Sampling Rate: 60 MS/s.
    • Oscilloscope Maximum Bandwidth: 60 MHz.
    • Analog Input Impedance: 1 MΩ or 50 ohms.
    • Bus Connector: PXI Express.
    • Memory: It can be configured with 16 MB, 128 MB, or 512 MB of memory.
    • Power Consumption: Approximately 23 W.
    • Operating Temperature Range: 0°C - 55°C.
    • Storage Temperature Range: -40°C - 71°C.

ABB PM902F 3BDH001000R0005

  • Technical Specifications
    • Power Supply Voltage: 24V DC, with an allowable range of 18 - 30V DC.
    • Environmental Temperature: 0 - 60°C.
    • Humidity: 5 - 95%, non - condensing.
    • Communication Interface: RS - 485, supporting Modbus RTU protocol.
    • Digital Inputs: 16, compatible with NAMUR sensors and PNP/NPN sensors.
    • Digital Outputs: 8, can be configured as PNP or NPN outputs, with a maximum load of 0.5A per output.
    • Frequency Range: Up to 50kHz.
    • Protection Rating: IP65.
    • Size: The net depth/length is 95 mm, the net height is 152 mm, and the net width is 227 mm.
    • Weight: 1.1 kg.

ABB PM511V16 3BSE011181R1 – Processor Module

  • Technical Specifications
    • Processor Type: PowerPC 603e or PowerPC 750, with a main - frequency of up to 800 MHz.
    • Operating Voltage: 24V DC.
    • Output Power: The maximum output power is 16W.
    • Working Temperature Range: -20°C to +60°C.
    • Storage Capacity: 2MB flash memory and 256MB SDRAM.
    • Communication Interface: Support Ethernet, serial port (RS - 232/RS - 485), Profibus DP, CANopen, EtherCAT, etc.
    • I/O Points: 16 digital inputs and 16 digital outputs, 4 analog inputs and 4 analog outputs.
    • Size: 230mm x 170mm x 65mm.
    • Protection Level: IP65.
    • Installation Method: DIN - rail installation.
    • Weight: About 1.5 kg.

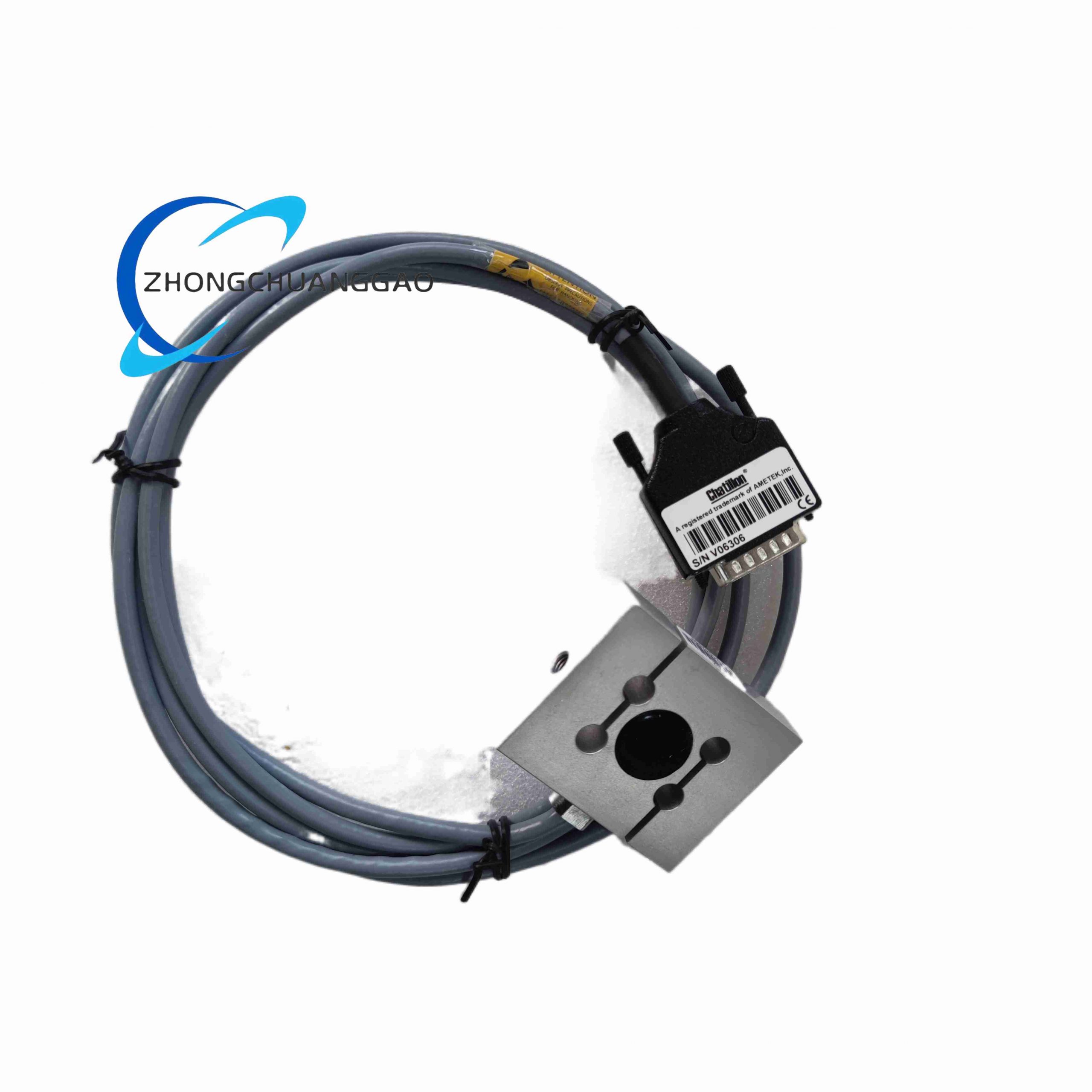

Chatillon E46-033-2

Product Name​
S-Beam Tension / Compression Load Cell
Product Introduction​
Precision S-beam force transducer for tension and compression measurement, designed for force testing, material testing and automated production inspection.

GE V7768-312000

Technical Specifications

  • Processor: It may be equipped with an Intel Core 2 Duo processor up to 2.16 GHz or an Intel Celeron M processor up to 1.07 GHz. The L2 cache is 4 Mbyte for Core 2 Duo and 1 Mbyte for Celeron M.
  • Memory: It can support up to 2 Gbyte DDR2 SDRAM through a single SODIMM.
  • Storage: It can support up to 8 Gbyte bootable compact flash, accessible via the secondary IDE port and can be configured as a boot device through BIOS.
  • Interface: It has 2 serial ports, 4 USB 2.0 ports (2 in the front and 2 in the rear), 2 SATA ports, and a PS/2 keyboard/mouse interface on the front panel. There are also 2 gigabit Ethernet ports on the front panel, using Intel 82571, supporting network boot via PXE. In addition, it has a PCI - X PMC expansion site and a board - to - board connection for the PMC 237 CM1/V PMC expansion board. Some versions have a PCI Express 3.0 x16 interface, 8GB GDDR6 memory, a core clock of 1605 MHz, and a boost clock of 1905 MHz.

Woodward 8200-1312 Electro-Hydraulic Converter

  • Technical Specifications
    • Rated Voltage: 18 - 36V DC.
    • Power Consumption: 25W.
    • Input Signal: 0 - 10V DC, 4 - 20mA.
    • Output Signal: ±5A.
    • Response Time: Less than 10ms.
    • Accuracy: ±0.5%.
    • Protection Level: IP65.
    • Operating Temperature: - 40°C to 85°C.
    • Size: 150mm x 100mm x 60mm.
    • Weight: 1.5kg.
    • Shell Material: Aluminum alloy.
    • Connection Method: Cable connection.

ABB PM891K01 3BSE053241R1–Central Processing Unit for System 800xA

  • Technical Specifications
    • Processor Architecture: It adopts PowerPC 604e architecture, and some models are equipped with a 450 MHz MPC8270 processor. There are also versions with ARM Cortex - A53 quad - core 1.9 GHz processors.
    • Memory: It usually has 128 MB RAM and 4 MB flash memory, and some high - end models are equipped with 2 GB DDR4 RAM and 4 GB eMMC Flash (3.2 GB available to users).
    • Communication Interface: It supports RS - 232, RS - 485, and Ethernet interfaces. There are 2 Ethernet ports (10/100 Mbit/s or Gigabit Ethernet), and some models are also equipped with 1 USB 3.0 port.
    • Backplane Bus: Some models support ABB AF600 backplane bus with a bandwidth of 600 Mbps, which is downward - compatible with AF400.
    • Power Supply: The power supply is 24 V DC, with a range of ±30%, and the typical power consumption is 7.5 W.
    • Operating Temperature: The operating temperature range is generally - 25°C to +60°C, and some models can reach - 25°C to +70°C.
    • Size and Weight: The size is about 102.5 mm×102.5 mm×32 mm, and the weight is about 2.1 kg.
    • I/O Points: It can support up to 64 I/O points.

ABB PFCL201C – Pressductor PillowBlock Load Cell

  • Technical Specifications
    • Measurement Range: Available in multiple ranges, such as 5kN, 10kN, 20kN, and 50kN. Taking the 20kN model as an example, its measurement range is 0 - 20kN (20,000N).
    • Accuracy: Generally, it can reach ±0.2%FSO, and some models can reach up to ±0.1%FSO.
    • Non - linearity: ±0.2%FSO or better, and some high - end models can reach ±0.05%FSO.
    • Output: Common outputs include 2mV/V, 4 - 20mA, 0 - 10V, or RS485.
    • Bridge Resistance: Usually 350Ω.
    • Power Supply: The input voltage range is 12 - 24V DC.
    • Operating Temperature: -20°C to +80°C or -40°C to +85°C for some models.
    • Humidity: 5% to 95% non - condensing.
    • Protection Level: IP67, which can work in harsh environments.
    • Size: Approximately 100mm×50mm×25mm.
    • Weight: About 0.8kg.
    • Overload Capacity: For example, the 50kN model has an overload capacity of 500kN.

IC698CRE040-HN-2

  • Technical Specifications
    • Processor: Equipped with a 1.8GHz Pentium - M microprocessor.
    • Memory: 64MB of battery - backed RAM for program storage, and 64MB of non - volatile user flash memory.
    • Scan Rate: The typical scan rate is 0.024 ms per 1000 boolean contacts/coils.
    • Communication Interfaces: Support RS - 232, RS - 485 serial ports and Ethernet interfaces. The Ethernet interface has a data rate of 10M or 100M, with a 10BaseT RJ45 physical interface, and can support up to 16 web server and FTP connections in total for web - based data monitoring.
    • Power Requirements: +5VDC at 6.8 amps nominal, +12VDC at 0.003 amps nominal, and -12VDC at 0.003 amps nominal.
    • Operating Temperature Range: 0°C to 60°C.
    • Programming Languages: Support programming languages such as ladder diagram, C, structured text, and function block diagram.
    • Standard Compliance: Comply with the VME64 standard (ANSI/VITA 1), which is convenient for communication with I/O modules.

FOXBORO H92904CC0500 Multi-Function Industrial Module

  • Technical Specifications
    • Operating Temperature: -20°C to +60°C.
    • Relative Humidity: 5% - 95% RH.
    • Protection Level: IP20.
    • Installation Method: DIN rail mounting, panel mounting, etc.
    • Communication Interface: Ethernet, RS - 232, RS - 485, etc.

TRICONEX 3009 – Main Processor Module

  • Processor: High - performance 32 - bit MIPS Cortex - M4 processor with a main frequency of up to 1.3 GHz.
  • Memory: 2GB RAM, supporting hot - swap function.
  • Storage: 8GB flash memory for storing programs and data.
  • Communication Interfaces: Support Ethernet, RS - 232/485 serial communication, Modbus TCP/IP protocol, etc.
  • I/O Channels: Support up to 96 I/O points, including digital input/output, analog input/output, etc.
  • Operating Voltage: 24V DC input, 5V DC output.
  • Operating Temperature Range: -40°C to +85°C.
  • Size: 45mm x 20mm x 15mm.
  • Weight: Approximately 2 kg.
  • Safety Level: Meet the requirements of SIL - 3 safety integrity level.

WOODWARD 2301E Digital Load/Speed Controller

  • Technical Specifications
    • Input Voltage: Usually 24VDC, and can be adjusted to 18 - 36VDC according to application requirements.
    • Output Voltage: 4 - 20 mA DC or 0 - 10 VDC.
    • Working Temperature Range: -40°C to 85°C.
    • Dimensions: 96 x 48 x 100 mm or 150mm×100mm×50mm.
    • Weight: Approximately 0.15 kg.
    • Communication Interface: RS - 232, RS - 422.
    • Load Cell: 1.
    • Actuator Driver: 1.
    • MPU Speed Sensor: 1.
    • Configurable Analog Inputs: 2.
    • Configurable Analog Outputs: 1.
    • Discrete Inputs: 8 (5 fixed, 3 configurable).
    • Discrete Outputs: 4 (1 fixed, 3 configurable relay driver outputs).
