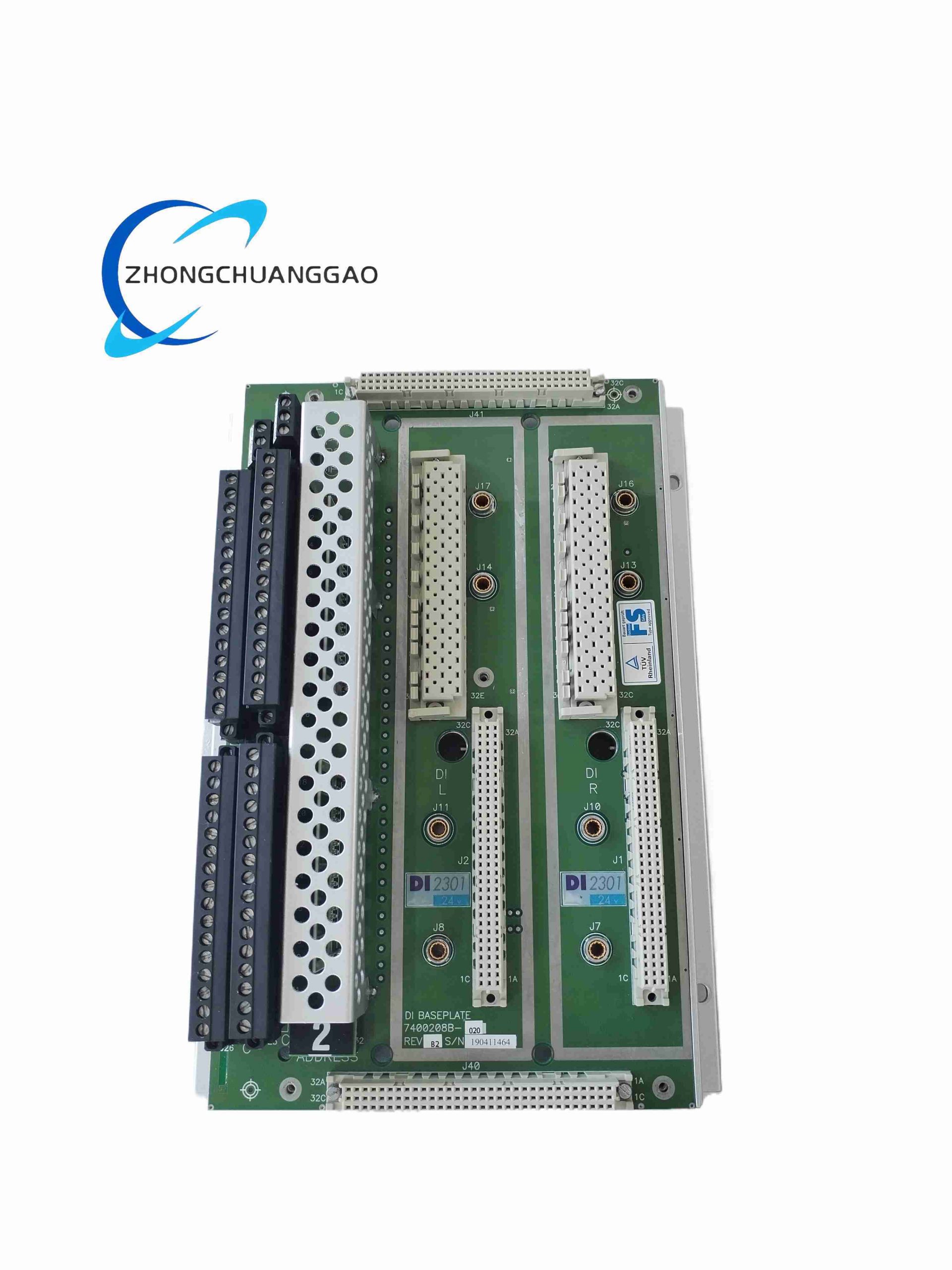

Triconex DI2301

Product Name:​ DI2301 triple-modular-redundant 24 VDC digital input module for Tricon safety systems.
Product Introduction:​ DI2301 collects field discrete signals from emergency pushbuttons, limit switches, relay contacts and sensors, then provides isolated and voted digital input data to the Tricon safety instrumented system.

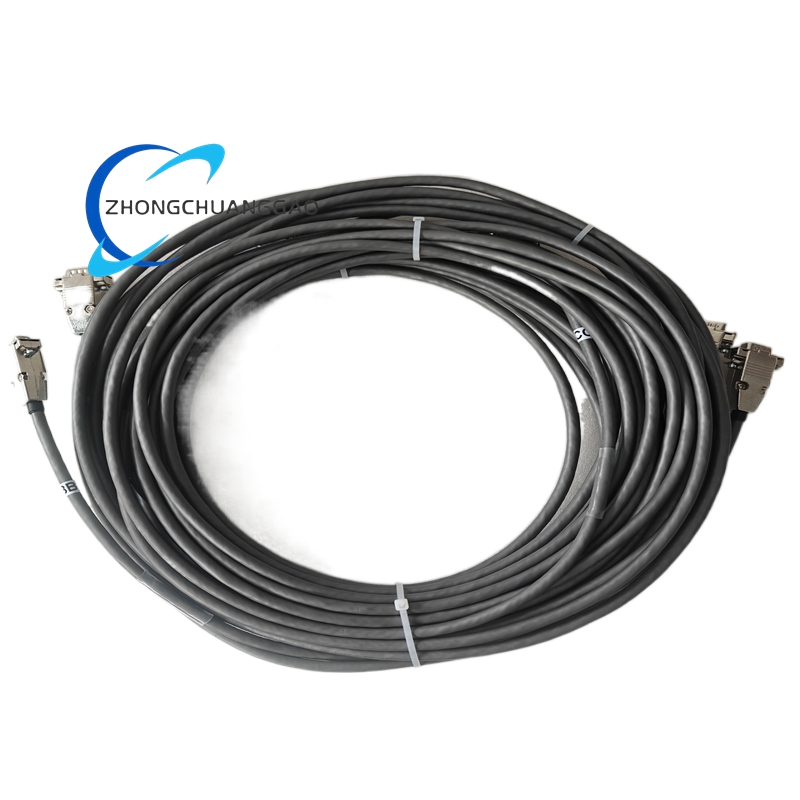

Triconex 9000-025

Product Name​
Triconex 9000-025 I/O Bus Expansion Communication Cable
Product Overview​
This is a 25-foot passive interconnect cable for Triconex Tricon TMR safety systems. It links the main chassis to remote expansion racks and preserves deterministic safety-bus communication through triplicated signal paths.

Triconex 9671-810

Model:​ 9671-810
Product Name:​ TMR Digital Input Module for Tricon Safety System
Product Introduction:​ The 9671-810 acquires 24 V DC discrete field signals through triple modular redundant channels. It is used in safety instrumented systems where spurious trips and undetected failures must be minimized.

TRICONEX 4000212-020L

Product Name
TRICONEX 4000212-020L TRICON v11 TMR analog input module, 4 to 20 mA.
Product Introduction
This module provides fault-tolerant analog signal acquisition for safety instrumented systems. It is designed for refinery, chemical, power, LNG, fired-heater, turbo-machinery and other SIL 3 safety applications.

TRICONEX 4000206-520

Product Name
TRICONEX 4000206-520 TMR digital input module for Tricon safety systems.
Product Introduction
This module acquires digital field signals in safety-critical applications using triple modular redundant input processing. It supports emergency shutdown, turbine protection, fire and gas detection, and other high-availability safety functions.

Triconex 2401

Product Name​
Triconex 2401 TMR 115 VAC/VDC digital input module.
Product Introduction​
Triconex 2401 is a high-voltage discrete input module for Tricon triple-modular-redundant safety systems. It acquires 32 field contact or powered signals at 115 VAC/VDC, applies optical isolation, and performs three-path voting to support emergency shutdown and safety-instrumented functions.

TRICONEX 8310 High-Density Power Module

Functional Features

  1. Triple Modular Redundancy (TMR)
    • Three independent sub-circuits with hardware/software voting ensure uninterrupted power during faults .
    • Automatic switch to backup power if primary fails, critical for SIL 3 applications .
  2. Hot-Swap & Modular Design
    • Modules replaceable online without system shutdown .
    • DIN-rail or panel mounting for flexible integration .
  3. Diagnostics & Safety
    • LED indicators for real-time fault detection (e.g., blown fuse, overload) .
    • Conformal PCB coating resists dust, moisture, and chemical corrosion .
  4. Wide Compatibility
    • Supports Triconex Main Chassis (8110), Expansion Chassis (8111/8121), and RXM Chassis (8112) .
    • Interfaces with I/O modules up to 12 km away via fiber-optic extenders .

Triconex 3201 Communication Module

1. Technical Specifications • Power supply: 24 VDC nominal, 18–36 VDC operating range • Operating temperature: −20 °C to +60 °C • Communication interfaces: – Two RJ-45 10/100 Mbit Ethernet ports – Two isolated RS-232/RS-485 serial ports • Supported protocols: Modbus RTU/TCP, TriStation, TCP/IP, UDP • Serial data rate: 300–115 200 bps, software-selectable • Isolation: 2.5 kV channel-to-earth, 500 V channel-to-channel • Mechanical: single-slot 6U module, 160 mm × 110 mm × 25 mm, 0.35 kg • Indicators: dual-color LEDs per port for link, activity, and fault status

TRICONEX 3009 – Main Processor Module

  • Processor: High - performance 32 - bit MIPS Cortex - M4 processor with a main frequency of up to 1.3 GHz.
  • Memory: 2GB RAM, supporting hot - swap function.
  • Storage: 8GB flash memory for storing programs and data.
  • Communication Interfaces: Support Ethernet, RS - 232/485 serial communication, Modbus TCP/IP protocol, etc.
  • I/O Channels: Support up to 96 I/O points, including digital input/output, analog input/output, etc.
  • Operating Voltage: 24V DC input, 5V DC output.
  • Operating Temperature Range: -40°C to +85°C.
  • Size: 45mm x 20mm x 15mm.
  • Weight: Approximately 2 kg.
  • Safety Level: Meet the requirements of SIL - 3 safety integrity level.

TRICONEX TCM4355X Communication Module, Reliable Industrial Connectivity

TRICONEX TCM4355X Communication Module, Reliable Industrial Connectivity

The TRICONEX TCM4355X Communication Module is designed for high-reliability data transmission in industrial environments. It supports robust communication protocols to ensure seamless operation in harsh conditions, making it an ideal choice for SCADA systems, process automation, and other critical industrial applications.
