Yokogawa AVR10D-Q22020

Overview​
Based on the AVR10D-Q2 suffix and industrial distributor documentation, AVR10D-Q22020 is listed as a Yokogawa duplex V-net router that interconnects CENTUM Vnet/IP, V-net and VL-net networks with redundant communication and power modules. If the asset is a generator excitation AVR rather than a CENTUM router, use Yokogawa AVR10D excitation documentation instead; both names can appear under AVR10D.

YOKOGAWA A1BA4D-05

Product Name
Analog terminal board.
Product Introduction
This terminal board provides connection, distribution, and wiring interface functions for analog signal channels in Yokogawa control and instrumentation systems. It supports cabinet installation and is used where field analog transmitters, sensors, and controller I/O need organized termination.

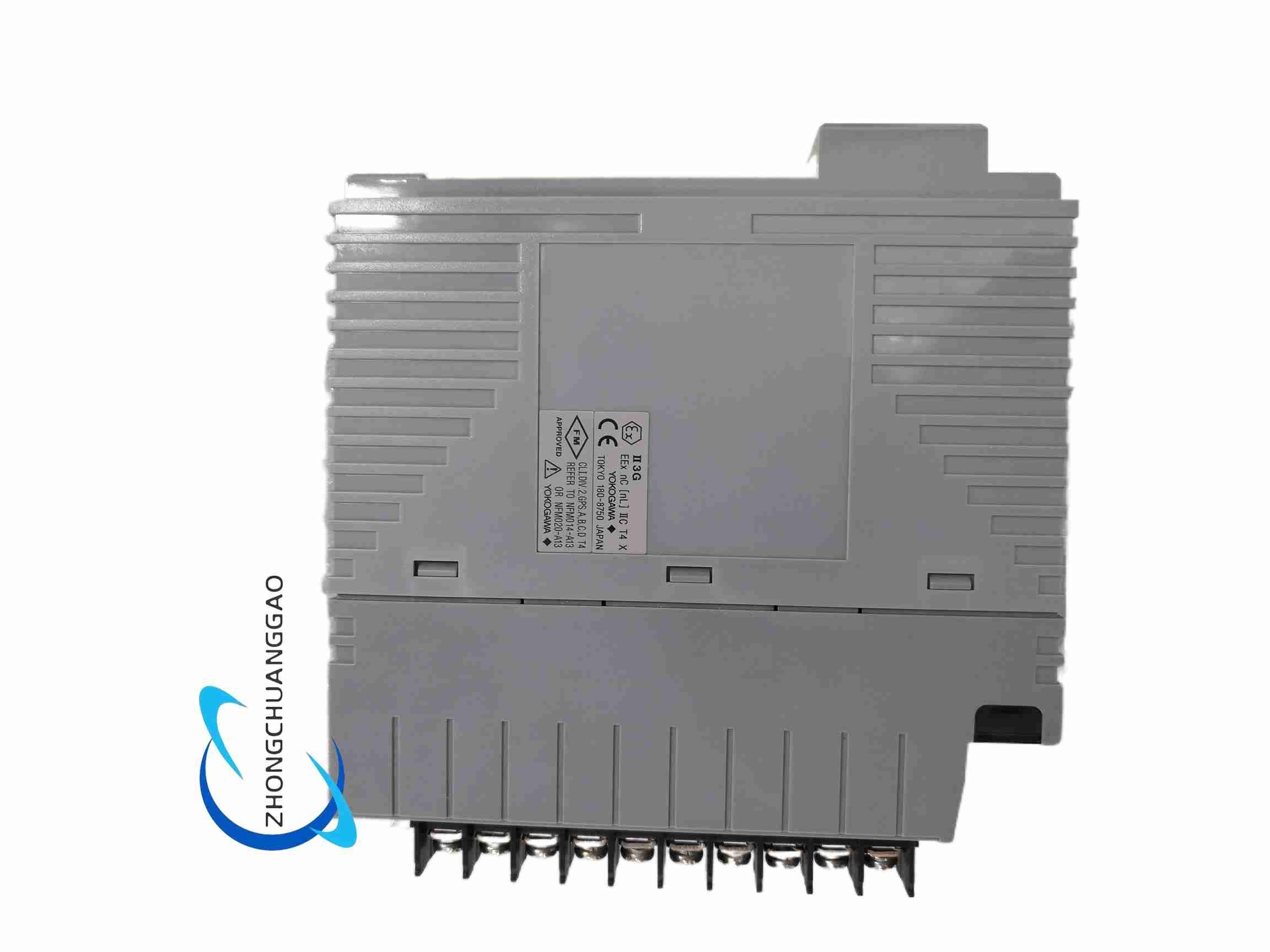

YOKOGAWA AALR121-S00

Product Name
YOKOGAWA AALR121-S00 CENTUM alarm relay output module with 16 isolated Form A contacts.
Product Introduction
AALR121-S00 converts DCS alarm, trip and interlock commands into hard-wired relay contacts for annunciators, horns, beacons, shutdown solenoids and safety interlock panels. It is designed for CENTUM I/O racks requiring isolated discrete alarm output.

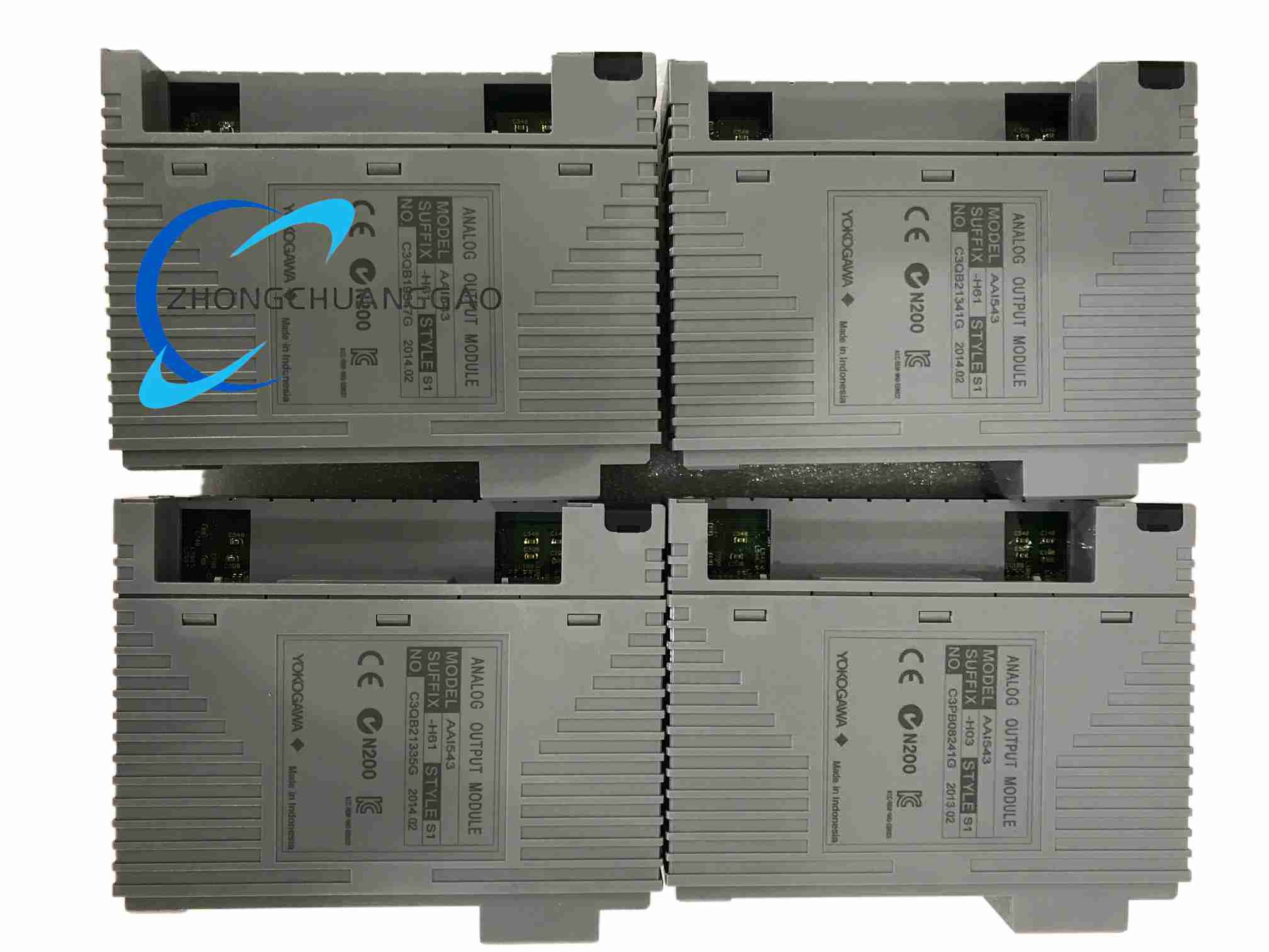

YOKOGAWA AAI543-H61-K4A00

Product Name
YOKOGAWA AAI543-H61-K4A00 16-channel isolated HART analog output module with redundant capability and pressure-clamp termination.
Product Introduction
AAI543-H61-K4A00 delivers 4-20 mA control signals to valves, positioners and actuators in CENTUM VP/FIO architectures. The H61 option provides hot-standby redundant operation, and the K4A00 option provides pressure-clamp terminal wiring for vibration-resistant installation.

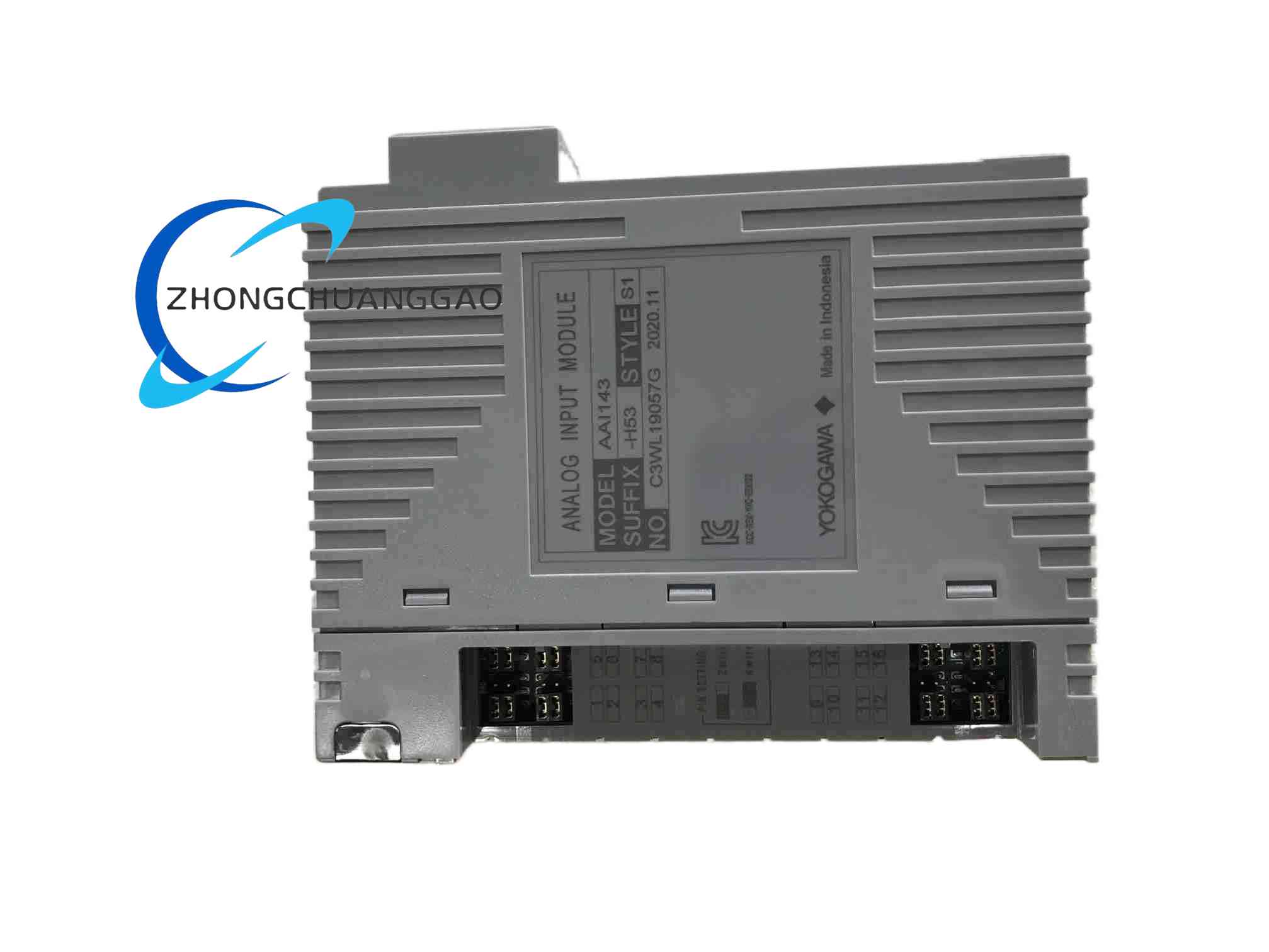

YOKOGAWA AAI143-H53 S1

Product Name
YOKOGAWA AAI143-H53 S1 16-channel isolated HART analog input module for CENTUM CS/VP ESB and ER node systems.
Product Introduction
AAI143-H53 S1 provides high-density 4-20 mA acquisition with channel-to-system isolation and HART passthrough. It is intended for transmitter intensive process units requiring diagnostics, redundant I/O and corrosion-resistant operation.

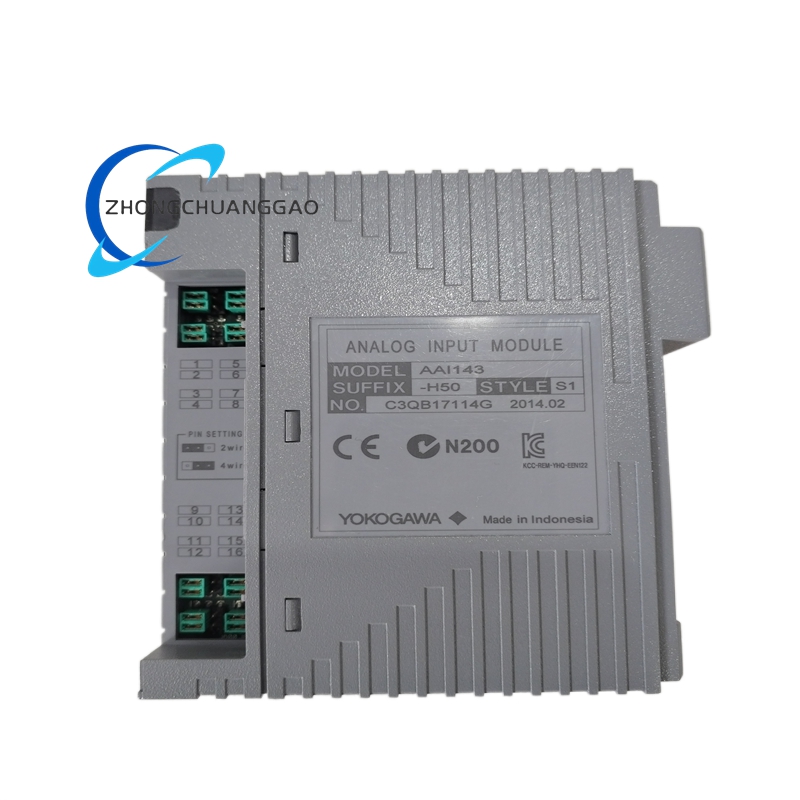

YOKOGAWA AAI143-H50K4A00

Product Name
YOKOGAWA AAI143-H50K4A00 16-channel isolated HART analog input module with KS dedicated-cable interface.
Product Introduction
AAI143-H50K4A00 acquires 4-20 mA transmitter signals for CENTUM VP, CS 3000 and compatible Yokogawa systems. The H50 option enables HART communication, and the K4A00 option defines KS dedicated-cable termination for centralized wiring through the ATK4A-00 adapter.

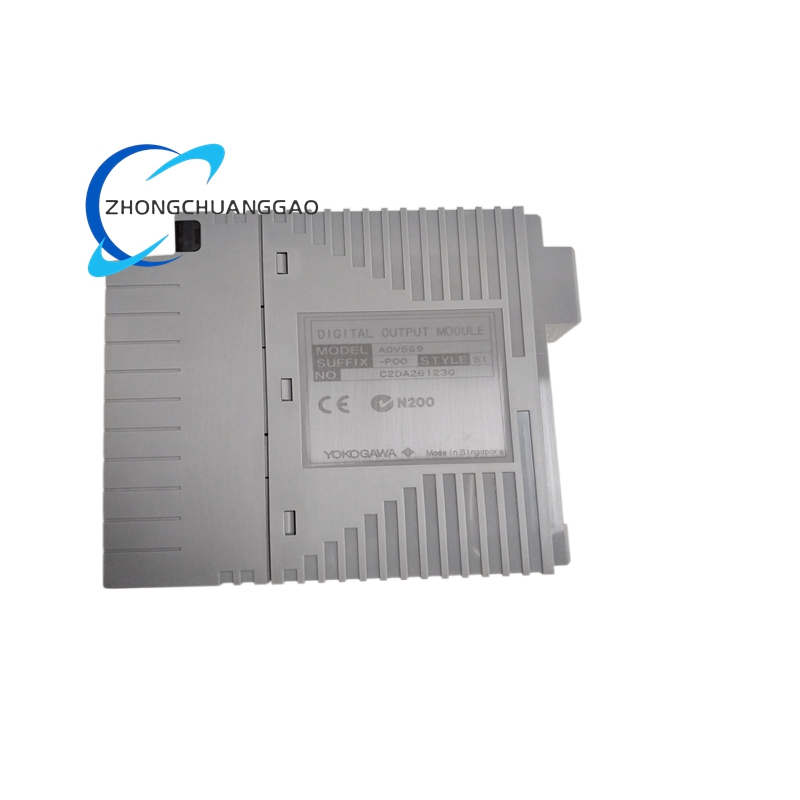

Yokogawa ADV569-P00

Product Name​
Yokogawa ADV569-P00 64-channel transistor digital output module.
Product Introduction​
ADV569-P00 is a high-density digital output module for Yokogawa ST7-compatible control systems. It provides 64 isolated transistor outputs with pulse-width and time-proportional functions for solenoids, relays, indicators, and other DC field devices.

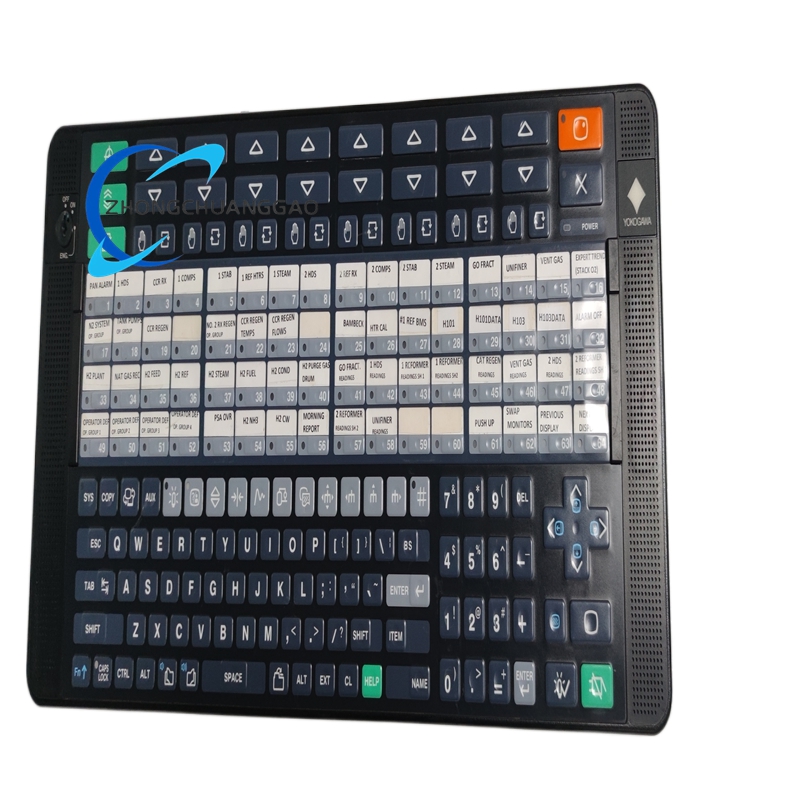

YOKOGAWA AIP831-101

Product Name
YOKOGAWA AIP831-101 operation keyboard
Product Introduction
The Yokogawa AIP831-101 is an operation keyboard for Yokogawa Human Interface Stations. Public supplier documentation describes it as an eight-loop simultaneous operation keyboard. Its primary purpose is to provide rapid access to multiple control loops, setpoint adjustment, mode selection, and alarm acknowledgment in a process control environment.

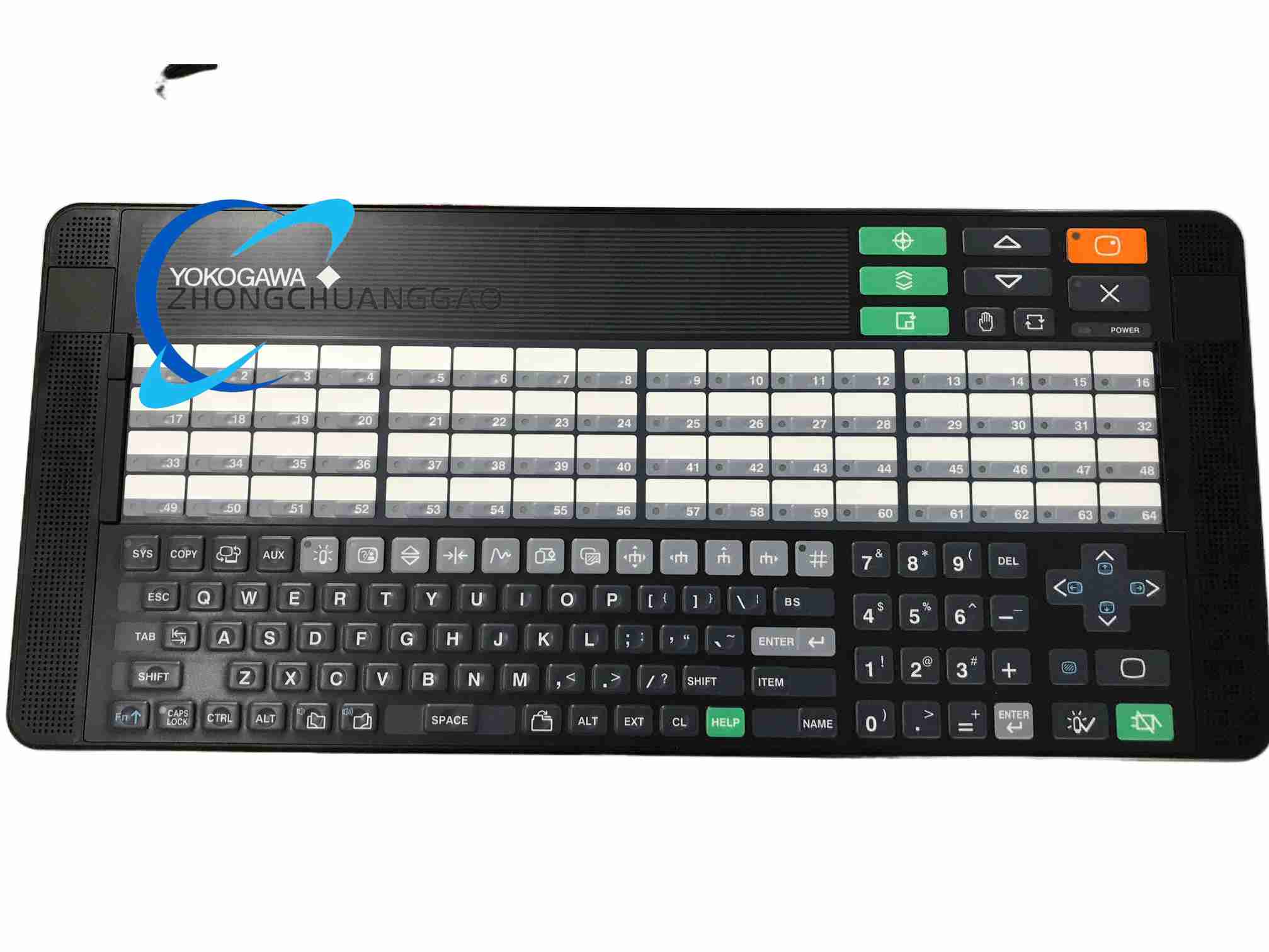

YOKOGAWA AIP830-001

Product Name
YOKOGAWA AIP830-001 single-loop operation keyboard
Product Introduction
The Yokogawa AIP830 is an operation keyboard for single-loop control. The suffix code -001 identifies the specific hardware configuration. It is connected to a desktop Human Interface Station and allows operators to perform loop tuning, mode selection, alarm acknowledgment, and other process operations.

YOKOGAWA AIP571 BUS2

Product Name
YOKOGAWA AIP571 BUS2 Vnet/IP interface module
Product Introduction
The Yokogawa AIP571 is a communication interface module for CENTUM VP and ProSafe-RS systems. The BUS2 designation identifies the second control network port or bus connection. Its role is to connect a control station or processor to the Vnet/IP control network.

YOKOGAWA FX1004-4-3-H

Product Introduction: The FX1004-4-3-H is a 4-channel input, 3-channel output signal converter from Yokogawa's FX1000 series. It accepts universal analog inputs (thermocouple, RTD, voltage, current) and converts them to isolated analog outputs. The "H" designation indicates horizontal mounting orientation. It is used for signal isolation, conversion, and distribution in process control systems where galvanic isolation between input and output is required.

YOKOGAWA SR5300A

Product Introduction: The SR5300A is a 32-channel paper recorder from Yokogawa's SR5000 series, designated as the "A" (Advanced) version. It records process data on standard 100 mm wide chart paper using heated-stylus or dot-matrix recording methods. It supports a wide range of input types including thermocouple, RTD, voltage, current, and pulse signals. The SR5300A is designed for applications requiring a permanent paper record for regulatory compliance and audit purposes.
