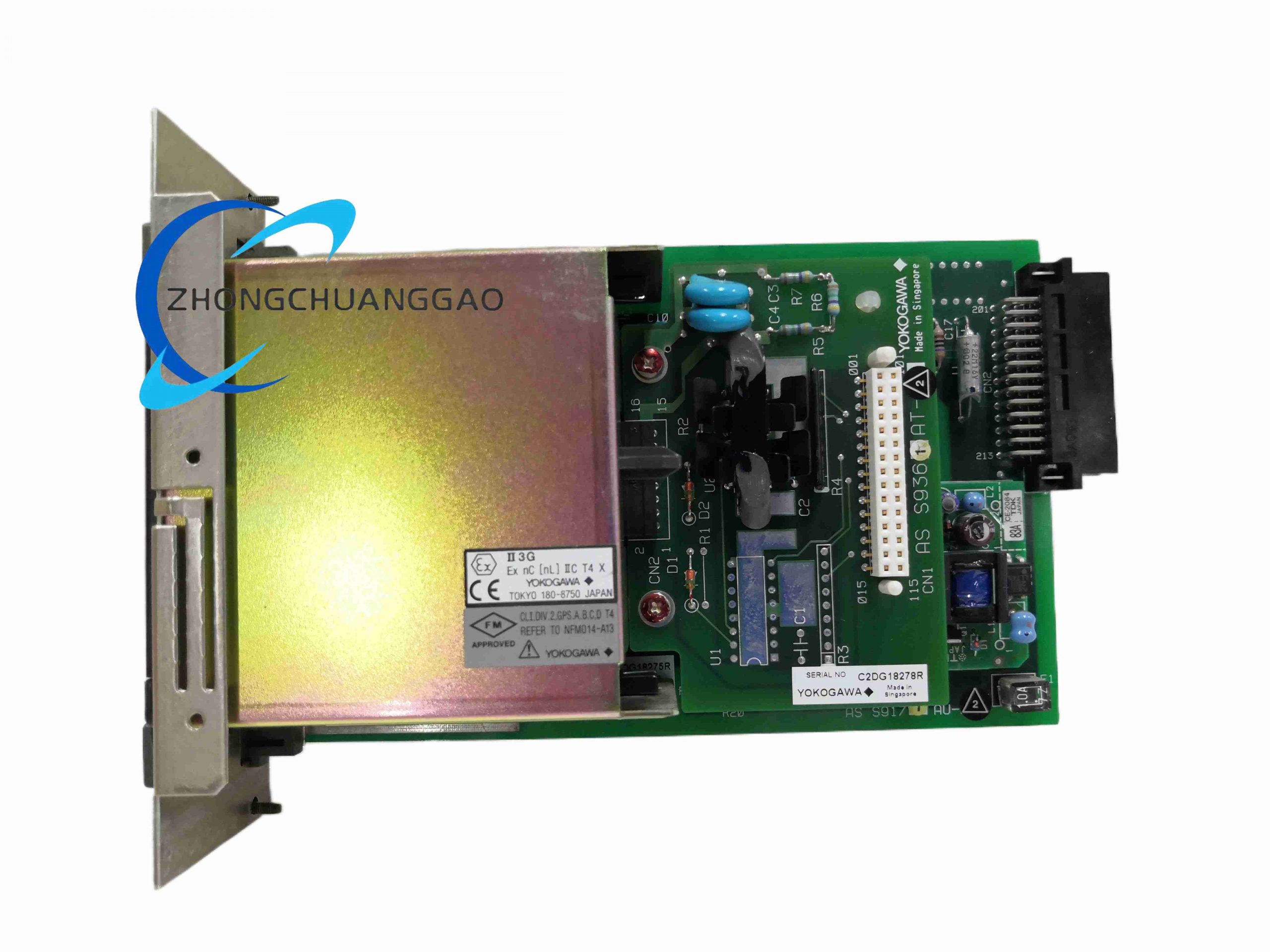

YOKOGAWA AIP571 BUS2 Vnet/IP interface module
Product Introduction
The Yokogawa AIP571 is a communication interface module for CENTUM VP and ProSafe-RS systems. The BUS2 designation identifies the second control network port or bus connection. Its role is to connect a control station or processor to the Vnet/IP control network.
Detailed content
Technical Specifications
- Control network: Vnet/IP
- Physical interface: RJ-45
- Standard: IEEE 802.3
- Transmission speed: 100 Mbps
- Maximum cable length: 100 m per segment
- Compatible Yokogawa hardware: SSC50D, SSC60D, CP451, and related processor bases
- Operating temperature: 0 to 55 °C
- Storage temperature: -20 to 70 °C
- Humidity: 5 to 95% relative humidity, non-condensing
Function Features
- Processor-to-network communication
- Dual-bus connectivity in applicable systems
- High-speed deterministic control network communication
- Link activity and status indication
- Compatible with redundant Vnet/IP configurations where the system supports them
- Industrial EMC and environmental design
Application Scenarios
- CENTUM VP distributed control systems
- ProSafe-RS safety instrumented systems
- Oil and gas production and refining
- Petrochemical plants
- Power generation
- Large-scale process automation
Performance Parameters
- Data rate: 100 Mbps
- Maximum segment length: 100 m
- Deterministic control network operation
- Redundant bus capability depends on the processor and system configuration
Material Composition
- Industrial printed circuit board
- RJ-45 network magnetics and connectors
- Status indicators
- Backplane edge connector
- Metal or industrial module shielding
Structural Features
- Processor base-mounted interface card
- Dedicated Vnet/IP port or ports
- Designated slot installation
- Front or front-panel-accessible network connectors
- Compatible with specific Yokogawa processor and base unit combinations
Working Principle
The module converts internal control-station data into Vnet/IP Ethernet frames and transmits them to other control stations, I/O nodes, and engineering or operation stations. It monitors link status and transfers process control data across the dedicated control network. In a dual-bus system, BUS1 and BUS2 provide separate physical network paths.
Installation Requirements
- Install only in the designated AIP571 slot
- Use the supported processor and base unit combination
- Use Cat5e or Cat6 shielded cables for short, controlled segments where permitted
- Follow Yokogawa network topology and distance rules
- Verify system and firmware compatibility before installation
- Use ESD protection when inserting the module
Usage Precautions
- AIP571 modules with different functions and network types may share the same base name; confirm the full part number.
- Do not connect office or general-purpose switches without verifying system compatibility.
- Verify cable length and network termination requirements.
- Redundancy behavior depends on the complete system architecture.
- Backup configuration data before replacing network hardware.
