Technical Specifications​

Output channels: 64.

Output type: transistor contact.

Isolation: grouped common, one common per 16 channels.

Output rating: 30 VDC, 100 mA per channel for resistive or inductive load.

Response time: 16 ms or less.

Pulse-width range: 8 ms to 7200 s.

Pulse-width resolution: 8 ms plus maximum 1 ms ON/OFF delay.

Functions: status output, pulse-width output, time-proportional output.

Current consumption: 800 mA at 5 VDC.

External connection: dedicated KS9 cable/terminal equipment.

Suffix meaning: -P indicates pulse/time-proportional function; -00 indicates basic type.

Weight: approximately 0.30 kg.

Functional Features​

High-density 64-point digital output in one module.

Group isolation every 16 channels for improved noise separation.

Pulse-width control for timing, dosing, and actuator pulsing.

Time-proportional output for heating or analog-like switching control.

Fast transistor switching compared with mechanical relays.

Direct integration with Yokogawa ST7 system configuration.

Application Scenarios​

Process plant solenoid and valve control.

Indicator and alarm annunciator panels.

Packaging-machine discrete actuation.

Time-proportional heaters and dosing valves.

CENTUM/ST7 retrofit and expansion projects.

Performance Parameters​

Per-channel load: 30 VDC maximum, 100 mA maximum.

ON/OFF response: within 16 ms including delay allowance.

Pulse programming: 8 ms minimum width, resolution 8 ms.

Time-proportional cycle: configurable up to 7200 s per pulse program.

5 V bus load: 800 mA maximum per module.

Material Composition​

Industrial FR4 module PCB.

Transistor output semiconductors.

Insulated molded module housing.

Gold or compliant contact connector system according to Yokogawa ST7 standard.

KS9-compatible terminal interface components.

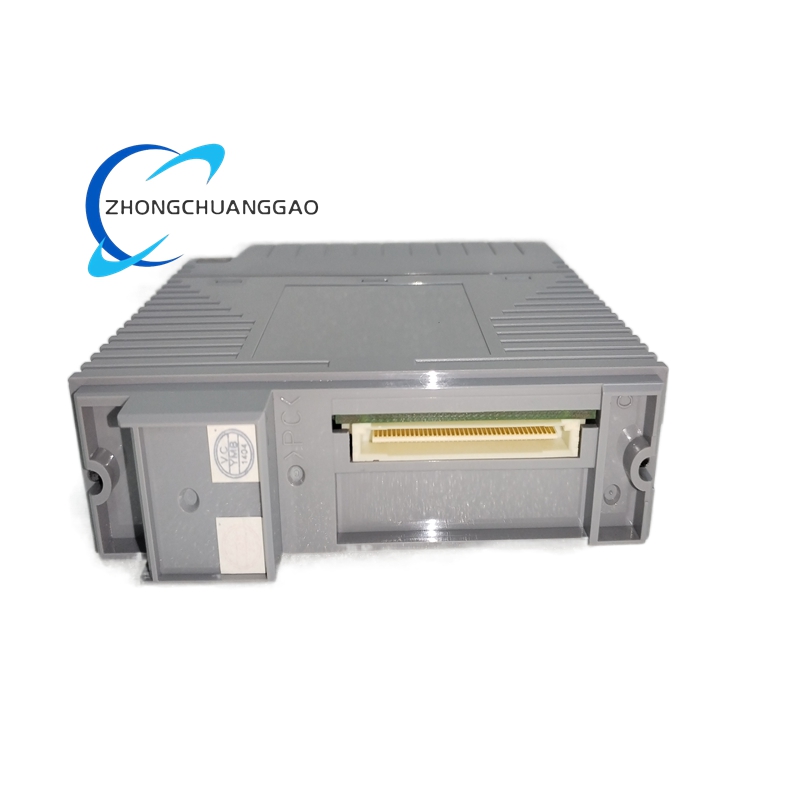

Structural Characteristics​

Compact digital output module form factor.

64 output points arranged in four 16-channel commons.

Front/module connector for KS9 system cable.

Status and output drive circuits segregated by common group.

Lightweight 0.30 kg profile for dense cabinet installation.

Working Principle​

The ST7 controller sends output state, pulse-width, or time-proportional commands to ADV569-P00. The module drives transistor output stages according to each channel’s common group and load rating. Pulse and proportional timing circuits generate controlled ON intervals, and isolated grouping prevents a single field fault from affecting all 64 outputs.

Installation Requirements​

Install in the designated ST7-compatible slot or terminal configuration.

Use the dedicated KS9 cable/terminal equipment.

Confirm 5 VDC backplane capacity for 800 mA module consumption.

Group field loads by 16-channel common voltage.

Keep inductive loads within 30 VDC and 100 mA per channel.

Usage Precautions​

Never exceed 30 VDC or 100 mA per output channel.

Install suppression diodes for DC relay, solenoid, and inductive loads.

Do not mix different output voltages within the same 16-channel common.

Handle the module with ESD precautions.

Verify ST7 system compatibility and firmware support before replacement.
