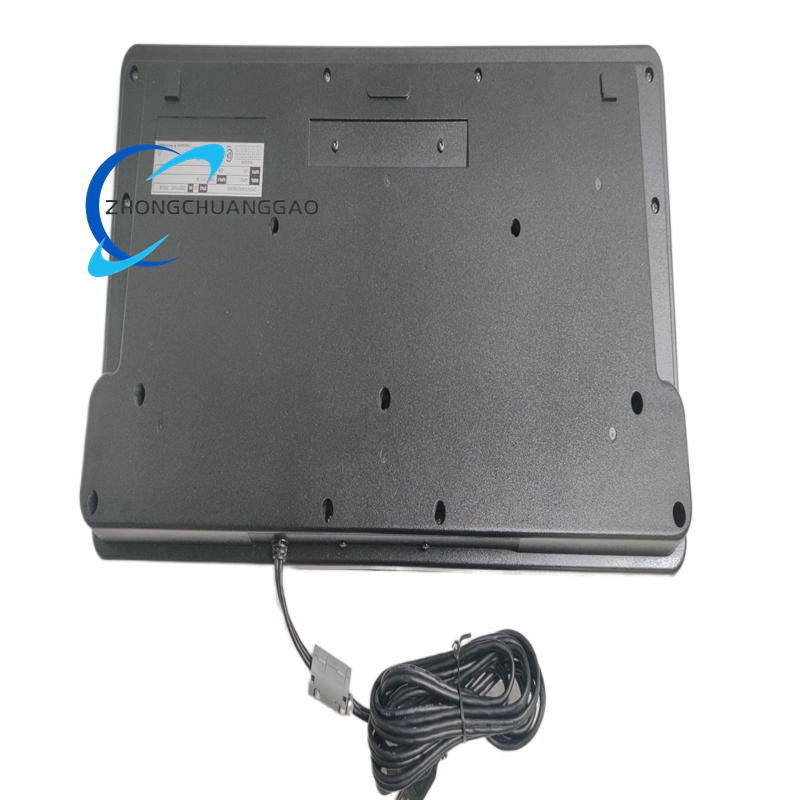

YOKOGAWA AIP831-101 operation keyboard
Product Introduction
The Yokogawa AIP831-101 is an operation keyboard for Yokogawa Human Interface Stations. Public supplier documentation describes it as an eight-loop simultaneous operation keyboard. Its primary purpose is to provide rapid access to multiple control loops, setpoint adjustment, mode selection, and alarm acknowledgment in a process control environment.
Detailed content
Technical Specifications
- Product family: AIP831 operation keyboard
- Control capacity indicated by suppliers: eight-loop simultaneous operation
- PC interface: two USB Type-A connectors
- Keyboard interface: USB 2.0 full-speed, bus-powered
- Audio interface: USB 1.1 full-speed, bus-powered
- Input voltage: 5 V DC ±5%
- Maximum consumption current: 1 A
- Chassis color: black, equivalent to Munsell N1.5
- Operating temperature: 5 to 40 °C
- Storage and transportation temperature: -20 to 60 °C
- Humidity: 20 to 80% relative humidity, non-condensing
- Safety classification: IEC 61010-1, installation category I
- Exact dimensions and weight: not found in the available public specification
Function Features
- Multiple-loop operation through dedicated control keys
- Setpoint and process parameter adjustment
- Control-mode selection where provided by the suffix configuration
- Alarm acknowledgment
- Integrated USB speaker or audio function
- Dedicated process operation keys
- USB bus-powered connection to the HIS
Application Scenarios
- Multi-loop process control rooms
- Oil refining and petrochemical plants
- Power generation
- Pharmaceutical batch processing
- Continuous process industries
- CENTUM VP and compatible Yokogawa HIS environments
Performance Parameters
The exact key response time, MTBF, and control network latency for this model were not found in publicly available verified documentation.
Material Composition
- Industrial flat keyboard housing
- Dedicated process and operation keys
- Internal USB control and audio circuits
- Dual USB Type-A connectors
- Optional mounting hardware
- Internal speaker or sound circuit
Structural Features
- Flat desktop operator keyboard
- Eight-loop operation design according to supplier documentation
- Dedicated key groups for process control
- Two USB connectors for keyboard and audio functions
- Compatible with the supported Yokogawa HIS configuration
Working Principle
The operator selects a loop or uses dedicated keys to adjust setpoints and control modes. Key commands are transmitted over USB to the HIS, which updates the process display and sends the corresponding commands through the control system. Audio signals are transmitted over the separate USB audio channel to the integrated speaker.
Installation Requirements
- Connect both USB connectors directly to the supported HIS personal computer.
- Install the keyboard on a stable desktop or approved mounting surface.
- Maintain the specified operating temperature and humidity.
- Verify the suffix configuration and compatibility with the HIS software.
- Use the correct documentation and licensing or option configuration for the system.
Usage Precautions
- The AIP831 hardware specification and supplier descriptions of an eight-loop keyboard share the same model, so the suffix and HIS configuration must be confirmed.
- Do not force USB connectors into incompatible ports.
- Keep liquids away from the keyboard.
- Verify software and hardware compatibility before commissioning.
- Replace the unit only with the same order code and compatible revision where required.
