Bently 3500/33 149986-01Channel Relay Module – High-density SIL 2 capable

Product Name: 3500/33 16-Channel Relay Module – High-density, SIL 2 capable
Product Introduction: Sixteen independent Form-C relays in one full-height slot for high-density trip and alarm applications.
Technical Specifications:
  • Channels: 16 Form-C relays
  • Contact Rating: 5 A @ 250 VAC
  • Operate Time: <10 ms
  • SIL Rating: SIL 2 / PL-d per IEC 61508
  • Power: 8 W

Bently 3500/32-A01-B01 Channel Relay Module – Custom configuration

Product Name: 3500/32 4-Channel Relay Module – Custom configuration, isolated I/O, 10 ms filter
Product Introduction: Factory-customised relay module with isolated I/O and 10 ms contact debounce filter for noisy environments.
Technical Specifications:
  • Configuration: A01-B01
  • Isolation: Yes
  • Filter: 10 ms

Bently 3500/32 Channel Relay Module

Technical Specifications:
  • Channels: 4 independent Form-C relays
  • Contact Rating: 5 A @ 250 VAC, 5 A @ 30 VDC
  • Operate Time: <10 ms
  • Isolation: 1,500 V coil-to-contact
  • Power: 24 VDC from rack, 5 W
  • Operating Temperature: –30 °C to +65 °C
  • Approvals: CE, UL, SIL 2 capable

Bently 3500/25-01-01-00 Keyphasor Module

Product Introduction: Standard-configuration Keyphasor module with 1 m total probe + extension length for general-purpose installations.
Technical Specifications:
  • System Length: 1.0 m
  • Certifications: None

Bently 3500/25 149369-01 Enhanced Keyphasor Module

Technical Specifications:
  • Part Number: 149369-01
  • Output: 4-20 mA speed loop
  • Operating Temperature: –40 °C to +85 °C
  • Response Time: <1 ms
  • Resolution: 0.1° phase
  • Power: 3.2 W
  • Approvals: ATEX, IECEx, CSA

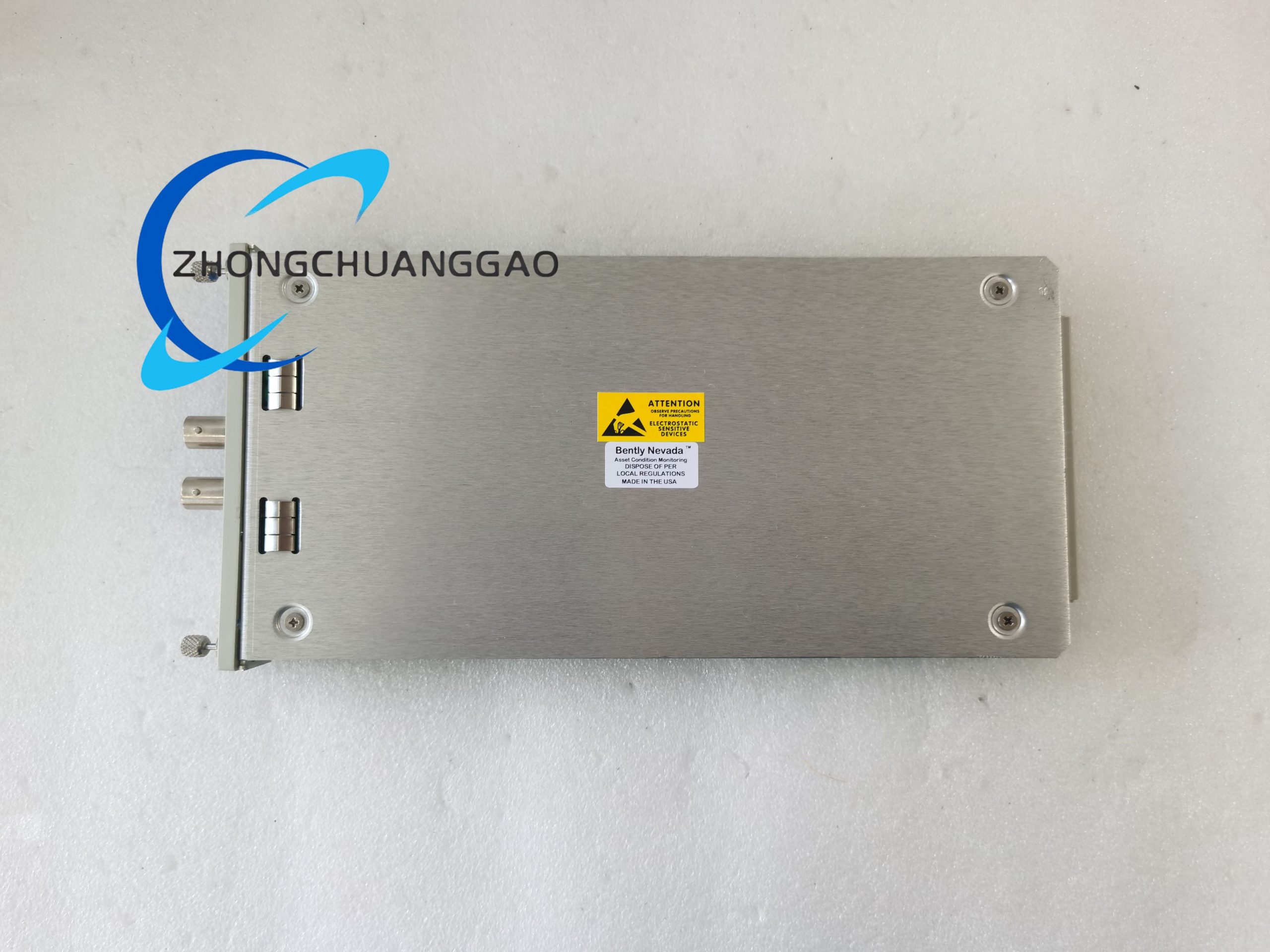

Bently 3500/25 125792-01 Enhanced Keyphasor Module

Technical Specifications:
  • Part Number: 125792-01
  • I/O Type: Isolated
  • Input Range: +5 V to –11 V
  • Frequency Range: 0.017 – 19,999 RPM
  • Accuracy: ±0.05 %
  • Resolution: 0.1 RPM
  • Power: 3.2 W
  • Operating Temperature: –30 °C to +65 °C
  • Approvals: ATEX, IECEx, CSA, UL

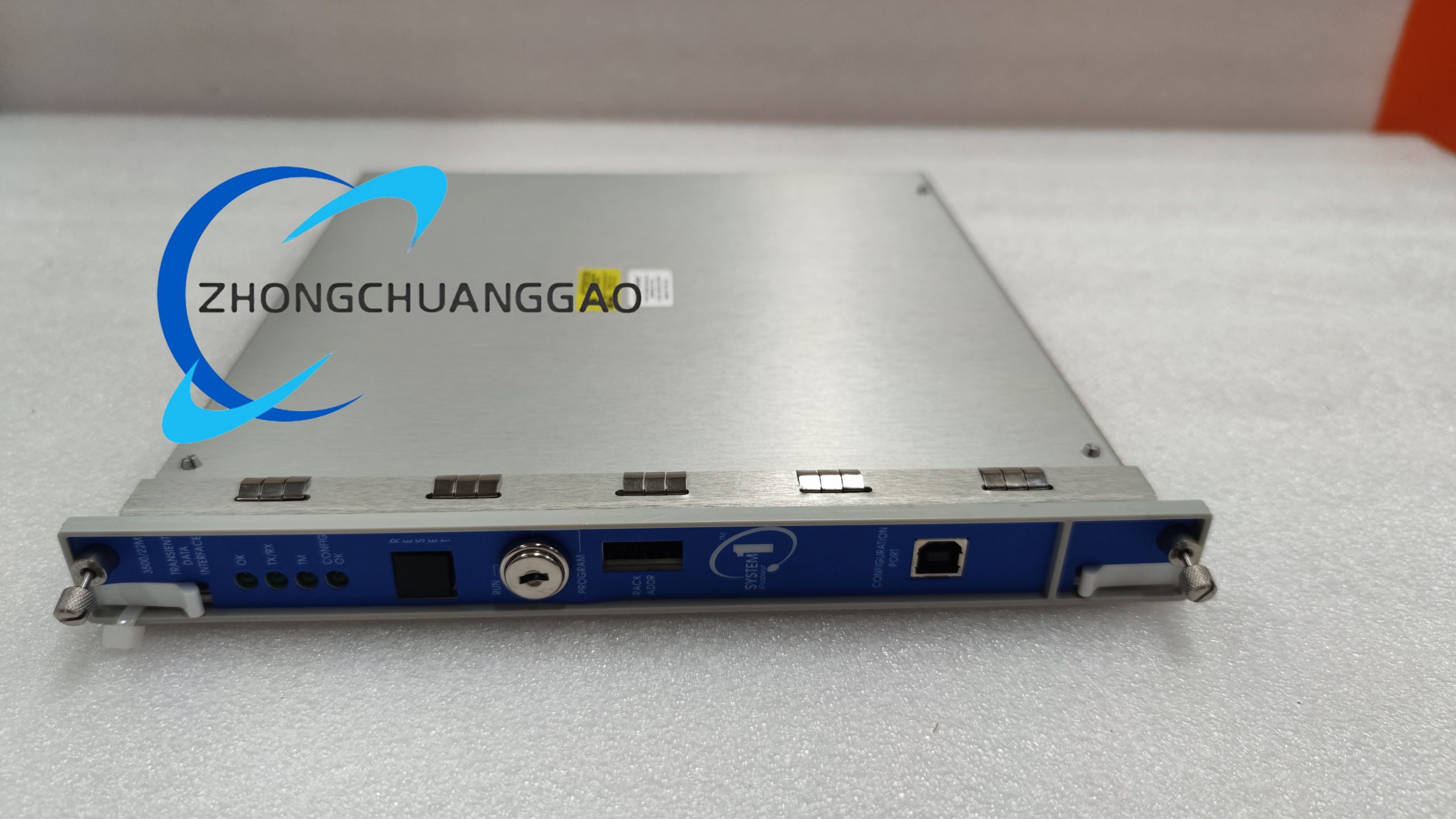

Bently 3500/22M-01-01-01 Enhanced Transient Data Interface

Product Introduction: Factory-configured 3500/22M with 1 m total probe + extension length for standard installations. Delivers 102.4 kHz sampling and global agency approvals.
Technical Specifications:
  • System Length: 1.0 m
  • Sampling Rate: 102.4 kHz
  • Channels: 2 dynamic + 2 speed/tach
  • Certifications: None (general-purpose)

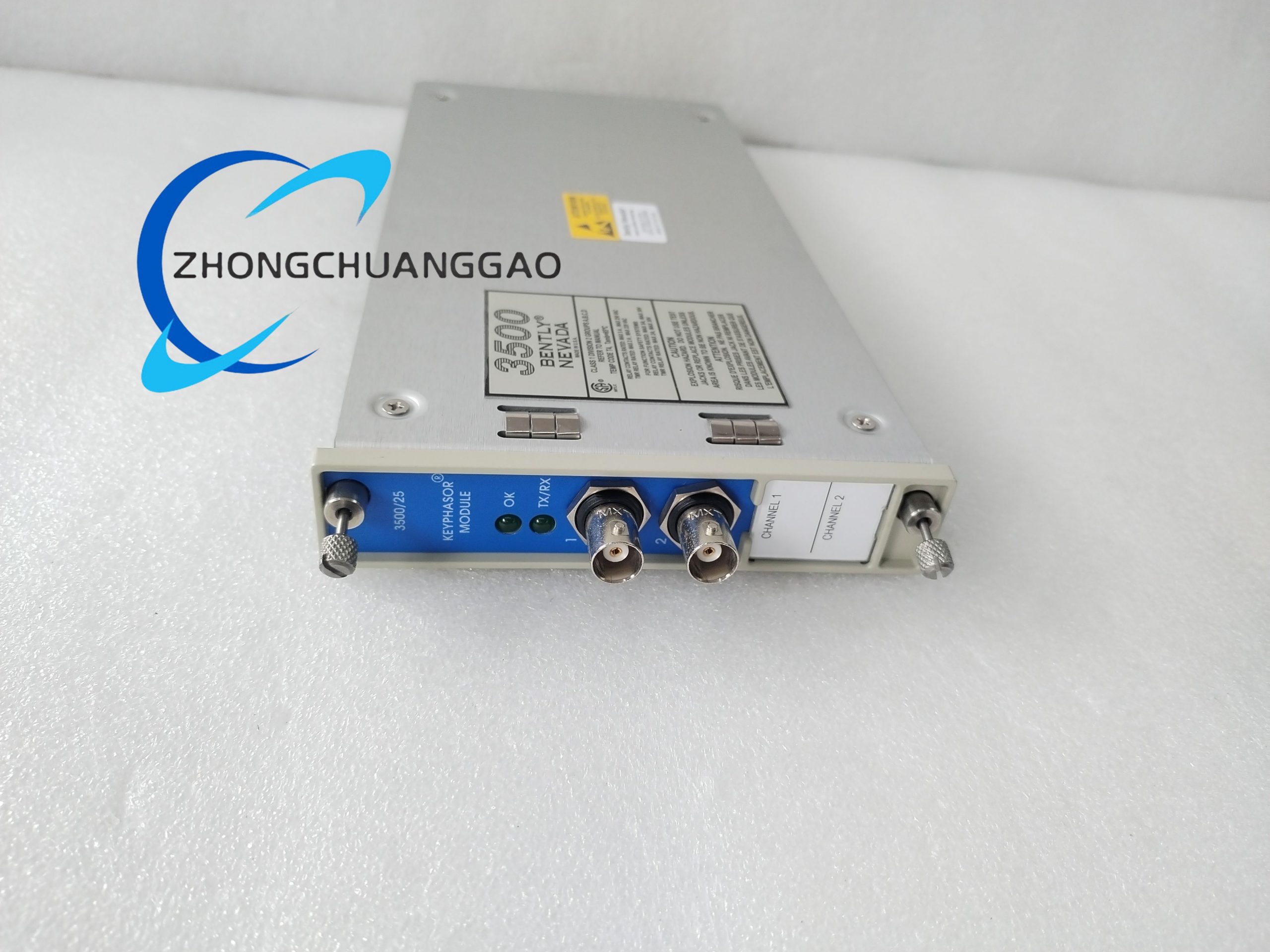

Bently 3500/25 Enhanced Keyphasor Module

Technical Specifications:
  • Channels: 2 (expandable to 8 in paired configuration)
  • Input Types: Eddy-current probes, magnetic pickups, optical sensors
  • Input Range:
    • Non-isolated I/O: +0.8 V to –21 V
    • Isolated I/O: +5 V to –11 V
    • Passive mag pickup: >200 rpm (3.3 Hz) minimum
  • Frequency Range: 0.017 – 19,999 RPM
  • Accuracy: ±0.05 % of reading

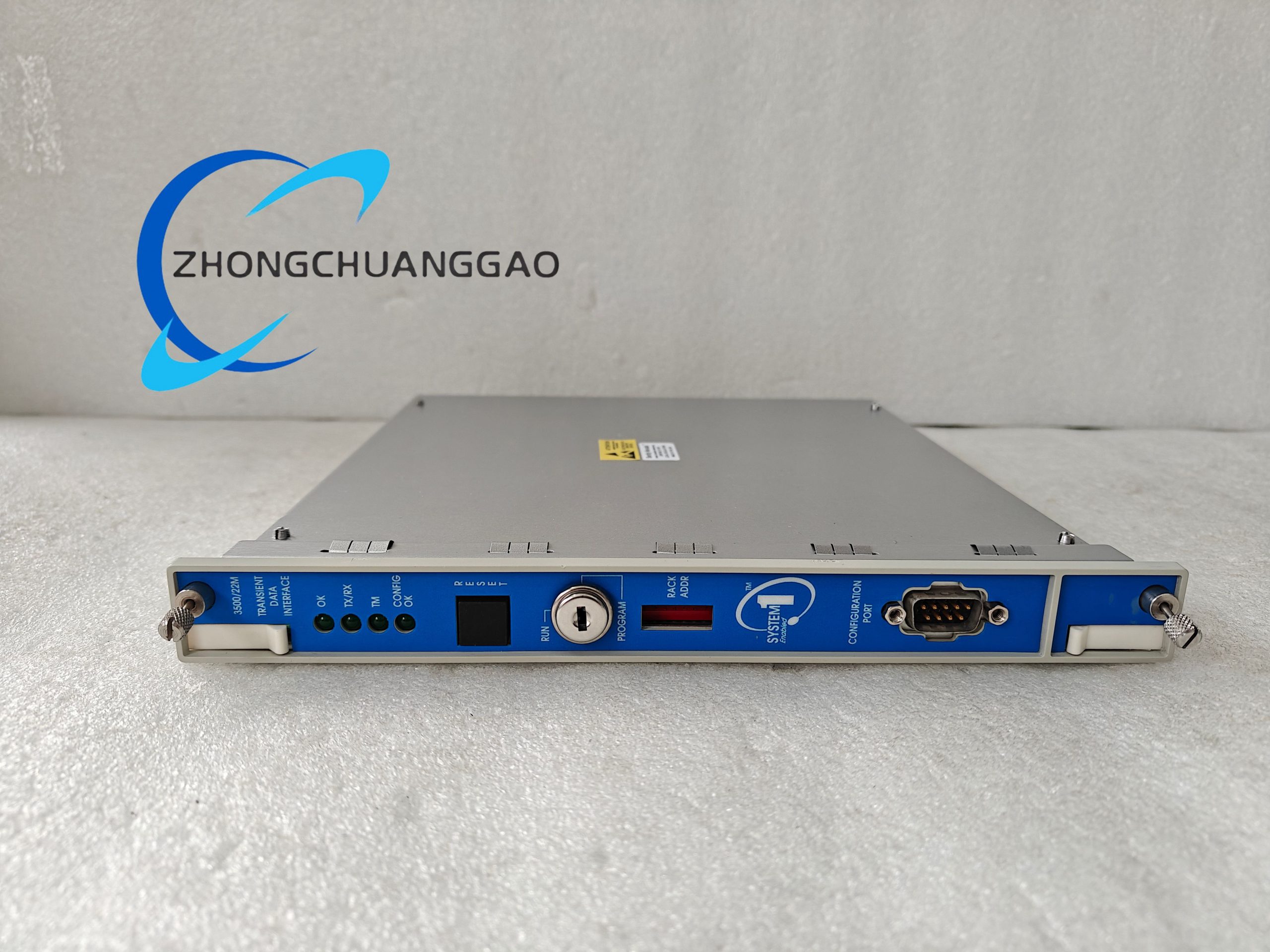

Bently 3500/22M 13860701 102.4 kHz dual-channel general-purpose (legacy suffix style)

Technical Specifications:

  • Input Channels: Supports up to 4 dual-channel inputs for vibration or process signals.
  • Sampling Rate: High-speed sampling up to 100 kHz per channel for precise transient capture.
  • Dynamic Range: 100 dB for accurate measurement across varying signal amplitudes.
  • Frequency Response: 0–10 kHz (adjustable per application).
  • Data Storage: Onboard memory for storing transient waveforms and event-triggered data.
  • Communication Protocol: Compatible with Ethernet, Modbus, and OPC UA for integration with plant control systems.
  • Environmental Rating: Operates in temperatures from -20°C to +60°C (-4°F to +140°F) with IP20 protection.
  • Power Requirements: 24 VDC ±10%, 50 W maximum.
