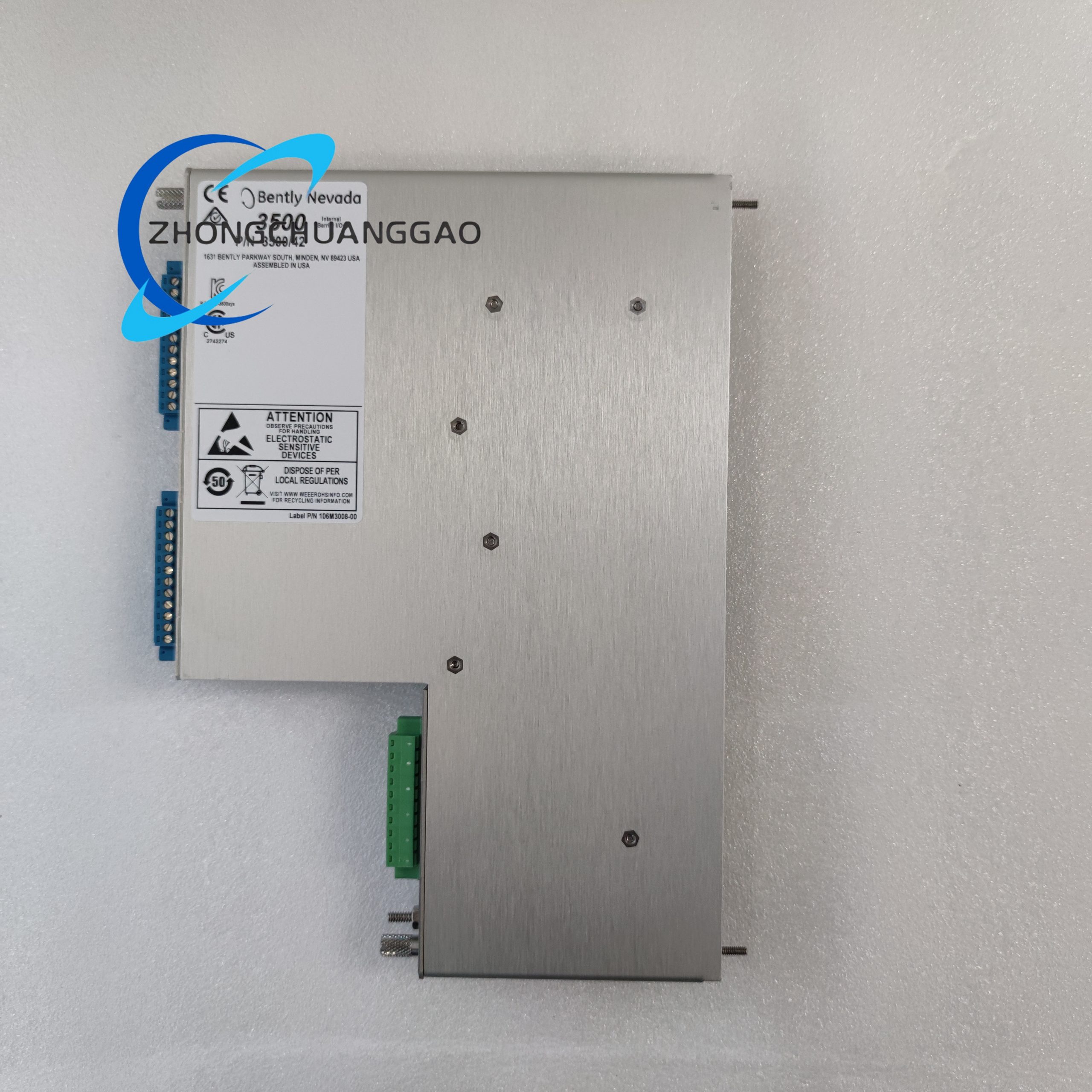

Bently Nevada 3500/72M 135489-01 Machine Train Monitor Module

Technical Specifications:
  • Channels: 8 dynamic, 2 speed, 2 analog 4-20 mA
  • Frequency Range: 0.1 Hz – 20 kHz
  • Measurement Types: Overall, spectrum, orbit, trend, phase
  • Signal Processing: Real-time FFT, envelope, cepstrum
  • Alarms: Multivariable, train logic, load-based
  • Isolation: 500 V
  • Power: 10 W
  • Operating Temperature: 0 °C to +65 °C

Bently Nevada 3500/70M 135473-01 Reciprocating Compressor Monitor Module

Technical Specifications:
  • Channels: 8 acceleration, 2 pressure, 2 Keyphasor®, 2 auxiliary
  • Frequency Range: 0.5 Hz – 10 kHz
  • Sampling: 51.2 kHz simultaneous
  • Measurement Types: Peak, RMS, crank-angle domain, p-V diagram
  • Alarms: Valve leakage, rider-band wear, liquid slug, overspeed
  • Isolation: 500 V
  • Power: 12 W
  • Operating Temperature: 0 °C to +65 °C

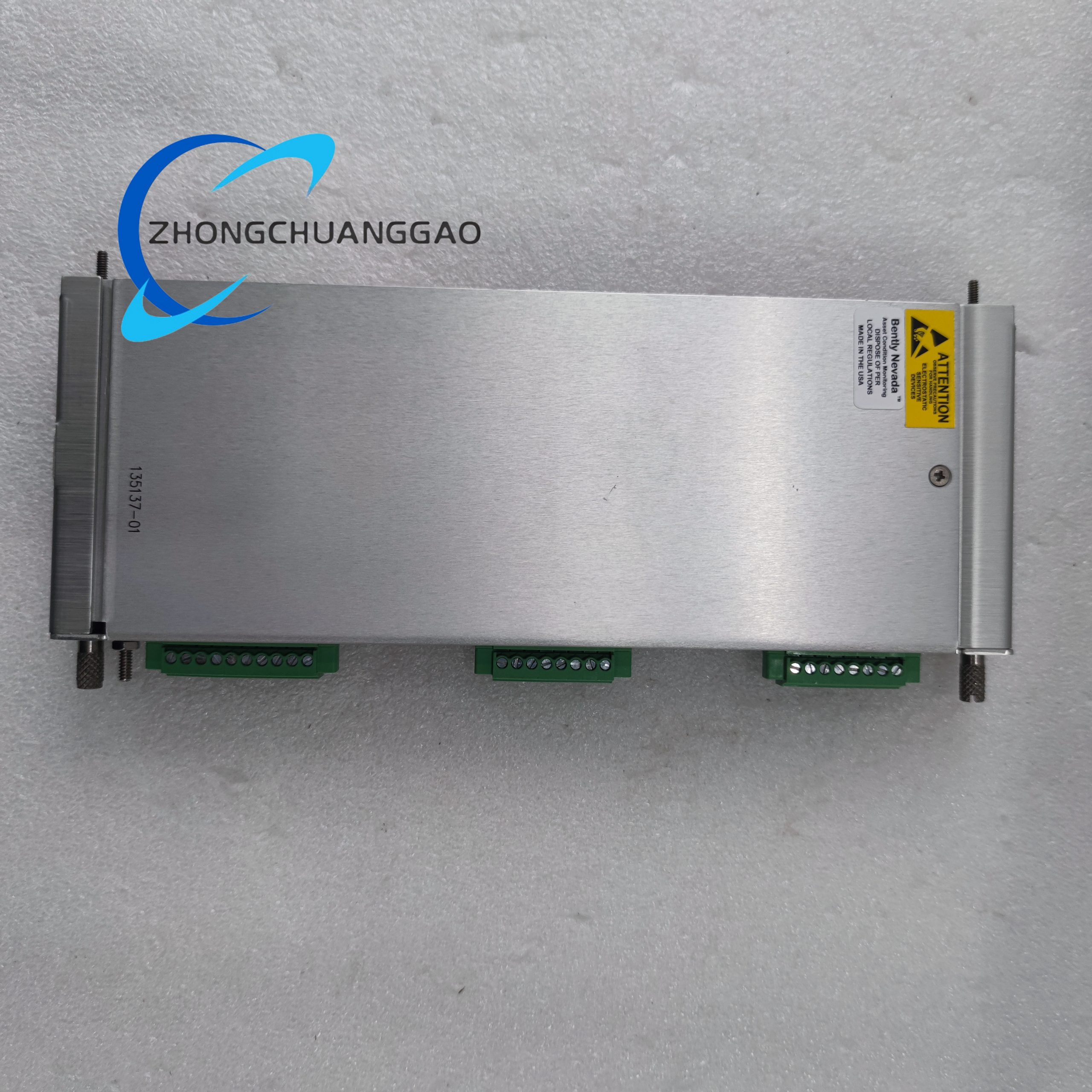

Bently Nevada 3500/60 135137-01 Temperature Monitor Module

Technical Specifications:
  • Input Types: 3-wire RTD Pt100, thermocouple J, K, E, T, N
  • Accuracy: ±0.5 °C for RTD, ±1 °C for TC
  • Resolution: 0.1 °C
  • Update Rate: 1 s per channel
  • Alarms: Two level-plus-rate-of-change per channel
  • Outputs: Optional 4-20 mA isolated, 500 Ω max
  • Isolation: 300 V channel-to-channel
  • Power: 5 W
  • Operating Temperature: 0 °C to +65 °C

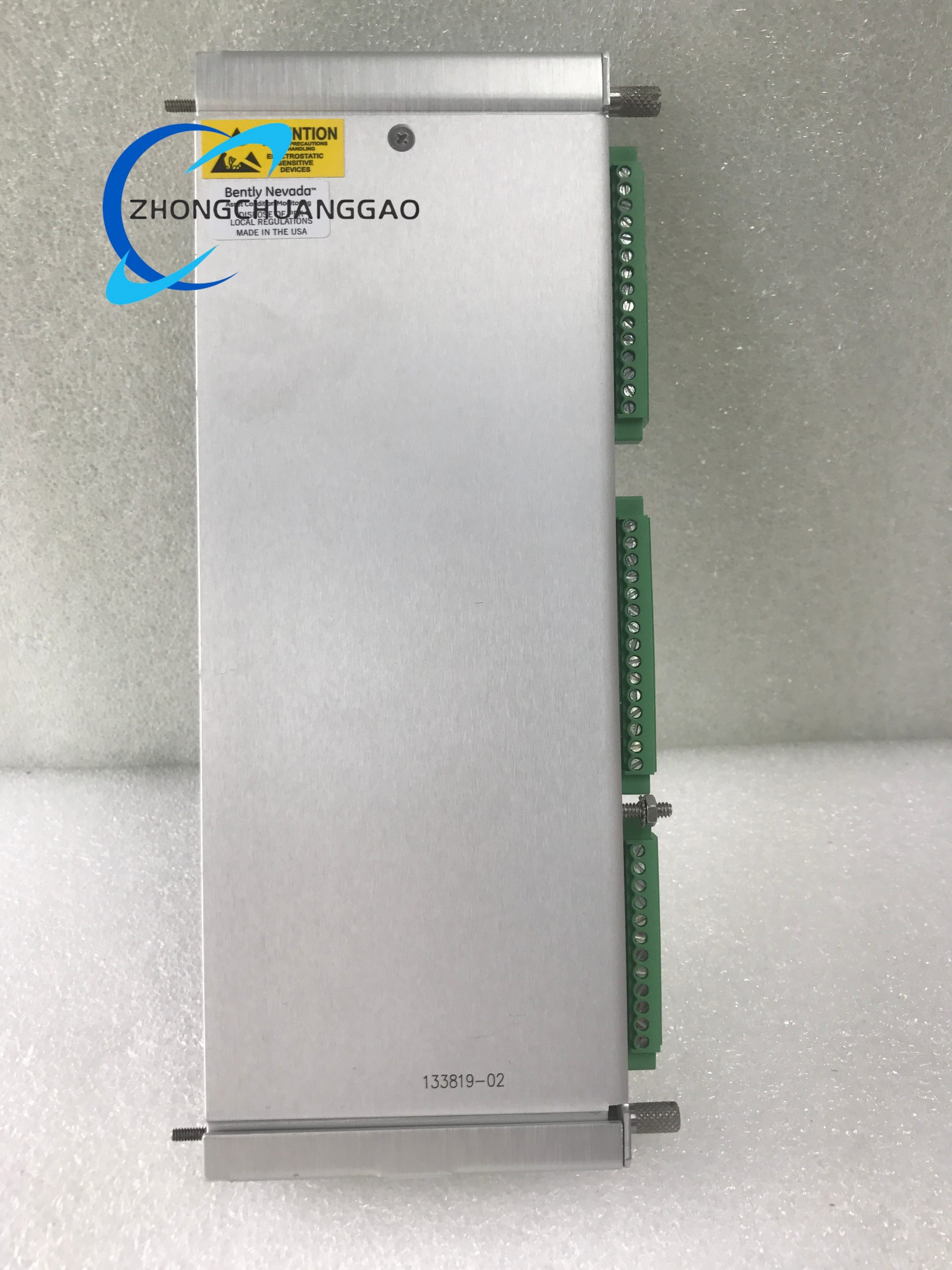

Bently Nevada 3500/92 133819-02 Enhanced Communication Gateway Module

Technical Specifications:
  • Serial Ports: RS485, RS232 isolated
  • Register Space: 1,024 user-mapped parameters
  • Protocols: Modbus RTU/TCP, OPC UA, BN proprietary, BACnet
  • Ethernet: Dual 10/100 ports (switch or redundant)
  • Power: 10 W
  • Operating Temperature: –40 °C to +70 °C
  • Weight: 1.3 kg

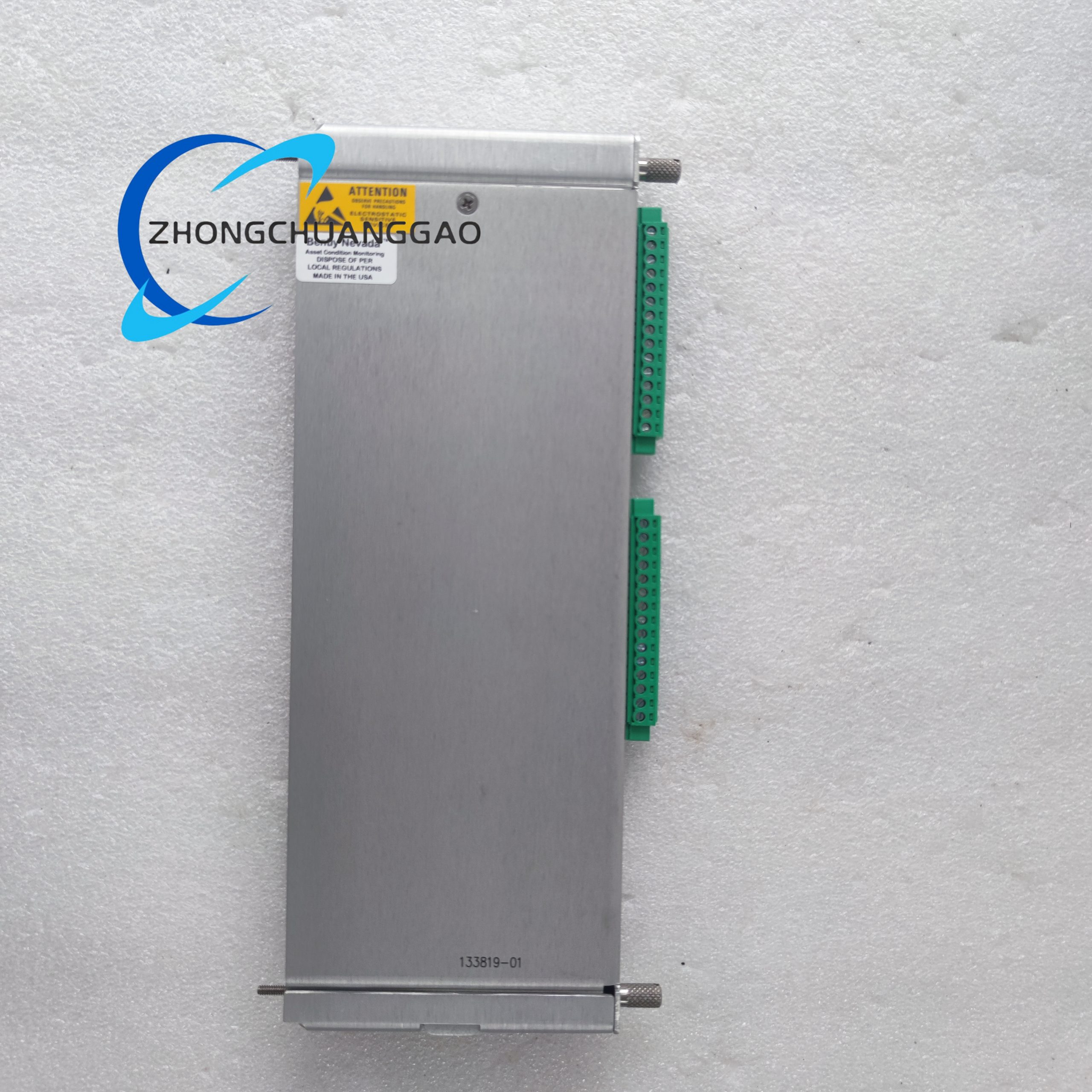

Bently 133819-01 Standard Communication Gateway Module

Technical Specifications:
  • Ethernet: 10/100BASE-T RJ45
  • Protocols: Modbus TCP, OPC DA, OPC UA, BACnet/IP
  • Serial Ports: None
  • Modbus Registers: 256 fixed map
  • Power: 8 W
  • Operating Temperature: –40 °C to +70 °C
  • Weight: 1.2 kg

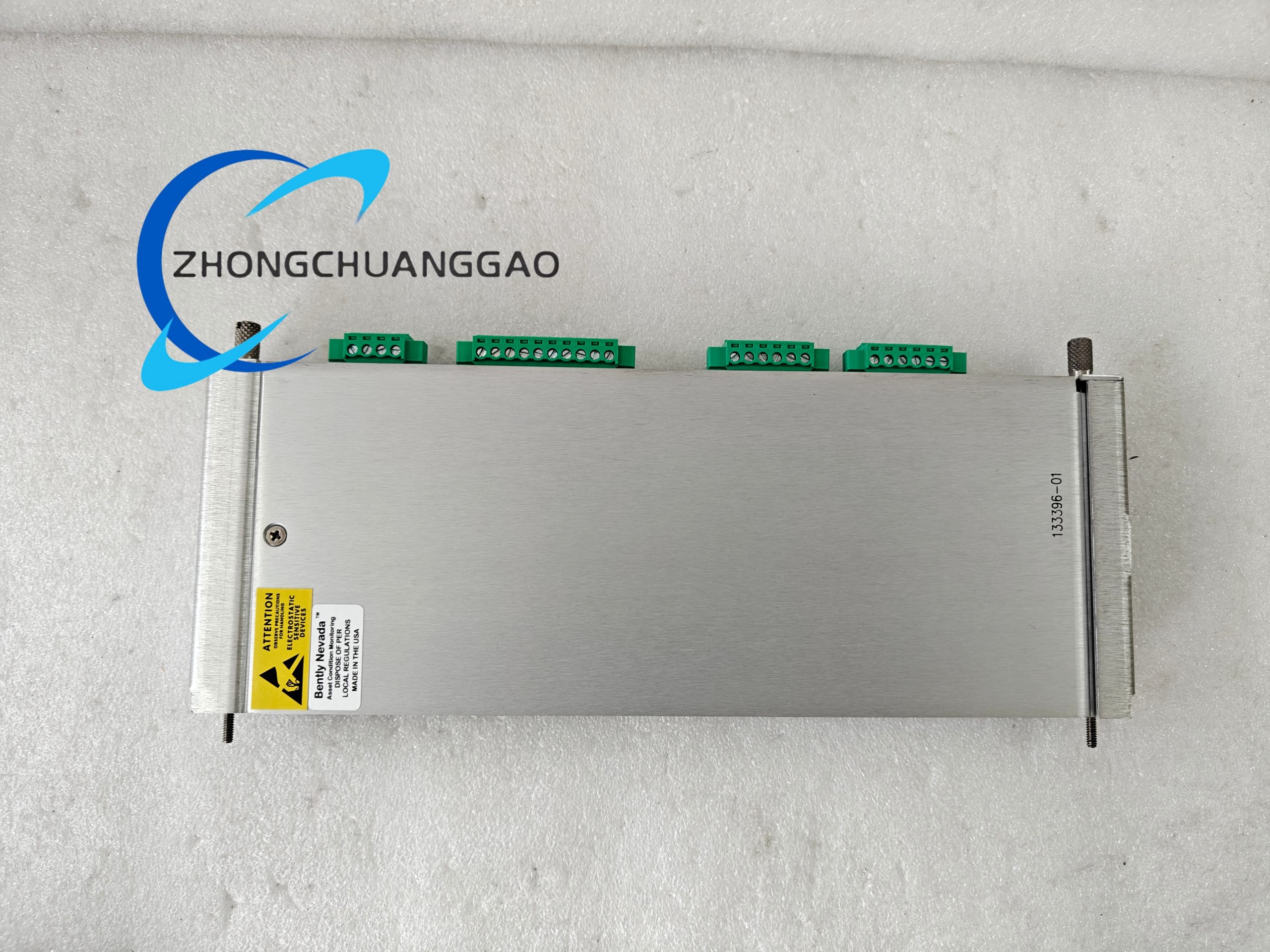

Bently 133396-01 Keyphasor® Signal Conditioning Module

Technical Specifications:
  • Input Types: Magnetic pickup, eddy-current probe, optical sensor, TTL
  • Frequency Range: 0.1 Hz – 50 kHz
  • Trigger Level: Automatic or manual 0–25 V
  • Output Pulse: TTL, 5 µs minimum width, <50 ns jitter
  • Accuracy: ±0.05 % of reading
  • Isolation: 500 V input-to-output
  • Power: 6 W from rack
  • Operating Temperature: 0 °C to +65 °C
  • Dimensions: Standard 3500 full-height slot
  • Weight: 0.5 kg

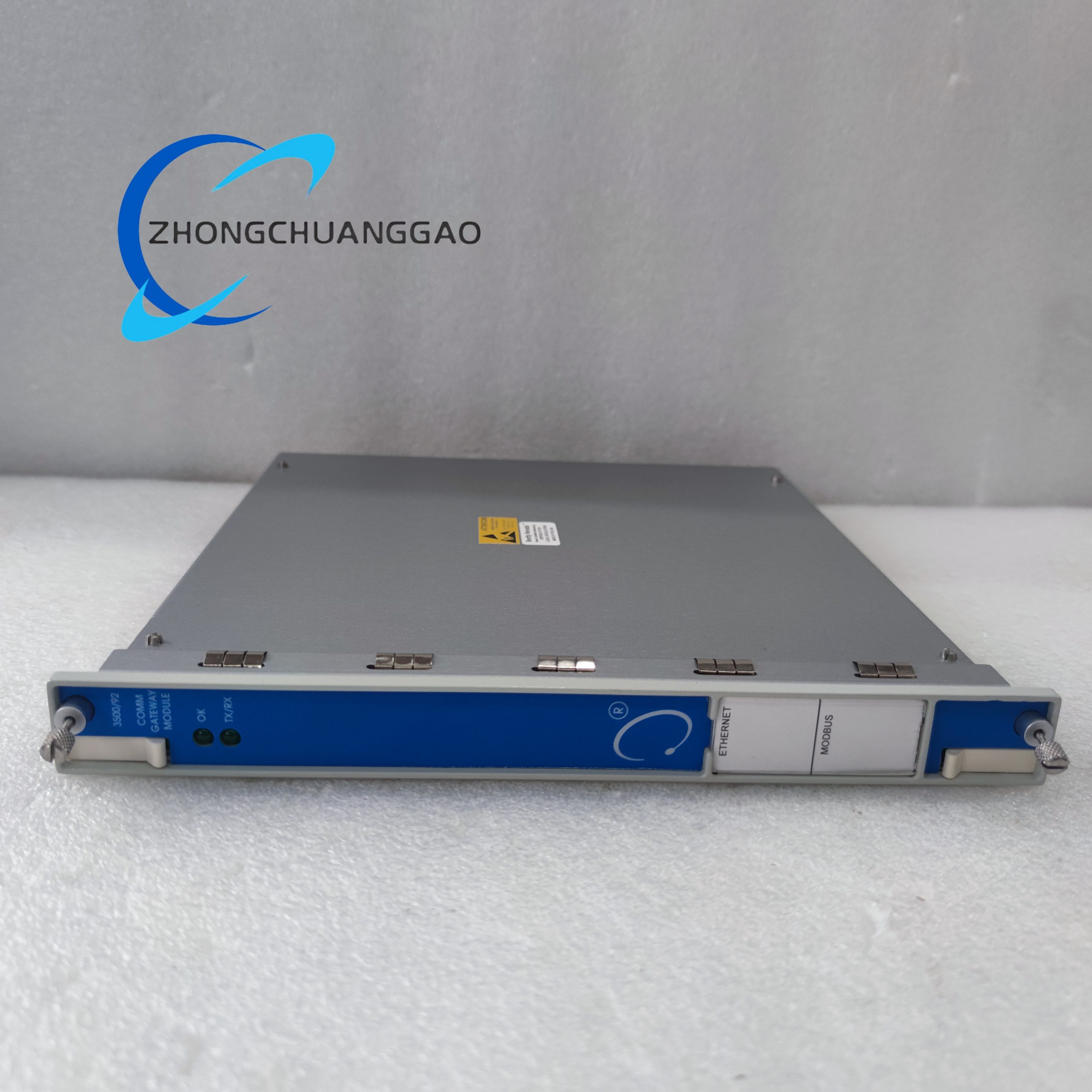

Bently Nevada 3500/92 Modbus RS485 I/O Communication Gateway Module

Technical Specifications:
  • Protocols: Modbus RTU, Modbus TCP/IP, BACnet, OPC server option
  • Serial Ports: RS232 / RS422 / RS485 isolated, configurable 1,200–230,400 baud
  • Ethernet: 10/100BASE-T RJ45, auto-MDIX
  • Modbus Capacity: 32 slaves, 256 registers, 64 I/O points
  • Cable Distance: RS485 1,200 m at 38,400 baud
  • Power: 24 VDC from rack backplane, 10 W max
  • Isolation: 500 V channel-to-channel and channel-to-ground
  • Operating Temperature: –40 °C to +70 °C
  • Protection: IP67 front when door closed
  • Dimensions: 230 × 89 × 32 mm
  • Weight: 1.36 kg

Bently Nevada 3500/15 Low-Voltage DC Power Supply Module

Technical Specifications:
  • Input Voltage:
    • AC: 85–132 VAC (low) or 175–264 VAC (high), 47–440 Hz
    • DC: 20–30 VDC (low) or 88–140 VDC (High)
  • Output Voltage: +24 VDC @ 2.5 A, –24 VDC @ 2.5 A
  • Power Consumption: <50 W
  • Hold-up Time: 20 ms at full load
  • Efficiency: 85 %
  • Protection: Over-voltage, over-current, thermal shutdown, fuse (01720045)
  • Operating Temperature: –30 °C to +65 °C
  • Storage Temperature: –40 °C to +85 °C
  • Humidity: 5 % to 95 % non-condensing
  • Dimensions: 120.7 × 50.8 × 251.5 mm
  • Weight: 1.39 kg
  • Agency Approvals: CE, UL, ATEX option

Bently Nevada 84510-50 Accelerometer Cable Assembly

Technical Specifications:
  • Length: 50 ft (15.2 m)
  • Conductors: 3 × 20 AWG, tinned copper
  • Shield: 95 % tinned copper braid, overall foil
  • Jacket: Oil-resistant thermoplastic elastomer, black
  • Temperature: –40 °C to +125 °C
  • Bend Radius: 5 × OD

Bently Nevada 30130-040-00-00 3300 XL 8 mm Proximitor

Technical Specifications:
  • Probe Compatibility: 3300 XL 8 mm, 1 m or 5 m system length
  • Supply: –24 VDC, 12 mA
  • Output: –2 V to –18 V linear
  • Frequency Response: 0 – 10 kHz
  • Temperature: –35 °C to +85 °C
  • Housing: Cast aluminum, DIN rail or panel mount
