Kollmorgen AHR142C6-88S

Product Name:​ AKM-derived or Special-Option Rotary Servo Motor (AHR prefix = special/high-performance variant)
Introduction:​ "AHR" indicates a co-engineered or special-build permanent-magnet motor (often AKM platform with special stack, bearing, or washdown treatment). 142 = frame/stator length class, C6 = winding/voltage class, 88S = shaft/feedback/seal special.

Kollmorgen S20660-CNSL

Product Name:​ SERVOSTAR 200 (S2) Servo Drive, 60 A class (legacy)
Introduction:​ Older-generation S200/SERVOSTAR 200 digital drive, "60" = 60 A peak/continuous class, "CNSL" = firmware/I/O/connector configuration. Used with brushless Kollmorgen motors in early 2000s automation.

Kollmorgen AKD-M00607-MCE

Product Name:​ AKD® Servo Drive, Modbus/TCP Motion Variant, 6 A, 480 VAC class
Family:​ AKD Series (M = Multi-protocol/Motion controller option)
Introduction:​ High-dynamic Ethernet servo drive with integrated motion controller. "006" = 6 A continuous, "07" = 480 VAC input (240/480 VAC mains), "M" = AKD-M (built-in motion programming, Modbus TCP and Ethernet/IP capable), "CE" = standard I/O and connectivity.

Kollmorgen CR10704

Product Name:​ Kollmorgen Cable / Connector Assembly (legacy CR prefix)
Introduction:​ "CR" prefix denotes cable, connector, or accessory harness (commonly motor power/feedback cable or drive interconnect). CR10704 is a legacy ordering number for a specific length/connector variant used with AKM or Goldline motors and S600/S700 drives.

Kollmorgen ME9-403-B-A9-2

Product Name:​ Goldline M-Series AC Brushless Servo Motor (Medium Inertia)
Family:​ Goldline M (frame size 40 / 403)
Introduction:​ Medium-inertia, 230 VAC brushless servo motor intended for compliant loads and moderate inertia mismatch. "B" winding, "A9" stack/feedback/shaft configuration, resolver-capable.

Kollmorgen ATS-603-AS-BV

Product Name:​ SERVOSTAR 600 (S600) Digital Servo Amplifier, 3 A RMS class
Equivalent Order Codes:​ ATS-603-AS-BV = S60301-560 (same hardware, legacy labeling)
Status:​ Legacy / serviced-only platform (superseded by S700 / AKD)

Kollmorgen AKM21C-ESB2C-02

Product Name:​ AKM2 Series Permanent-Magnet Synchronous Servo Motor
Family:​ AKM™ AC Synchronous Servo Motors
Introduction:​ Compact, high-power-density brushless servo motor from the AKM2 frame size (58 mm flange class). Designed for dynamic motion axes where space is limited and smooth low-speed operation is required. Native mating to AKD and AKD2G drives with plug-and-play motor recognition.

Kollmorgen E2C-AKM23D-B2C-15-05B-250-MF

  • Product Name:​ EC2 Series Electric Linear Actuator with AKM23D Servo Motor
  • Product Introduction:​ Integrated screw-driven electric cylinder replacing hydraulic/pneumatic actuators, combining AKM23D brushless servo motor, belt or direct coupling, ball/lead screw and guidance in one IP54 body.

Kollmorgen 6SM 107S-3.000

  • Product Name:​ 6SM Series Permanent-Magnet Synchronous Servo Motor
  • Product Introduction:​ High-torque-density 3-phase brushless servo motor with neodymium magnet rotor, built for direct coupling to Kollmorgen BDS4/S300/S600 drives.

Kollmorgen VFS5-285-30120-2604H-029

  • Product Name:​ S200 Series Servo Drive (VFS5 type code)
  • Product Introduction:​ All-digital compact servo amplifier from S200 family, fed by 120/240 VAC or low-voltage DC, intended for small to mid BLDC axes.

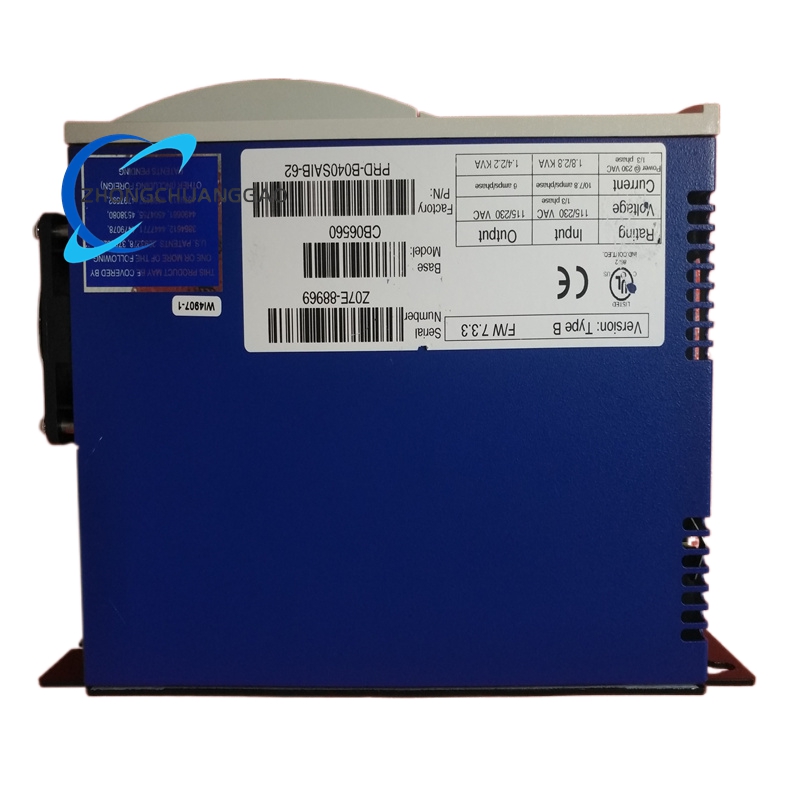

Kollmorgen PRD-0053100C-00

  • Product Name:​ Kollmorgen Servo / Drive Related Component Code (PRD Prefix)
  • Product Introduction:​ "PRD-" prefix is Kollmorgen's internal product/order code family covering drive assemblies, option kits or calibrated servo modules; PRD-0053100C-00 maps to a configured S-series or AKD-series drive package rather than a bare model.

Kollmorgen S30301-NA-ARM9

  • Product Name:​ Servostar S300 Single-Axis Servo Drive, 3 A
  • Product Introduction:​ 240 V-class digital servo drive with ARM9 processor, designed for compact high-dynamic axes; superseded by S700.
