AEG AS-584L-231

• Product Introduction: AEG AS-584L-231 is a dedicated high-speed counter module for the Modicon 584 series industrial PLCs, designed for precise counting and position measurement of high-speed industrial processes and motion control applications. The module features multiple high-speed counter channels with support for incremental encoders and pulse input signals, and offers a wide range of counting modes and high input frequency capabilities. It integrates seamlessly with Modicon 584 series PLC chassis, with direct backplane bus communication for real-time data transfer, and provides comprehensive signal conditioning and protection features for reliable operation in harsh industrial environments. It is a key component for motion control, material handling, packaging and production line counting applications requiring high precision and fast response.
• Technical Specifications:
  • Number of Channels: 4 independent high-speed counter channels (isolated from each other and from backplane bus)
  • Input Signal Type: Differential TTL/RS-422 (for incremental encoders), single-ended TTL; NPN/PNP transistor input (configurable)
  • Maximum Input Frequency: 500 kHz per channel (differential input), 100 kHz per channel (single-ended input)
  • Counting Range: 32-bit signed integer (-2,147,483,648 to +2,147,483,647) per channel, no rollover limit with software reset

AEG AS-P933-001

• Product Introduction: AEG AS-P933-001 is a high-performance redundant power supply module designed for the Modicon 900 series PLC and automation systems, providing uninterrupted, stable DC power to central control units, I/O racks and communication modules in mission-critical industrial applications. The module features dual independent power input channels with automatic failover, high output capacity and comprehensive protection features, ensuring continuous system operation even in the event of a primary power supply failure or voltage fluctuation. It is engineered for seamless integration with Modicon 900 series chassis, with hot-swappable design for maintenance without system shutdown, and is a key component for improving the reliability and availability of industrial automation systems.
• Technical Specifications:
  • Input Voltage: Dual independent inputs, 115/230 V AC selectable (50/60 Hz); 85-265 V AC (wide operating range for input 1 and input 2)
  • Output Voltage: +5 V DC (main output, for CPU and logic modules), +24 V DC (auxiliary output, for I/O and field devices)
  • Output Current: +5 V DC / 20 A (continuous), +24 V DC / 10 A (continuous); 150% overload for 60 seconds (both outputs)

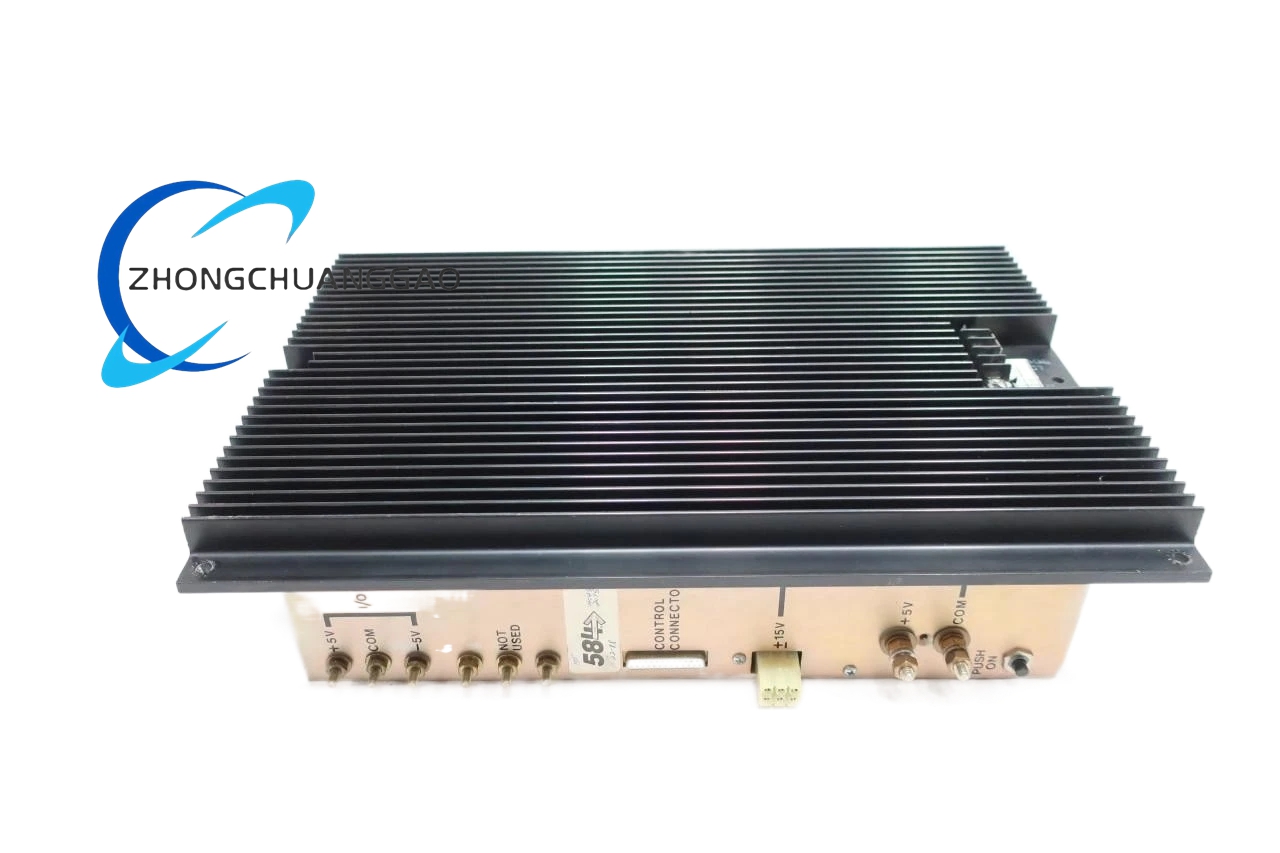

AEG 15A0176-000

Power Management & Fault Isolation

• The chassis integrates independent overcurrent protection fuses for each power distribution channel (+5 V DC and +24 V DC), with 2 A fast-blow fuses for +5 V DC and 5 A slow-blow fuses for +24 V DC. Each fuse is replaceable via front-access fuse holders, eliminating the need to disassemble the chassis for fuse replacement and reducing maintenance downtime.
• Built-in power supply fault detection circuits monitor the voltage and current of each power channel in real time, and transmit fault signals to the central CPU via the backplane bus. The CPU can trigger alarm prompts or emergency shutdown procedures according to the fault level, realizing intelligent power fault management.
• The signal bus and power bus of the chassis are physically separated and independently shielded, and each module slot is equipped with independent power isolation diodes to prevent reverse current caused by module failure from affecting other modules and the entire backplane bus, achieving slot-level fault isolation.

AEG 15A0176-000 Industrial PLC Chassis Backplane & I/O Rack Assembly

• Product Introduction: AEG 15A0176-000 is a heavy-duty industrial PLC chassis backplane and I/O rack assembly, specifically designed for AEG Modicon series PLC systems (compatible with 800 and 984 series modules). It serves as the physical and electrical backbone for modular I/O, communication, and power supply modules, providing a high-speed proprietary backplane bus for real-time data transmission between modules and the central CPU. The rack features a rugged metal construction for industrial cabinet mounting, with redundant power distribution paths and built-in module retention mechanisms, ensuring reliable operation in vibration-prone and high-temperature industrial environments.
• Technical Specifications:
  • Number of Module Slots: 8 standard slots (compatible with Modicon 800/984 series I/O, communication, and memory modules)
  • Backplane Bus Type: AEG Modicon proprietary parallel bus
  • Bus Data Transfer Rate: 8 Mbps (real-time data exchange between CPU and modules)

AEG AS-S908-110 Modicon 800 Series Digital Signal Isolator Module

• Product Introduction: AEG AS-S908-110 is a digital signal isolator module for the Modicon 800 series, designed to provide electrical isolation between field devices and the PLC, preventing ground loops and electrical noise from affecting signal integrity. It ensures accurate and reliable transmission of digital input signals in harsh industrial environments.
• Technical Specifications:
  • Number of Channels: 8 input, 8 output (1:1 isolation)
  • Input Signal Type: 24 V DC digital (sink/source configurable)
  • Output Signal Type: 24 V DC digital (sink/source configurable)
  • Isolation Voltage: 1500 V AC (channel - to - channel, channel - to - ground)

AEG S61G-A00-F0V0 Series Motor Soft Starter

• Product Introduction: AEG S61G-A00-F0V0 is a member of the S61G series motor soft starters, designed to control the acceleration and deceleration of 3 - phase AC motors. It minimizes inrush current during startup, reduces mechanical stress on motor windings and connected equipment, and extends motor service life.
• Technical Specifications:
  • Power Rating: 7.5 kW (10 HP) at 400 V AC
  • Input Voltage: 380-480 V AC (3 - phase, 50/60 Hz)
  • Output Voltage: 0-480 V AC (3 - phase, controlled ramp)
  • Rated Current: 16 A (at 40°C)
