NI CFP-AO-200

Product Introduction
cFP-AO-200 delivers eight isolated current output channels for Compact FieldPoint distributed I/O. It converts digital engineering setpoints from the controller into 0 to 20 mA or 4 to 20 mA field signals for valves, drives, indicators, and other current-loop actuators. The module is suitable for process automation, machine control, and remote I/O applications that require standardized analog output distribution.

NI CFP-AIO-600

Product Introduction
cFP-AIO-600 performs combined analog measurement and analog current output in one Compact FieldPoint module. It acquires voltage or current signals from transmitters, sensors, and field instruments, converts the values for the controller, and generates isolated 4 to 20 mA or 0 to 20 mA output signals for valves, actuators, and loop controllers. The module is intended for distributed I/O, process control, and rugged industrial data-acquisition systems.

NI CFP-1808

Product Name
National Instruments cFP-1808 Compact FieldPoint eight-slot Ethernet and serial network backplane.
Product Introduction
cFP-1808 is a network interface backplane for Compact FieldPoint I/O. It connects up to eight cFP I/O modules to Ethernet and serial hosts, enabling distributed measurement and control in rugged environments.

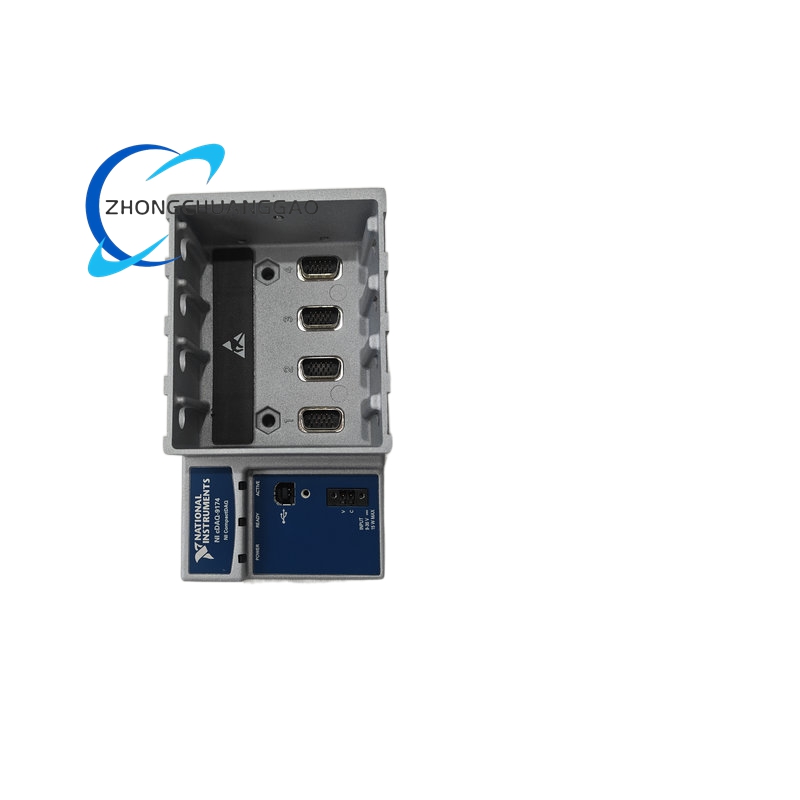

NI CDAQ-9174

Product Name
National Instruments cDAQ-9174 four-slot USB CompactDAQ chassis.
Product Introduction
cDAQ-9174 is a USB 2.0 data-acquisition chassis that accepts four C Series I/O modules. It provides timing, triggering, counter, analog, digital, and bus-power management for measurement systems in laboratory and industrial environments.

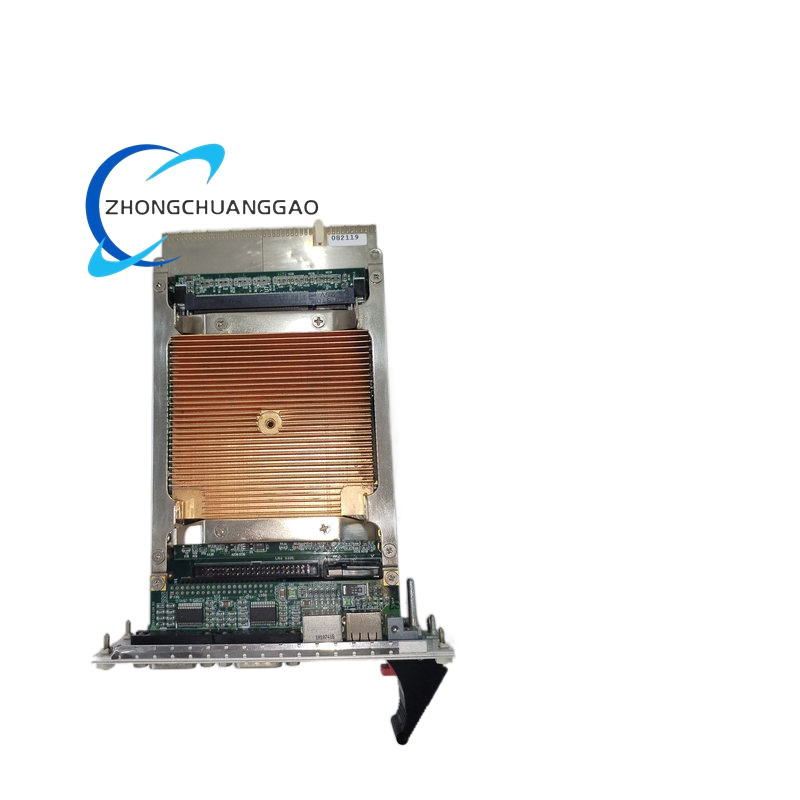

NI CPCI-3840AH

Product Name​
CPCI-3840AH Rugged/High-Temperature CompactPCI Single Board Computer
Introduction​
CPCI-3840AH is marketed as a ruggedized, extended-temperature variant of the CPCI-3840 CompactPCI computer family for industrial real-time control, test, data acquisition, machine monitoring and embedded computing. Published distributor configurations differ by form factor, processor, memory and I/O, so the exact order code must be verified before procurement.

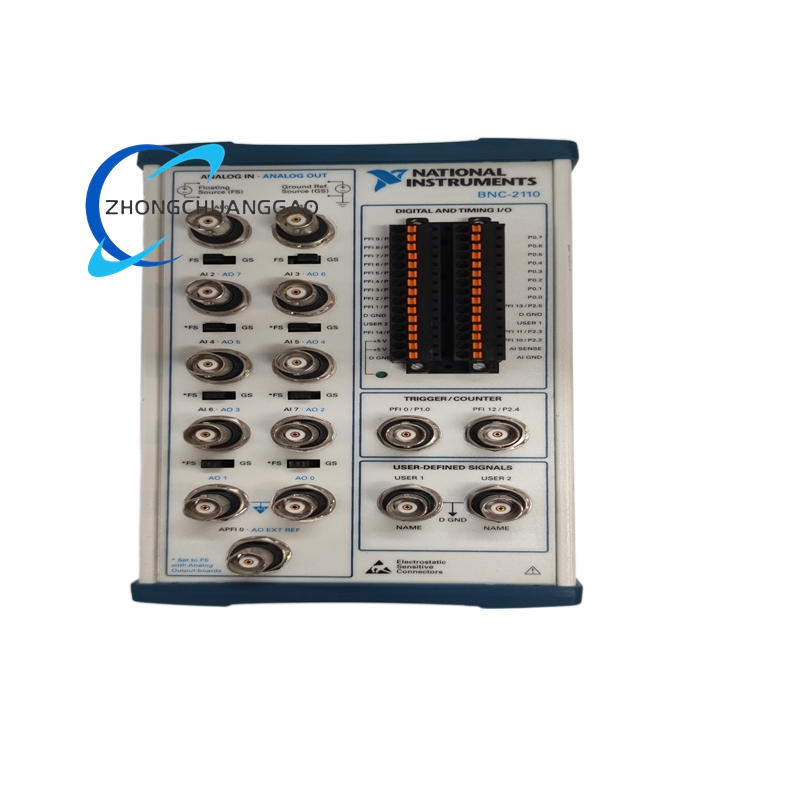

NI BNC-2110

Product Name
National Instruments BNC-2110 shielded BNC adapter and connector block for multifunction and analog-output DAQ devices.
Product Overview
The BNC-2110 simplifies signal connection between transducers, sensors and NI DAQ hardware. It converts a 68-pin DAQ interface into BNC coaxial connectors and supplementary screw terminals while maintaining shielded, low-noise measurement paths.

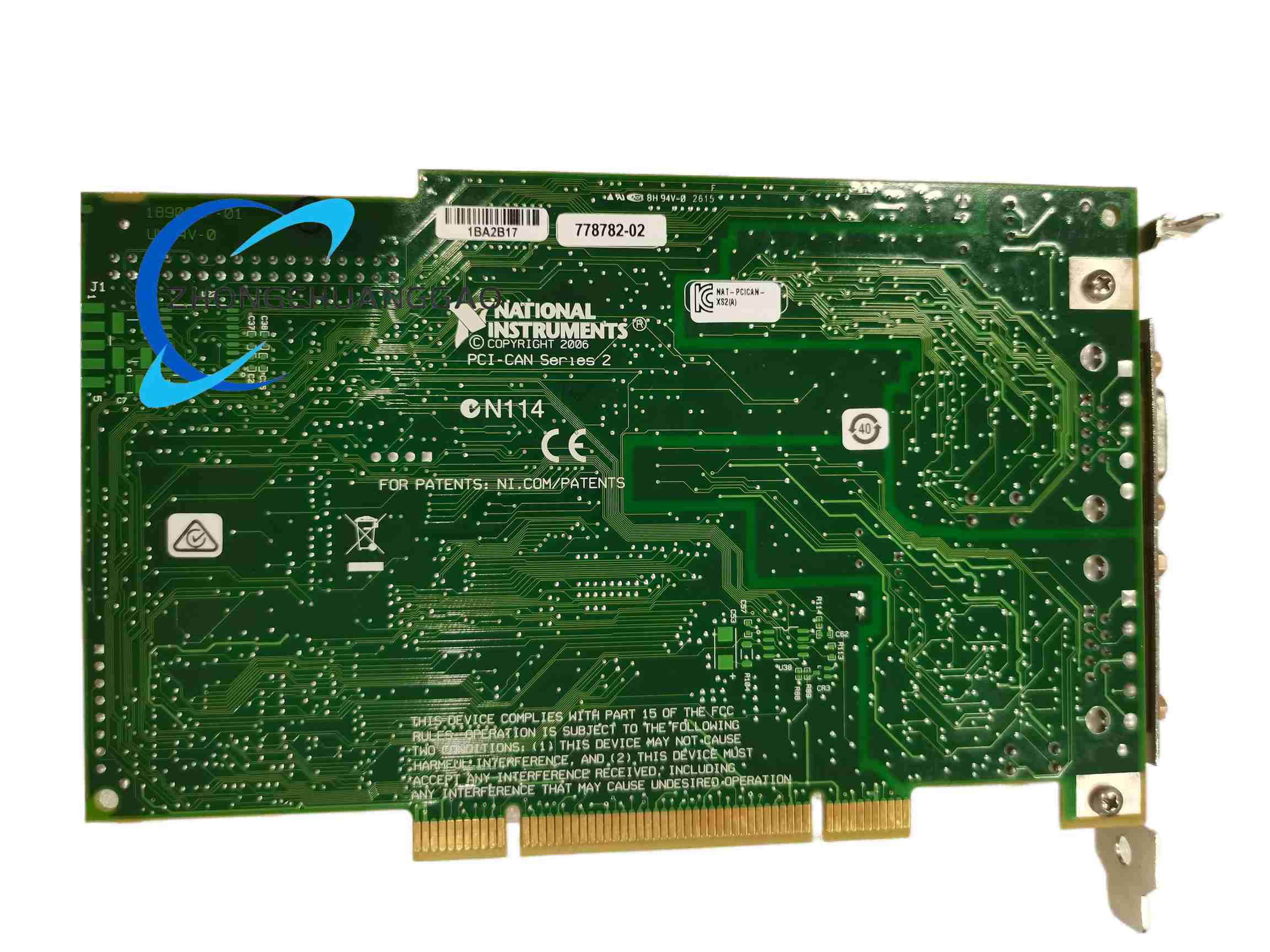

NI PCI-CAN/XS2

Product Name:​ PCI-CAN/XS2 dual-port software-selectable CAN interface
Introduction:​ PCI plug-in board that connects a PC to one or two independent CAN buses for automotive, industrial and laboratory communication. The board supports high-speed, low-speed fault-tolerant and single-wire CAN through software-selected transceivers.

NI PXI-7340

Technical Specifications

  1. Control Axes:
    • Supports 1–4 axes of simultaneous coordinated motion control .
    • Configurable for servo or stepper motors per axis .
  2. Control Modes:
    • Position, velocity, and force/pressure control .
    • Closed-loop (with feedback) or open-loop (stepper-only) operation .

NI PXIe-5105

  • Technical Specifications
    • Voltage Input Channels: 8.
    • Analog Input Resolution: 12 bits.
    • Analog Input Voltage Range: -15 V to 15 V.
    • Maximum Sampling Rate: 60 MS/s.
    • Oscilloscope Maximum Bandwidth: 60 MHz.
    • Analog Input Impedance: 1 MΩ or 50 ohms.
    • Bus Connector: PXI Express.
    • Memory: It can be configured with 16 MB, 128 MB, or 512 MB of memory.
    • Power Consumption: Approximately 23 W.
    • Operating Temperature Range: 0°C - 55°C.
    • Storage Temperature Range: -40°C - 71°C.

National Instruments PCI-2702C High-Speed Data Acquisition Module

National Instruments PCI-2702C High-Speed Data Acquisition Module

The NI PCI-2702C Data Acquisition Module is a high-performance data acquisition solution designed for integration into industrial automation systems. It provides reliable and accurate analog and digital signal processing capabilities, making it ideal for monitoring and controlling various industrial processes.

NI PXI-3065A Standardization and Acceleration Knowledge

NI PXI-3065A Standardization and Acceleration Knowledge

The NI PXI-3065A module is designed to enhance industrial automation processes by providing standardized and accelerated solutions. It is ideal for use in manufacturing, testing, and quality control environments where efficiency and precision are paramount.
