Bently 3500/40 135489-04 Proximitor Monitor – 4-channel isolated I/O ATEX/CSA approved

Product Name: 3500/40 Proximitor Monitor – 4-channel, isolated I/O, ATEX/CSA approved
Product Introduction: Agency-approved version of 3500/40 with isolated I/O and worldwide Ex certification for hazardous areas.
Technical Specifications:
  • Part Number: 135489-04
  • I/O Type: Isolated
  • Approvals: ATEX, IECEx, CSA
  • Operating Temperature: –40 °C to +85 °C

Bently 3500/40 176449-01 Proximitor Monitor – 4-channel, standard I/O, general-purpose

Technical Specifications:
  • Channels: 4
  • Input: –24 VDC Proximitor
  • Measurement Types: Radial vibration, thrust position, differential expansion, eccentricity
  • Frequency Response: 0 – 10 kHz
  • Linear Range: 2 mm (80 mils)
  • Sensitivity: 7.87 V/mm (200 mV/mil)
  • Accuracy: ±0.5 %
  • Power: 24 VDC from rack, 7.7 W
  • Operating Temperature: –30 °C to +65 °C
  • Certifications: None (general-purpose)

Bently 3500/33-1-00

Product Name: 3500/33 Relay Module – 1 m system, isolated I/O, general-purpose
Product Introduction: Variant with isolated I/O for installations where ground-loop immunity is required.
Technical Specifications:
  • System Length: 1.0 m
  • I/O Type: Isolated
  • Certifications: None

Bently 3500/33-01-00

Product Name: 3500/33 Relay Module – 1 m system, standard cable, general-purpose
Product Introduction: Standard 3500/33 with 1 m total probe + extension length for general-purpose installations.
Technical Specifications:
  • System Length: 1.0 m
  • Certifications: None

Bently 3500/33-01 Relay Module – Base variant 16 channels standard I/O

Product Name: 3500/33 Relay Module – Base variant, 16 channels, standard I/O
Product Introduction: Base order code for 3500/33 with standard I/O and no special options. It is the starting point for all 3500/33 configurations.
Technical Specifications:
  • Channels: 16
  • I/O: Standard
  • Certifications: None (general-purpose)

Bently 3500/33 149992-01 Channel Relay Output Module

Technical Specifications:
  • Part Number: 149992-01
  • I/O Type: Standard (non-failsafe)
  • Contact Rating: 5 A @ 250 VAC, 5 A @ 30 VDC
  • Max Switched Power: 1,500 VA
  • Isolation: 1,500 V
  • Approvals: ATEX Ex ia IIC T4 Ga, IECEx, CSA Class I Div 2
  • Temperature: –40 °C to +85 °C
  • Protection: IP20 front, epoxy-sealed relays
  • Weight: 0.7 kg

Bently 3500/33 Channel Relay Output Module

Technical Specifications:
  • Channels: 16 Form-C relays
  • Contact Rating: 5 A @ 250 VAC, 5 A @ 30 VDC (resistive)
  • Operate Time: <10 ms
  • Isolation: 1,500 V coil-to-contact
  • Programming: AND/OR logic, latching/non-latching, time delays
  • Power: 24 VDC from rack, 8 W max
  • Operating Temperature: –30 °C to +65 °C

Bently 3500/32-A01-B01 Channel Relay Module – Custom configuration

Product Name: 3500/32 4-Channel Relay Module – Custom configuration, isolated I/O, 10 ms filter
Product Introduction: Factory-customised relay module with isolated I/O and 10 ms contact debounce filter for noisy environments.
Technical Specifications:
  • Configuration: A01-B01
  • Isolation: Yes
  • Filter: 10 ms

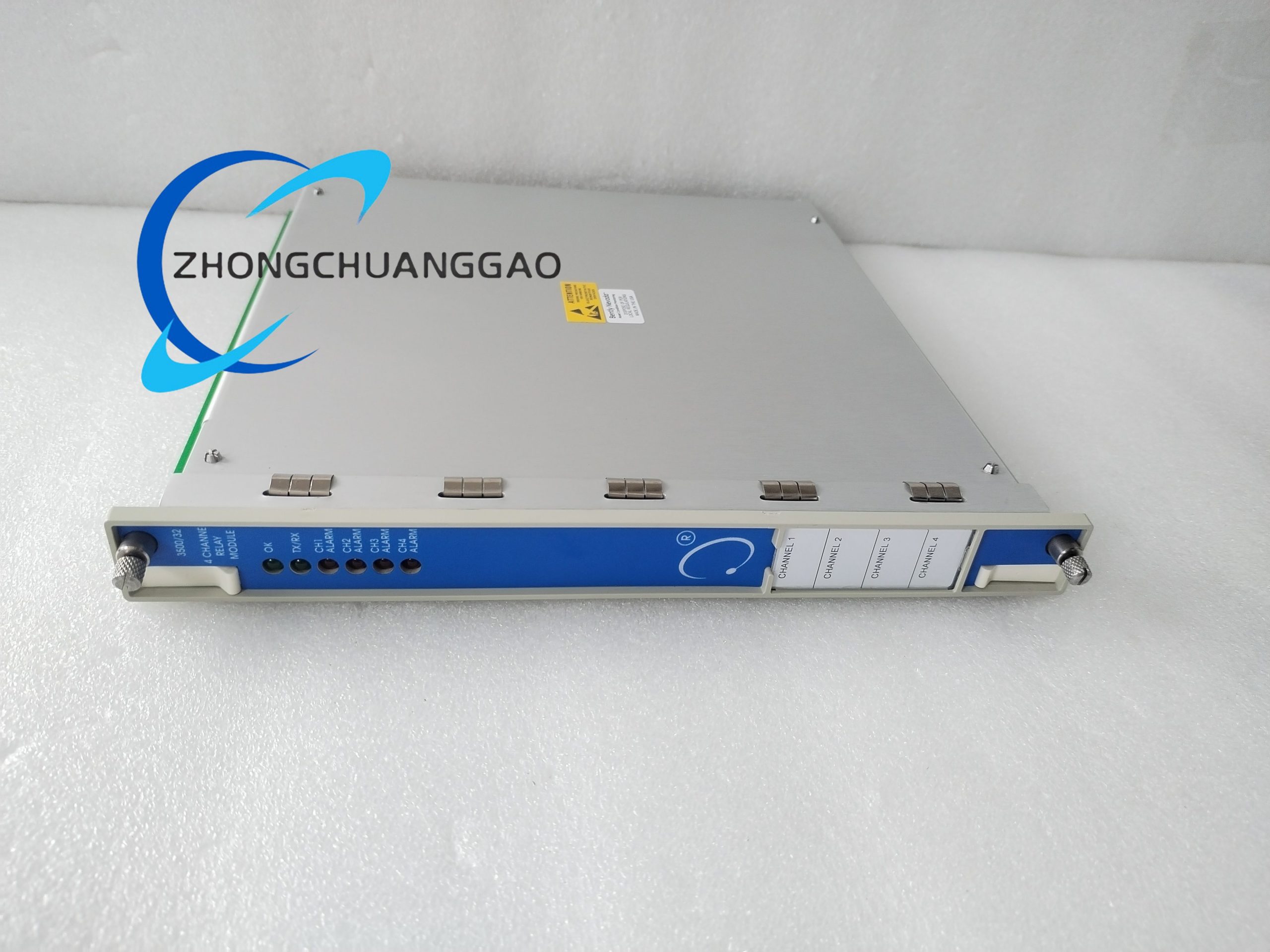

Bently 3500/32 Channel Relay Module

Technical Specifications:
  • Channels: 4 independent Form-C relays
  • Contact Rating: 5 A @ 250 VAC, 5 A @ 30 VDC
  • Operate Time: <10 ms
  • Isolation: 1,500 V coil-to-contact
  • Power: 24 VDC from rack, 5 W
  • Operating Temperature: –30 °C to +65 °C
  • Approvals: CE, UL, SIL 2 capable
