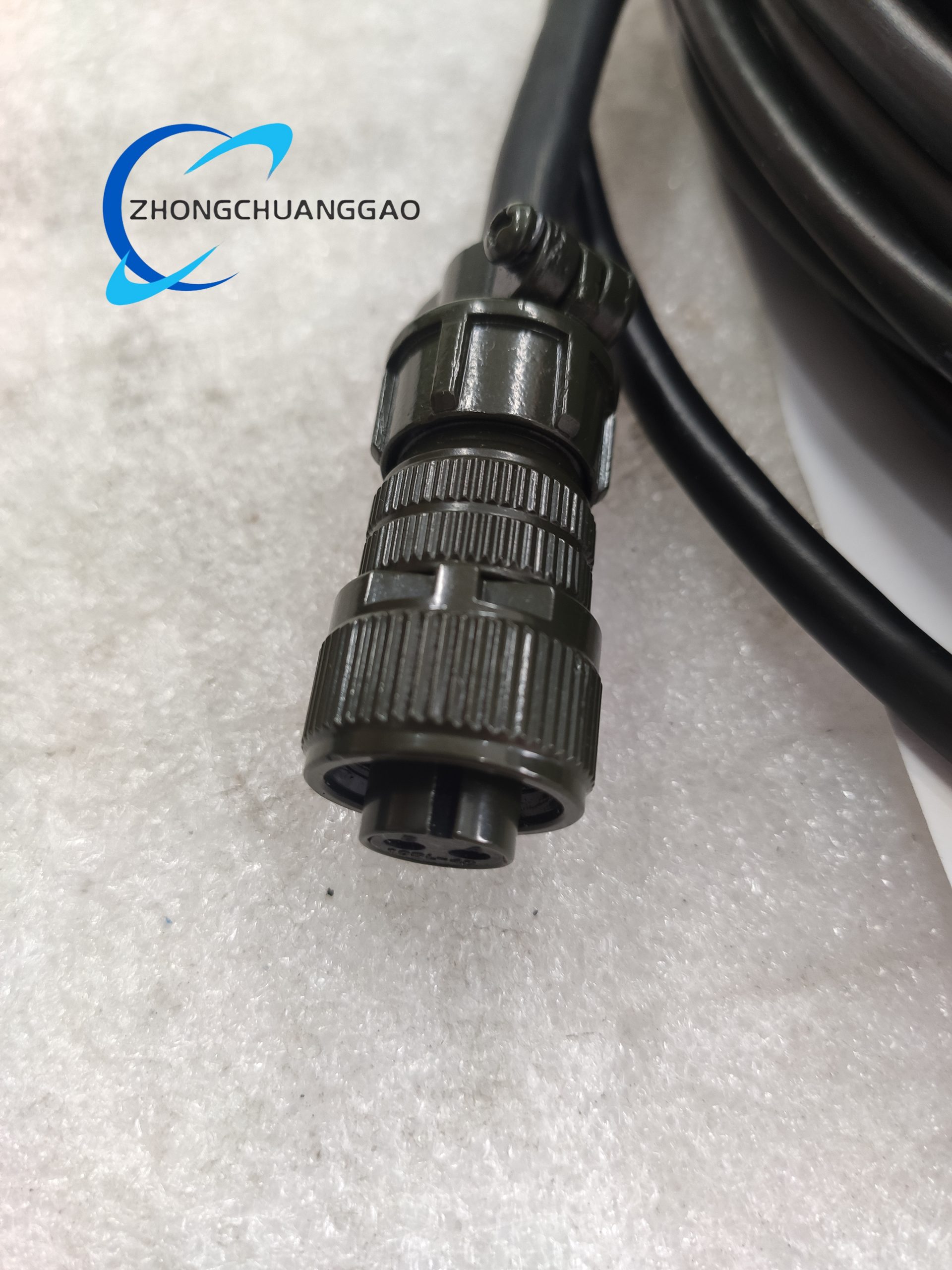

Bently Nevada 84510-50 Accelerometer Cable Assembly

Technical Specifications:
  • Length: 50 ft (15.2 m)
  • Conductors: 3 × 20 AWG, tinned copper
  • Shield: 95 % tinned copper braid, overall foil
  • Jacket: Oil-resistant thermoplastic elastomer, black
  • Temperature: –40 °C to +125 °C
  • Bend Radius: 5 × OD

Bently Nevada 30130-040-00-00 3300 XL 8 mm Proximitor

Technical Specifications:
  • Probe Compatibility: 3300 XL 8 mm, 1 m or 5 m system length
  • Supply: –24 VDC, 12 mA
  • Output: –2 V to –18 V linear
  • Frequency Response: 0 – 10 kHz
  • Temperature: –35 °C to +85 °C
  • Housing: Cast aluminum, DIN rail or panel mount

Bently Nevada 19000-00-90-18-02 1900/65A Universal Device Monitor

Technical Specifications:
  • Channels: 6 dynamic, 2 speed/tach
  • Inputs: IEPE, 4-20 mA, –24 V proximity
  • Frequency: 0.2 Hz – 20 kHz
  • Alarms: 6 relays, programmable voting
  • Communications: RS-485 Modbus RTU, 10/100 Ethernet
  • Power: 24 VDC, 15 W
  • Housing: IP66 polycarbonate field enclosure

Bently Nevada 18745-03 7200 Series Proximitor® Sensor

Technical Specifications:
  • Probe Compatibility: 5 mm, 7200 series
  • System Length: 5 m (probe + extension)
  • Output: –4 V to –20 V proportional to gap
  • Linearity: ±0.5 % over 2 mil range
  • Temperature: –35 °C to +100 °C
  • Housing: Cast aluminum, DIN rail clip

Bently Nevada 13677-01 3500/05 Instrument Rack Power-Supply Module

Technical Specifications:
  • Input: 85 – 264 VAC, 47 – 440 Hz
  • Outputs: +24 VDC @ 4 A, +5 VDC @ 10 A, ±12 VDC @ 1 A
  • Hold-up Time: 20 ms at full load
  • Efficiency: 85 %
  • Parallel Operation: Load-sharing with second supply
  • Protection: Over-voltage, over-current, thermal shutdown
  • Temperature: 0 °C to +65 °C
  • Cooling: Internal fan, front-to-airflow

Bently Nevada 9200-06-01-10-00 Two-Wire Velocity Seismoprobe

Technical Specifications:
  • Sensitivity: 4 mA/mm/s (100 mV/in/s)
  • Frequency Range: 4.5 Hz – 2 kHz ±3 dB
  • Measurement Range: 0 – 25 mm/s rms
  • Supply Voltage: 12 – 30 VDC loop-powered
  • Housing: 316 L stainless steel, hermetic, IP68
  • Mounting: ¼-28 UNF captive stud
  • Temperature: –55 °C to +120 °C
  • Certifications: ATEX / IECEx Zone 0, CE

Bently Nevada 60M500-05-00 vbOnline Pro Portable Vibration Monitor

A compact, battery-powered, multi-channel vibration data collector and analyzer designed for on-route and walk-around condition monitoring of rotating machinery. It delivers laboratory-grade signal processing in a rugged field enclosure and uploads automatically to System 1® software for trending and diagnostics.
Technical Specifications:
  • Inputs: 4 dynamic channels (IEPE / piezo accelerometers, velocity sensors, proximity probes)
  • Sampling Rate: Up to 102.4 kHz per channel
  • Frequency Range: 0.1 Hz – 40 kHz
  • Dynamic Range: 110 dB

Bently Nevada 130539-25 Power Supply Module

Technical Specifications:
  • Part Number: 130539-25
  • Input Voltage: 85–264 VAC, 47–63 Hz
  • Output Voltage: 24 VDC regulated
  • Power Rating: 25 watts
  • Redundancy: Optional dual supply
  • Protection: Overvoltage, overcurrent, thermal

Bently Nevada 128229-01 Accelerometer Sensor

Technical Specifications:
  • Part Number: 128229-01
  • Sensor Type: Piezoelectric accelerometer
  • Frequency Range: 0.5 Hz to 10 kHz
  • Sensitivity: 100 mV/g
  • Mounting: Stud or adhesive
  • Environmental Rating: IP67
