Bently 330130-040-01-00

Product Introduction: Same electrical specs as above but factory-fitted with stainless-steel interlocked armor for mechanical protection.
Technical Specifications:
  • Length: 4.0 m
  • Armor: Stainless-steel interlocked, 6 mm OD
  • Pull Strength: 1,000 N
  • Bend Radius: 75 mm static
  • Certifications: None

Bently 330130-040-00-CN

Product Introduction: A 75 Ω triaxial extension cable that joins probe and Proximitor while preserving signal fidelity. Certified to NEPSI Ex for immediate acceptance in Chinese hazardous areas.
Technical Specifications:
  • Length: 4.0 m
  • Impedance: 75 Ω ±2 %
  • Capacitance: 69.9 pF/m
  • Connector: Male probe side, female driver side, miniature coax

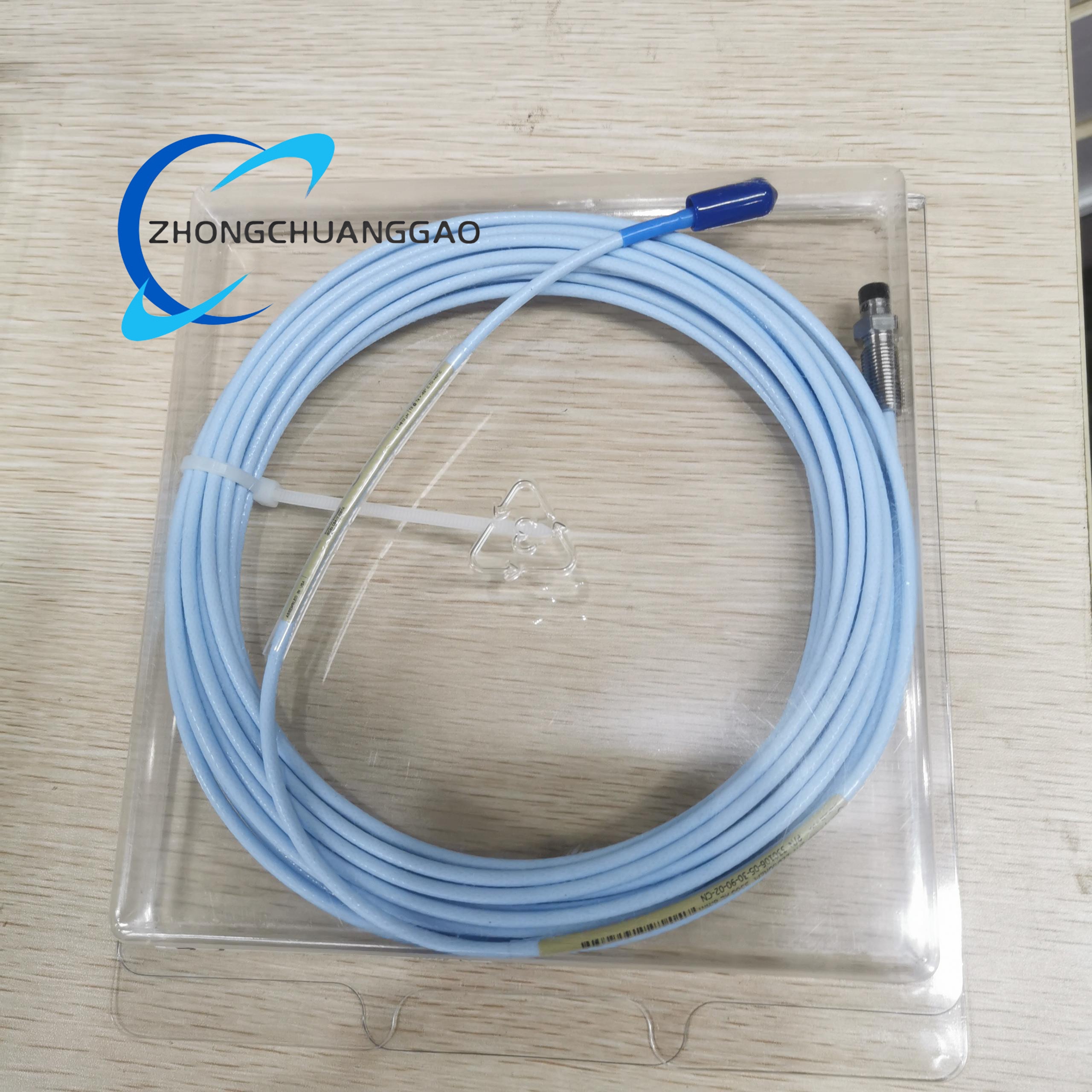

Bently 330106-05-30-90-02-05-CN

Product Introduction: A high-precision, non-contact sensor engineered for Chinese installations. Measures shaft displacement, vibration and axial position on rotating machinery with <1 % linearity error. The 90° miniature ClickLoc connector and 3 m cable fit space-constrained layouts typical of Chinese pumps, turbines and compressors.
Technical Specifications:
  • Probe Diameter: 8 mm
  • Thread: M10 × 1 (reverse-mount)
  • Case Length: 30 mm
  • Total Length: 0.5 m probe + 3 m integral cable
  • Connector: 90° miniature coax ClickLoc
  • Linear Range: 0.25 – 2.3 mm (10 – 90 mils)
  • Sensitivity: 7.87 V/mm (200 mV/mil)
  • Frequency Response: 0 – 10 kHz

Bently 330106-05-30-10-02-CN

Product Introduction: One-meter 11 mm probe certified to NEPSI Ex for Chinese market.
Technical Specifications:
  • Total Length: 1.0 m
  • Certifications: NEPSI Ex

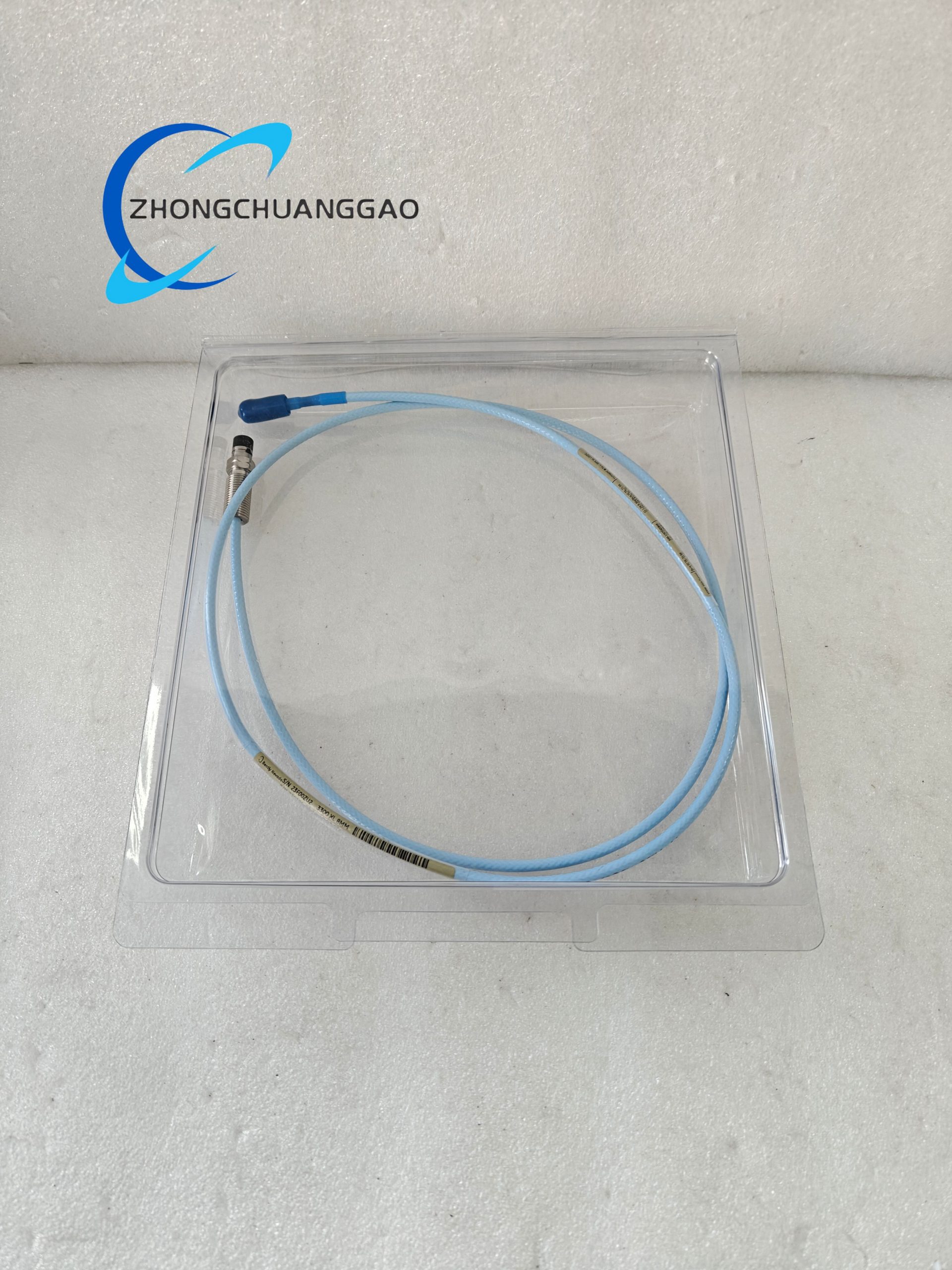

Bently 330106-05-30-10-02-05

Product Introduction: One-meter 11 mm probe with worldwide Ex certification for longer reach applications.
Technical Specifications:
  • Total Length: 1.0 m
  • Approvals: CSA, ATEX, IECEx

Bently 330106-05-30-05-02-05

Product Introduction: Agency-approved 11 mm probe for worldwide hazardous areas.
Technical Specifications:
  • Total Length: 0.5 m
  • Approvals: CSA, ATEX, IECEx

Bently 330106-05-30-05-02-00

Product Introduction: An 11 mm diameter probe that provides the same 2 mm linear range as the 8 mm version but with a stiffer case for high-vibration or side-loading environments.
Technical Specifications:
  • Probe Diameter: 11 mm
  • Thread: M14 × 1.5
  • Total Length: 0.5 m
  • Linear Range: 2 mm
  • Sensitivity: 7.87 V/mm
  • Certifications: None

Bently 330105-02-12-10-02-CN

Product Introduction: One-meter reverse-mount probe with China NEPSI Ex certification for immediate deployment in Chinese plants.
Technical Specifications:
  • Total Length: 1.0 m
  • Certifications: NEPSI Ex

Bently 330105-02-12-10-02-05

Product Introduction: Agency-approved version of the 1 m reverse-mount probe for worldwide hazardous-area use.
Technical Specifications:
  • Total Length: 1.0 m
  • Approvals: CSA, ATEX, IECEx

Bently 330105-02-12-10-02-00

Product Introduction: One-meter reverse-mount probe for installations where the Proximitor driver is mounted farther from the machine or where additional cable length is needed for routing.
Technical Specifications:
  • Total Length: 1.0 m
  • Case Length: 120 mm
  • Certifications: None (general-purpose)

Bently 330105-02-12-05-02-CN

Product Introduction: Identical mechanical and electrical performance to the above but factory-certified to NEPSI Ex ia IIC T4 Ga for immediate acceptance in Chinese hazardous-area plants.
Technical Specifications:
  • Total Length: 0.5 m
  • Certifications: NEPSI Ex ia IIC T4 Ga, Ex ia IIIC T135 °C Da
  • Thread: 3/8-24 UNF-2A (M10 × 1 option)
  • Approvals: China Ex

Bently 330105-02-12-05-02-05

Product Introduction: A tip-sensitive eddy-current probe installed from inside a hollow shaft to measure thrust-collar position, speed or phase. The 0.5 m system length suits compact installations while delivering full 3300 XL accuracy and interchangeability.
Technical Specifications:
  • Mounting Style: Reverse-mount, 3/8-24 UNF-2A thread
  • Unthreaded Length: 0 mm
  • Case Length: 120 mm
  • Total Length: 0.5 m (probe + integral cable)
  • Connector: Miniature coax ClickLoc, standard cable
  • Linear Range: 0.25 – 2.3 mm (10 – 90 mils)
  • Sensitivity: 7.87 V/mm (200 mV/mil)
  • Frequency Response: 0 – 10 kHz
  • Tip Temperature: –52 °C to +177 °C
  • Cable Temperature: –51 °C to +260 °C
  • Static Pressure: 350 bar (5,000 psi) with Viton O-ring
  • Approvals: CSA, ATEX, IECEx
  • Materials: AISI 303/304 SST case, PPS tip
  • Weight: 0.32 kg
