Bently TSXDMZ28DR

Product Name: TSXDMZ28DR Schneider Discrete I/O Module – 28-point, relay output, spare part
Product Introduction: 28-point relay output module used in conjunction with TSX3722001 PLC for alarm annunciation in legacy Bently systems.
Technical Specifications:
  • Points: 16 DI, 12 DO relay
  • Voltage: 24 VDC
  • Contact Rating: 2 A
  • Isolation: 1,500 V

Bently TSX3722001

Product Name: TSX3722001 Schneider PLC CPU – spare part for legacy Bently interface
Product Introduction: Original Schneider Electric TSX 37-22 PLC CPU used in early Bently Nevada interface racks for data concentration. It is no longer manufactured but available as refurbished spare.
Technical Specifications:
  • CPU: TSX 37-22
  • Memory: 32 KB
  • I/O: 256 points
  • Power: 24 VDC
  • Communication: RS-485, Modbus

Bently TSP090-124EX

Technical Specifications:
  • Element: Pt100, Class A
  • Range: –50 °C to +250 °C
  • Accuracy: ±0.15 °C
  • Output: 4-20 mA, 2-wire
  • Power: 12 – 30 VDC
  • Protection: IP66, Ex d IIC T6
  • Approvals: ATEX, IECEx, CSA

Bently PWB78434-01

Product Name: PWB78434-01 Printed Wiring Board – spare part for 3500 power supply
Product Introduction: Factory spare circuit board for 3500/15 power supply modules. It is conformal-coated and tested to original specifications.
Technical Specifications:
  • Function: Power-supply control & regulation PCB
  • Coating: Acrylic conformal
  • Temperature: –55 °C to +125 °C
  • Approvals: UL recognized

Bently 3500/94M 184826-01

Product Name: 3500/94M Enhanced Display – 184826-01 I/O module, Gigabit Ethernet, ATEX approved
Product Introduction: Factory-configured 3500/94M with 184826-01 I/O board that provides Gigabit Ethernet and worldwide Ex certification for hazardous areas.
Technical Specifications:
  • Part Number: 184826-01
  • Ethernet: Gigabit, redundant
  • Approvals: ATEX Ex ia IIC T4 Ga, IECEx, CSA

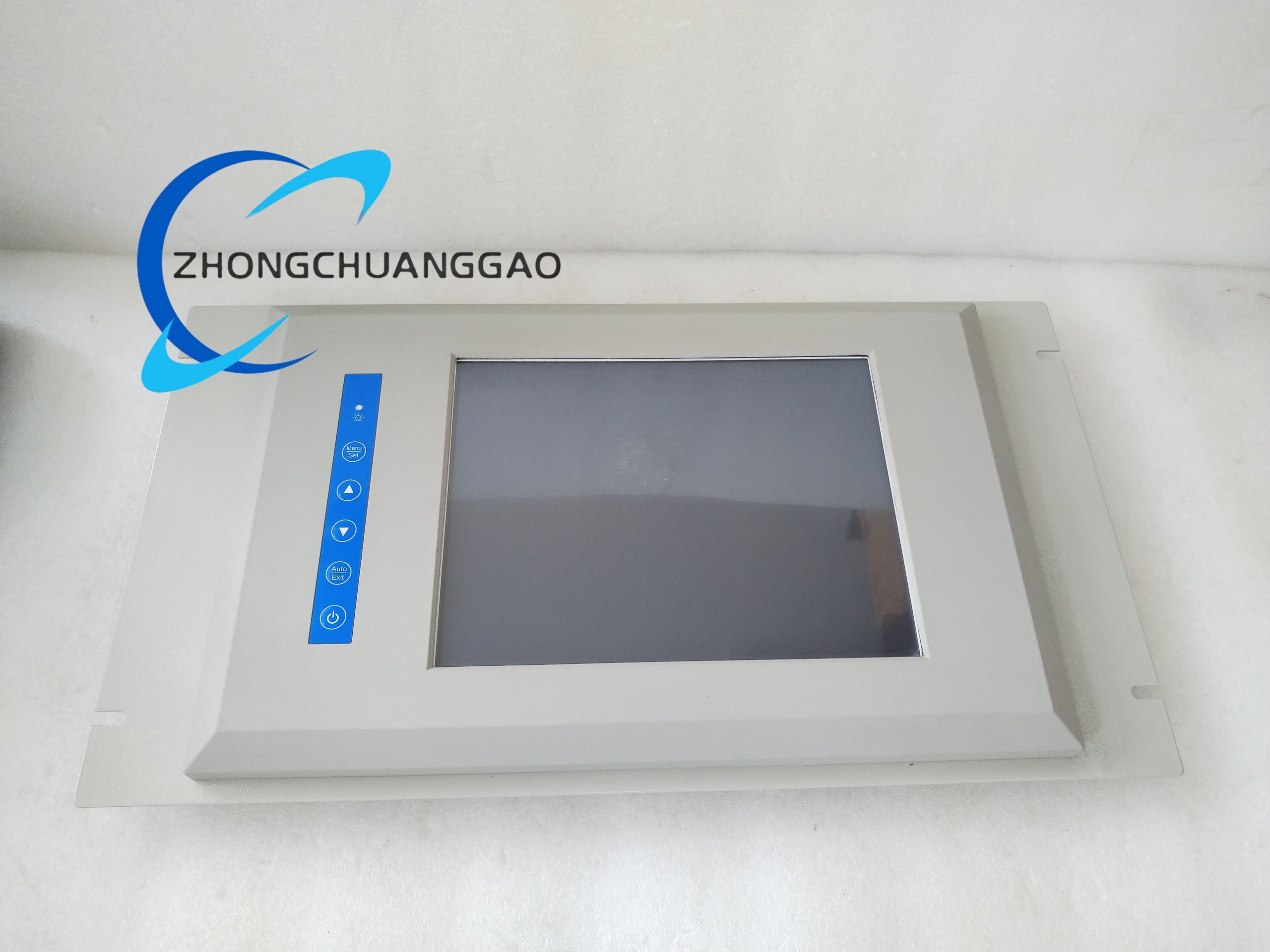

Bently 3500/94M Enhanced System Display

Technical Specifications:
  • Display: 15.6-inch TFT colour, 1280 × 800 pixels
  • Touch: Projected capacitive, multi-touch
  • Processor: 1.6 GHz quad-core ARM Cortex-A72
  • Memory: 4 GB RAM, 32 GB eMMC
  • Communication: Gigabit Ethernet, USB 3.0, RS-485
  • Protocols: Modbus TCP, OPC UA, HTTP REST, VNC server
  • Power: 24 VDC, 25 W max
  • Operating Temperature: –20 °C to +60 °C
  • Approvals: CE, UL, ATEX Zone 2, SIL 2 capable

Bently 3500/93-01-00-00

Technical Specifications:
  • Mounting: Face-mount (display hinges on rack front)
  • Approvals: 00 (none)
  • Backlight: Determined by display part number (135785-01 or -02)
  • Communication: RS-422 to DIM
  • Power: 15.5 W max

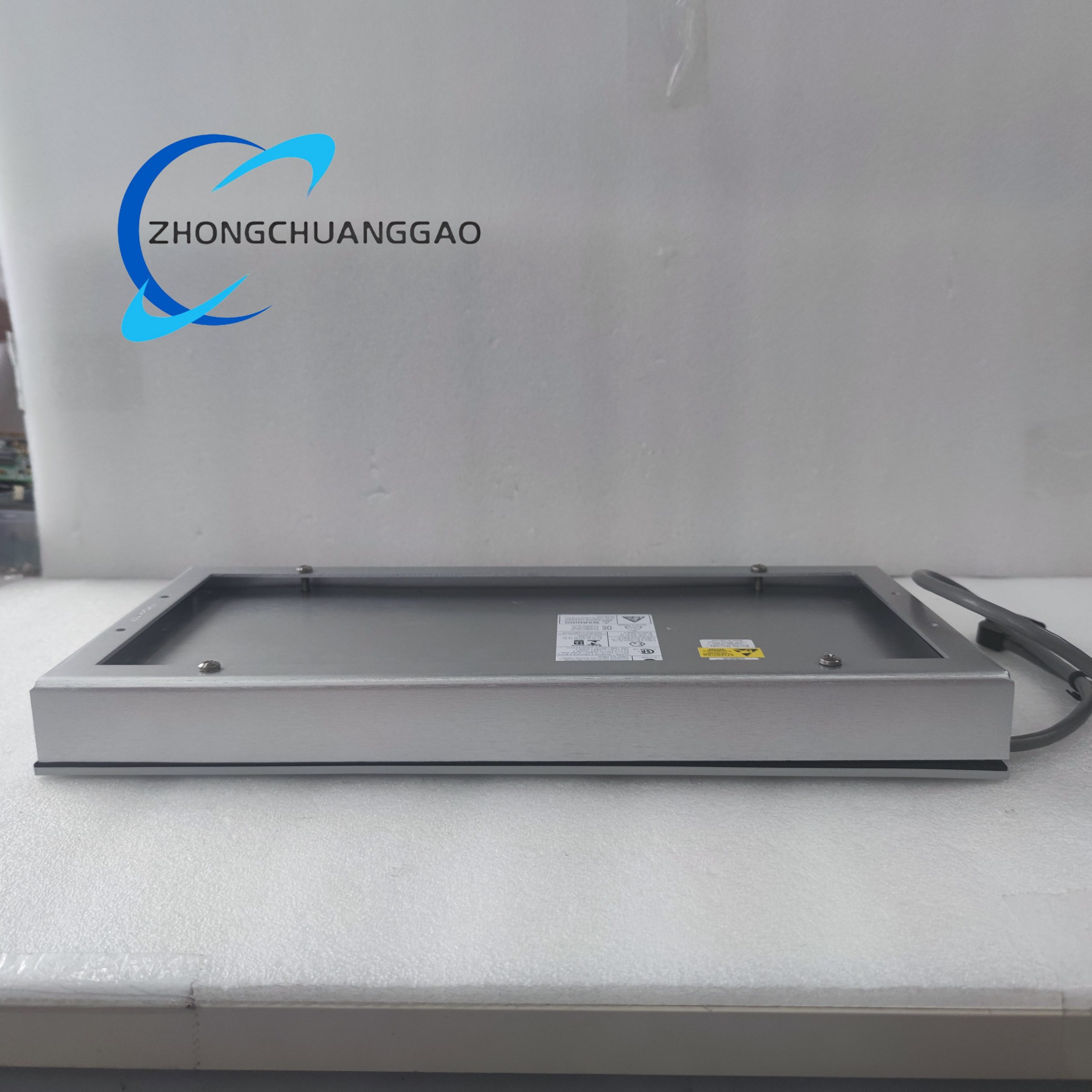

Bently 3500/93 135785-02

Technical Specifications:
  • Display Type: Transflective FSTN LCD, 640 × 200 dots
  • Backlight: White electroluminescent, life >20,000 h
  • Brightness: 120 cd/m²
  • Power Consumption: 16 W max (backlight on)
  • Supply Voltage: 18 – 36 VDC
  • Operating Temperature: –20 °C to +60 °C
  • Approvals: ATEX Ex ia IIC T4 Ga, IECEx, CSA Class I Div 2
  • Communication: RS-422, USB device port on front for local laptop connection
  • Additional Ports: Front USB-B for local configuration laptop
  • Weight: 2.15 kg (display unit)

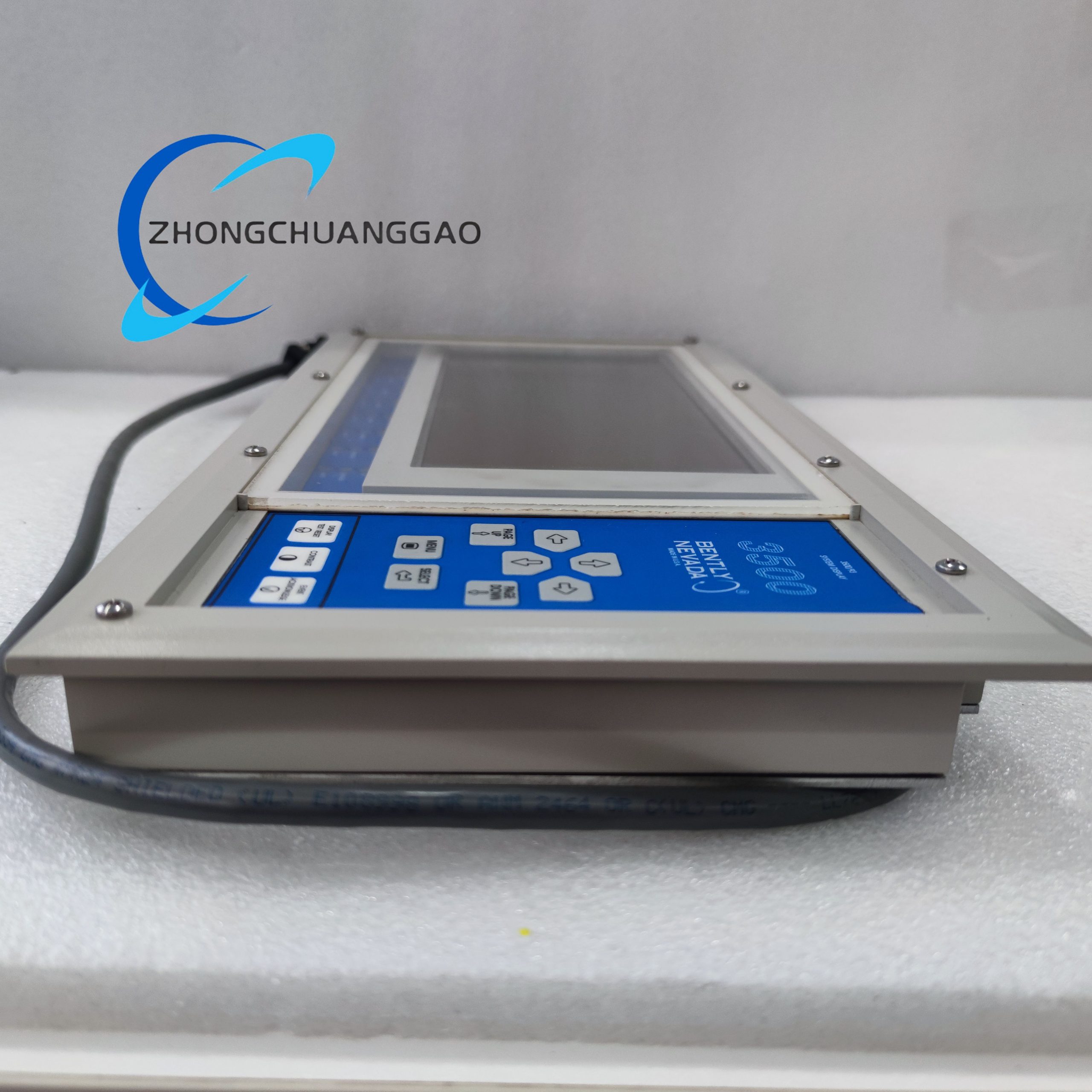

Bently 3500/93 135785-01 System Display Module

Technical Specifications:
  • Display Type: Reflective FSTN LCD, 640 × 200 dots
  • Screen Size: 8.0 in diagonal
  • Viewing Area: 154 × 48 mm
  • Backlight: None (requires ambient light)
  • Display Unit Dimensions: 203 × 413 × 31 mm
  • Display Unit Weight: 2.1 kg
  • Display Interface Module (DIM) Dimensions: 241 × 24 × 242 mm
  • DIM Weight: 0.82 kg
  • Power Consumption: 15.5 W max (unit + DIM)
  • Supply Voltage: 18 – 36 VDC (from rack or external supply)

Bently 3500/92 136188-02 Communication Gateway

Product Name: 3500/92 Communication Gateway – enhanced front panel with OLED display
Product Introduction: Same electrical performance as 136180-01 but fitted with enhanced front plate (136188-02) that includes 2-line OLED display and four navigation buttons for local read-out of rack values, IP address and fault codes.
Technical Specifications:
  • Part Number: 136188-02
  • Display: 2-line OLED
  • Buttons: 4 tactile switches
