Technical Specifications​

Non-regulated DC link approximately 715 VDC. Regulated DC link approximately 670 VDC. Rated current approximately 14 Arms at 4 kHz closed loop. Rated current approximately 9.7 Arms at 8 kHz closed loop. Open-loop peak approximately 29 Arms at 4 kHz. Auxiliary 24 VDC control supply approximately 1.03 A. Module width 50 mm. Height 430 mm. Weight approximately 6.0 kg. Factory switching frequency 8 kHz.

Functional Features​

Closed-loop speed, position, and current control. SERCOS setpoint interface. Supports STG, MTG, and gear encoders. 32-bit mounting resolution and 20-bit stage resolution for fine feedback processing. Modular rack mounting with busbar DC-link connection.

Application Scenarios​

Machine tools. Multi-axis automation cells. Packaging and converting machines. Robotics and material handling. Industrial servo retrofit systems.

Performance Parameters​

Temperature derating approximately 0.35 A/K above nominal reference. Maximum power loss approximately 156 W. Suitable for 300 mm depth control cabinets in modular drive systems.

Material And Structure​

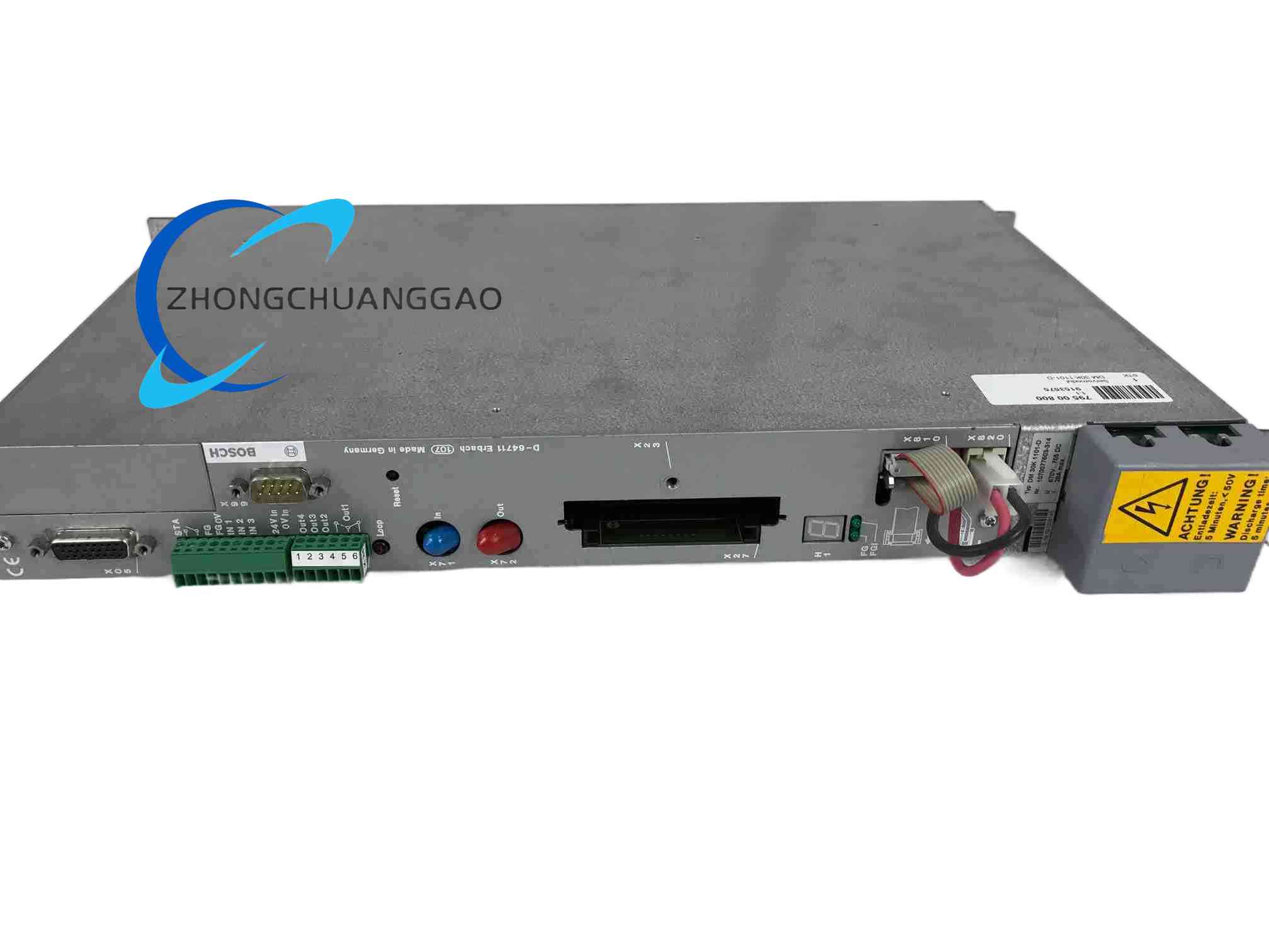

Industrial metal drive module. Power stage with IGBT/semiconductor switching. Control electronics board. SERCOS interface module. Busbar DC-link connection. Personality/memory module support.

Working Principle​

The drive receives setpoints from the motion controller through SERCOS. It regulates current, speed, or position using encoder/resolver feedback, then outputs controlled three-phase power to the servo motor through the DC-link busbar system.

Installation Requirements​

Install in compatible Servodyn-D cabinet with correct busbar and backplane modules. Verify DC-link voltage, motor type, encoder type, and SERCOS node address. Provide adequate cabinet ventilation. Use correct torque for power and signal terminals.

Usage Precautions​

Allow DC-link pre-charge before applying full power. Do not leave CT/encoder cables unshielded. Avoid overheating and poor ventilation. Match motor, feedback, and firmware before replacement. Only trained personnel should handle high-voltage DC-link circuits.
