Woodward 5448-893S PM-D1010В

Product Name: SPM-D10 Synchronizer Module
Product Introduction: A microprocessor-based synchronizer designed for precise paralleling of AC generators with the mains or other generators. It ensures accurate frequency, phase, and voltage matching for smooth and safe synchronization.
Technical Specifications:
  • Measurement Voltage: 57/100(120) V AC (nominal)
  • Maximum Measurement Voltage: 150 V AC

Woodward 5437-1124

Product Name: ProTech-GII Voted Relay/Input Spare Module
Product Introduction: An upgraded spare module for ProTech-GII safety systems (models 8237-1596 and 8237-1600). It combines voted relay outputs with voted input monitoring for comprehensive turbine safety control.
Technical Specifications:
  • Compatibility: ProTech-GII 8237-1596, 8237-1600
  • Function: Integrated voted relay and voted input module

Woodward 5437-1119

Product Name: ProTech-GII Voted Relay Spare Module
Product Introduction: A replacement spare module for ProTech-GII voted relay safety systems (models 8237-1246 Rev D+ and 8237-1369). It is a key component for maintaining the integrity of turbine overspeed protection systems.
Technical Specifications:
  • Compatibility: ProTech-GII 8237-1246 (Rev D+), 8237-1369
  • Power Input: 90–264 VAC / 47–63 Hz (HV) or 24 VDC (LV)

Woodward 5437-1080

Product Name: ProTech-GII Spare Individual Relay Module
Product Introduction: A dedicated spare relay module for Woodward's ProTech-GII overspeed protection systems (models 8237-1244 and 8237-1367). It provides a 2-out-of-3 voted relay architecture for high-integrity turbine shutdown.
Technical Specifications:
  • Compatibility: ProTech-GII 8237-1244, 8237-1367
  • Architecture: 2-out-of-3 voted relay logic

Woodward 5430-933

Product Name: Long-Thread Magnetic Pickup Sensor
Product Introduction: A high-performance magnetic pickup (MPU) sensor designed to detect rotational speed and position in turbines, engines, and rotating machinery. It features a long 5/8-18 UNF thread for flexible mounting depth adjustment.
Technical Specifications:
  • Thread: 5/8-18 UNF (long thread version)
  • Output: Passive AC sine wave signal

Woodward 5417-557

Product Name: DPC-1 RS-232 Configuration Cable
Product Introduction: A dedicated RS-232 serial configuration cable for connecting a PC to Woodward's power generation and control devices. It provides a direct, isolated serial link for device setup and monitoring.
Technical Specifications:
  • Interface: DB-9 (RS-232) to RJ45 (non-Ethernet)
  • Isolation: Galvanic isolation between PC and Woodward equipment

Woodward 5417-1251

Product Name: DPC-USB Configuration Cable (USB-UART Converter)
Product Introduction: A specialized USB-to-UART communication cable with galvanic isolation, designed to connect a PC to Woodward's easYgen, LS5, and other power management controllers for configuration, monitoring, and firmware updates.
Technical Specifications:
  • Interface: USB 2.0 (Type-B) to RJ45 (UART)

Woodward 5233-2089

Product Name: High-Performance Industrial Control Module
Product Introduction: A robust, compact control unit designed for precise regulation and monitoring in demanding industrial environments. It features a high-speed processor and versatile I/O for a wide range of automation applications.
Technical Specifications:
  • Processor: 32-bit high-performance embedded microprocessor
  • Memory: 8 MB Flash, 4 MB RAM

Woodward 505XT 8200-1311

Product Name: 505XT Digital Turbine Control Module
Product Introduction: An advanced, next-generation digital controller for steam turbines, offering enhanced performance, expanded I/O, and modern communication capabilities. It supports complex control strategies and seamless integration with industrial networksWoodward.
Technical Specifications:
  • Power Input: LV (18–32 VDC) or HV (88–264 VAC / 90–150 VDC)

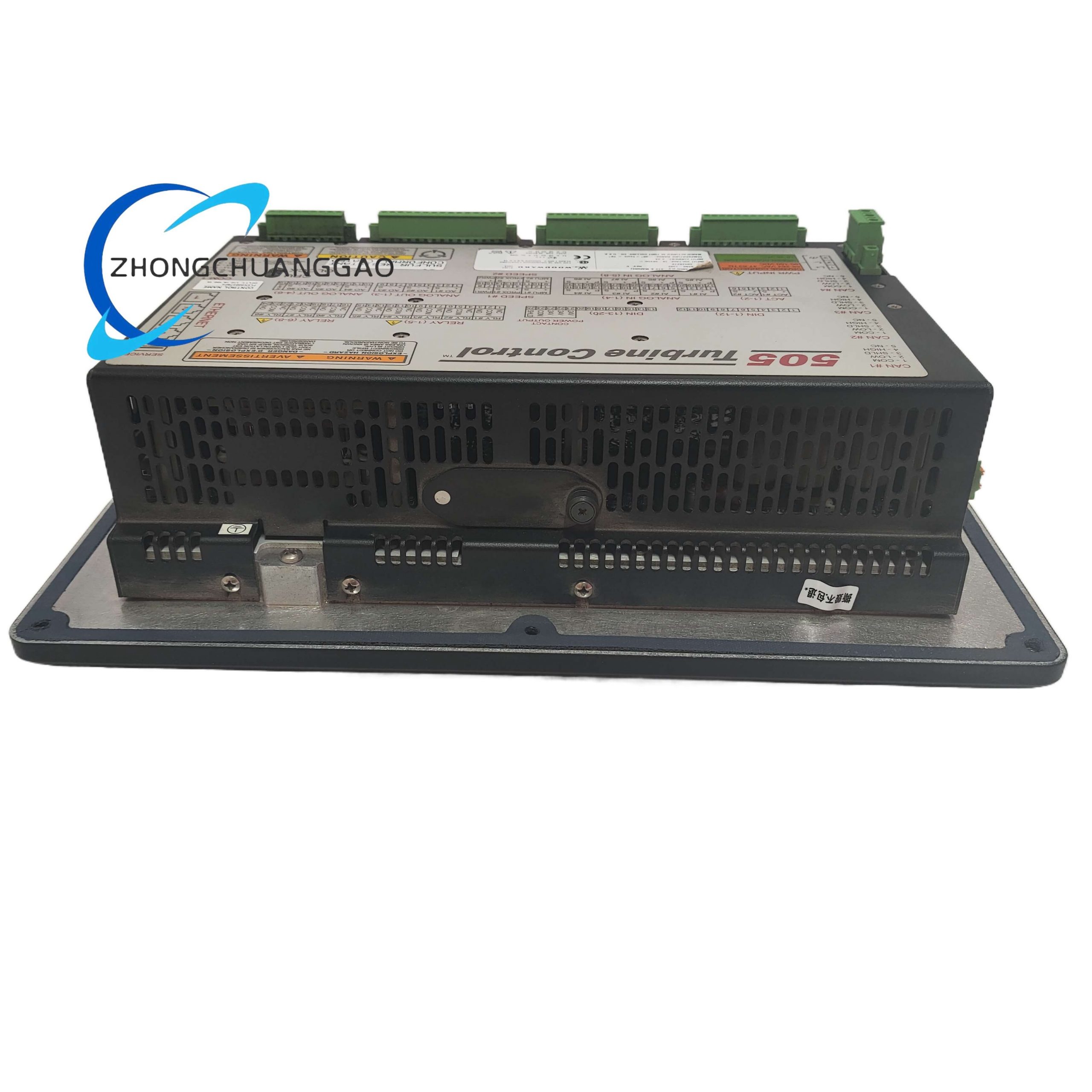

Woodward 505D 8200-1302

Product Name: 505D Digital Governor Turbine Control Module
Product Introduction: A high-performance digital governor with integrated graphical HMI, designed for precise control of steam turbines in Zone 2 hazardous locations. It combines advanced control algorithms with user-friendly operation for reliable turbine speed and load management.
Technical Specifications:
  • Power Input: 18–32 VDC (low voltage DC)

Woodward PCU2000ETH DV4.3.0

Product Name: Industrial Ethernet Interface Module (Version 4.3.0)
Product Introduction: A specialized Ethernet communication module with enhanced firmware version 4.3.0, optimized for reliable data transmission in industrial automation environments.
Technical Specifications:
  • Ethernet Standard: IEEE 802.3, 10/100 Mbps
  • Firmware Version: DV4.3.0

Woodward PCU1500S7

Product Name: Profibus Communication Interface Module
Product Introduction: A high-performance Profibus communication module designed to facilitate reliable data exchange between industrial control systems and field devices.
Technical Specifications:
  • Interface: Profibus DP communication port
