Woodward 2301A 9907-01

Product Name: 2301A Forward Acting Speed Control
Product Introduction: An electronic full-authority speed control module that regulates the speed or load of diesel engines, gas engines, steam turbines, or gas turbines based on process demands or external control signalsWoodward.
Technical Specifications:
  • Control Signal Input: 4–20 mA or 1–5 Vdc

Woodward 2301D 8273-501

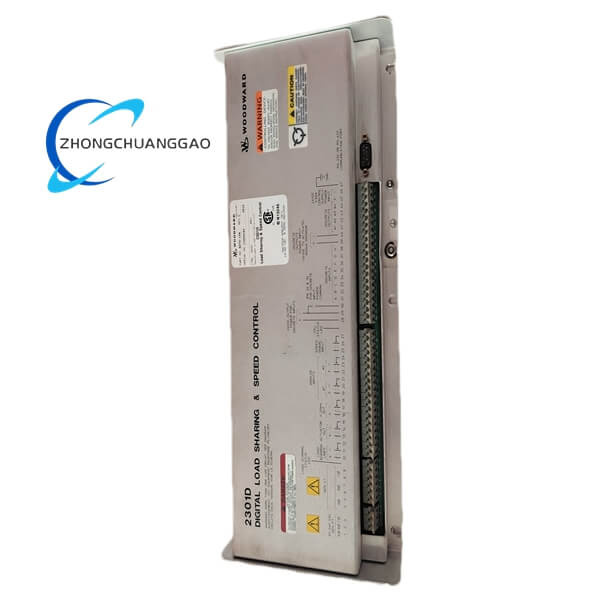

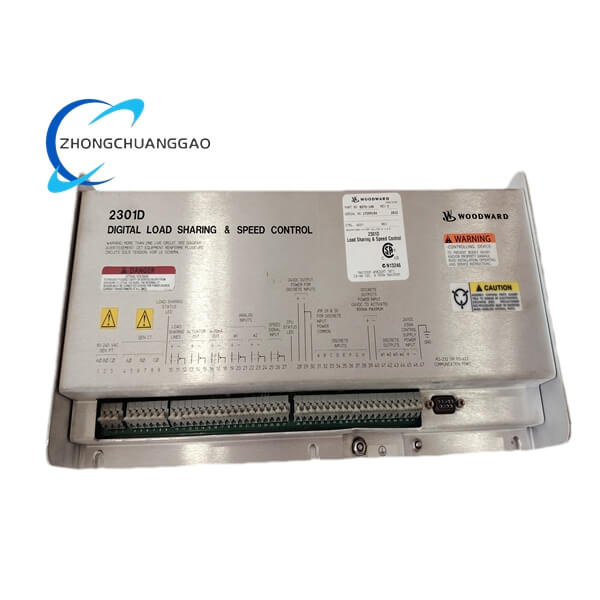

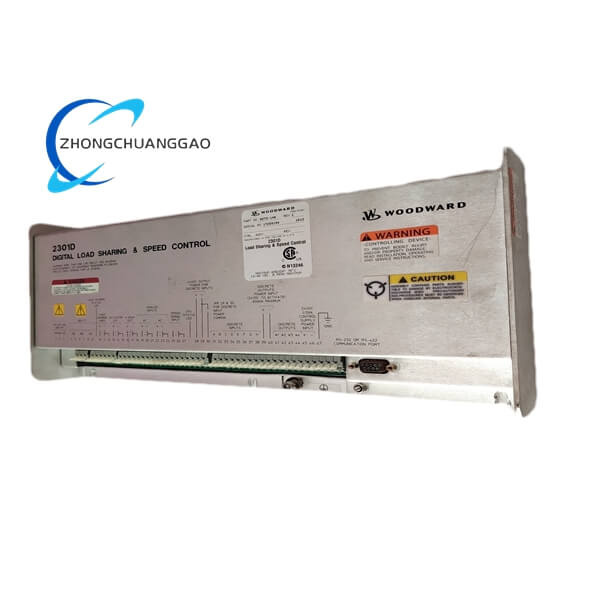

Product Name: 2301D Digital Load Sharing and Speed Control
Product Introduction: A microprocessor-based digital control unit that integrates and enhances the functions of 2301A analog controls, providing advanced load sharing and speed regulation for engines and turbinesWoodward. Designed for ordinary, non-hazardous locations with 24 VDC input power.
Technical Specifications:
  • Power Input: 24 VDC (18-40 VDC range)

Woodward 1766-541

Product Name: SMM40 Speed Adjusting Motor
Product Introduction: A compact 24VDC electric motor designed for Woodward governor systems, providing controlled rotational motion for speed control actuators in various engine applications.
Technical Specifications:
  • Voltage: 24 VDC
  • Current: 0.15A

Woodward 1766-523

Product Name: SMM40 IP44 Speed Adjusting Motor
Product Introduction: A 24VDC electric motor designed specifically for Woodward governor systems, providing precise mechanical positioning for speed control actuators in engine and turbine applications.
Technical Specifications:
  • Voltage: 24 VDC
  • Current: 5A
  • Speed: 4 RPM

Woodward 1680-622

Product Name: Magnetic Pickup (MPU) Speed Sensor
Product Introduction: A passive electromagnetic speed sensor used to detect rotational speed of gear teeth or similar targets, providing an AC voltage signal proportional to target speed for engine and turbine control systems.
Technical Specifications:
  • Type: Passive magnetic pickup (no external power required)

Woodward 1680-202835

Product Name: SIL-3 Rated Magnetic Pickup Speed Sensor
Product Introduction: A high-integrity speed sensing device designed for safety-critical turbine and engine control systems, certified for SIL-3 applications per IEC 61508 standards. It provides reliable rotational speed detection for safety shutdown and overspeed protection functions.
Technical Specifications:
  • Safety Integrity Level: SIL-3 certified

Woodward 8404-1001

Product Name: Woodward 8404-1001 L-Series Actuator (Speed Control, 6-Shaft, Standard Cover, No CAN)
Product Introduction: An integrated engine speed control actuator from the L-Series, combining an electric actuator with microprocessor-based control software. It features a 6-shaft configuration and standard cover, designed for direct engine mounting without CAN communicationWoodward.
Technical Specifications:
  • Actuator Type: Electric, bi-directional

Woodward 8404-030

Product Name: Woodward 8404-030 L-Series Integrated Throttle Body (ITB)
Product Introduction: A compact, integrated throttle body with built-in digital position control, part of the L-Series engine management system. It combines a die-cast aluminum throttle body with a fully programmable digital controller and bi-directional actuatorWoodward.
Technical Specifications:
  • Throttle Size: Standard industrial engine configuration

Woodward 8402-271

Product Name: Woodward 8402-271 Electromagnetic Intake Valve (P/N 5852-1036)
Product Introduction: A high-speed electromagnetic intake valve designed for precise air/fuel control in modern engine management systems. It provides fast response and reliable operation for industrial and automotive engine applications.
Technical Specifications:
  • Actuation Type: Electromagnetic solenoid

Woodward 8292-002

Product Name: Woodward 8292-002 Digital Controller (Isochronous Generator with Load Sharing)
Product Introduction: A microprocessor-based digital controller for generator sets, providing precise isochronous speed control and advanced load-sharing capabilities. It features a user-configurable interface and programmable control parameters for engine optimizationWoodward.
Technical Specifications:
  • Power Supply: 18–36 VDC
  • Speed Input: MPU (750–6000 Hz)

Woodward 8290-195

Product Name: Woodward 8290-195 Flo-Tech Speed Controller (24 VDC)
Product Introduction: A specialized speed controller for Flo-Tech fuel systems, operating on 24 VDC. It is designed for precise fuel flow control and is a legacy component, with recommended replacement by 8245-020 ITB modules.
Technical Specifications:
  • Power Supply: 24 VDC
  • Control Interface: 23-pin connector, 0–20 mA signal

Woodward 8290-191

Product Name: Woodward 8290-191 EPG Speed Control Module (24 VDC, Droop, Diesel)
Product Introduction: A 24 VDC EPG speed control module featuring droop control mode, designed for diesel engine systems requiring load-proportional speed regulation. It ensures stable operation in parallel generator set configurations.
Technical Specifications:
  • Power Supply: 24 VDC
  • Control Mode: Droop (speed decreases with load)
