Technical Specifications

Form Factor: C-size VXI, 1 slot

Channels: 8 or 16

Resolution: 16 bits

Voltage Output: ±16 V

Voltage Resolution Step: 488 µV

Current Output: 0 to ±20 mA

Current Resolution Step: 610 nA

Accuracy: ±0.05% of reading + 3 mV for voltage; ±0.09% + 5 µA for current

Isolation: Channel-to-channel and channel-to-chassis

Update: Individual or simultaneous channel update

Bus: VXI A16 / A24

Operating Temperature: 0 °C to +55 °C

Storage Temperature: -40 °C to +85 °C

Functional Features

Independent voltage or current mode per channel

Local or remote sensing

Software-controlled calibration

Synchronous multi-channel updates

Built-in self-test

Application Scenarios

Automatic test equipment

Aerospace test systems

Semiconductor test

Process control simulation

Laboratory measurement

Working Principle

The module receives digital commands over the VXI backplane, converts them into precision analog voltage or current signals, and outputs them through a terminal block to instruments, actuators, or test loads.

Structural Characteristics

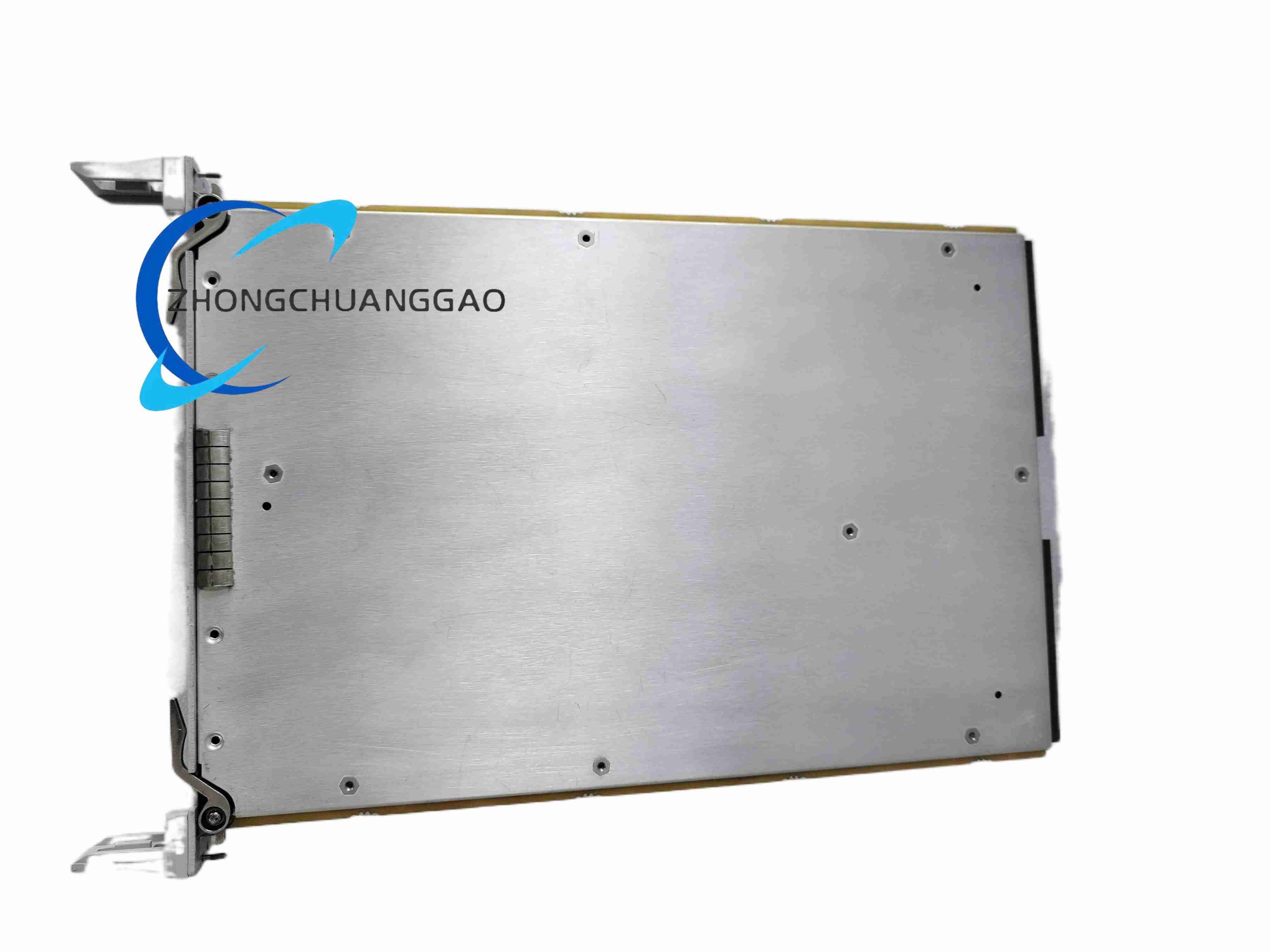

Single-slot VXI module

Screw-terminal QUIC connector block

Jumpers for channel configuration

CALBUS connection for in-place calibration

Installation Requirements

Insert into compatible C-size VXI chassis

Use proper terminal block wiring

Confirm +5 V and +12 V VXI backplane power

Avoid excessive EMI sources

Usage Notes

Do not exceed compliance voltage

Calibrate periodically with calibrated DMM

Prevent short circuits on output terminals

Use shielded cables for sensitive analog signals
