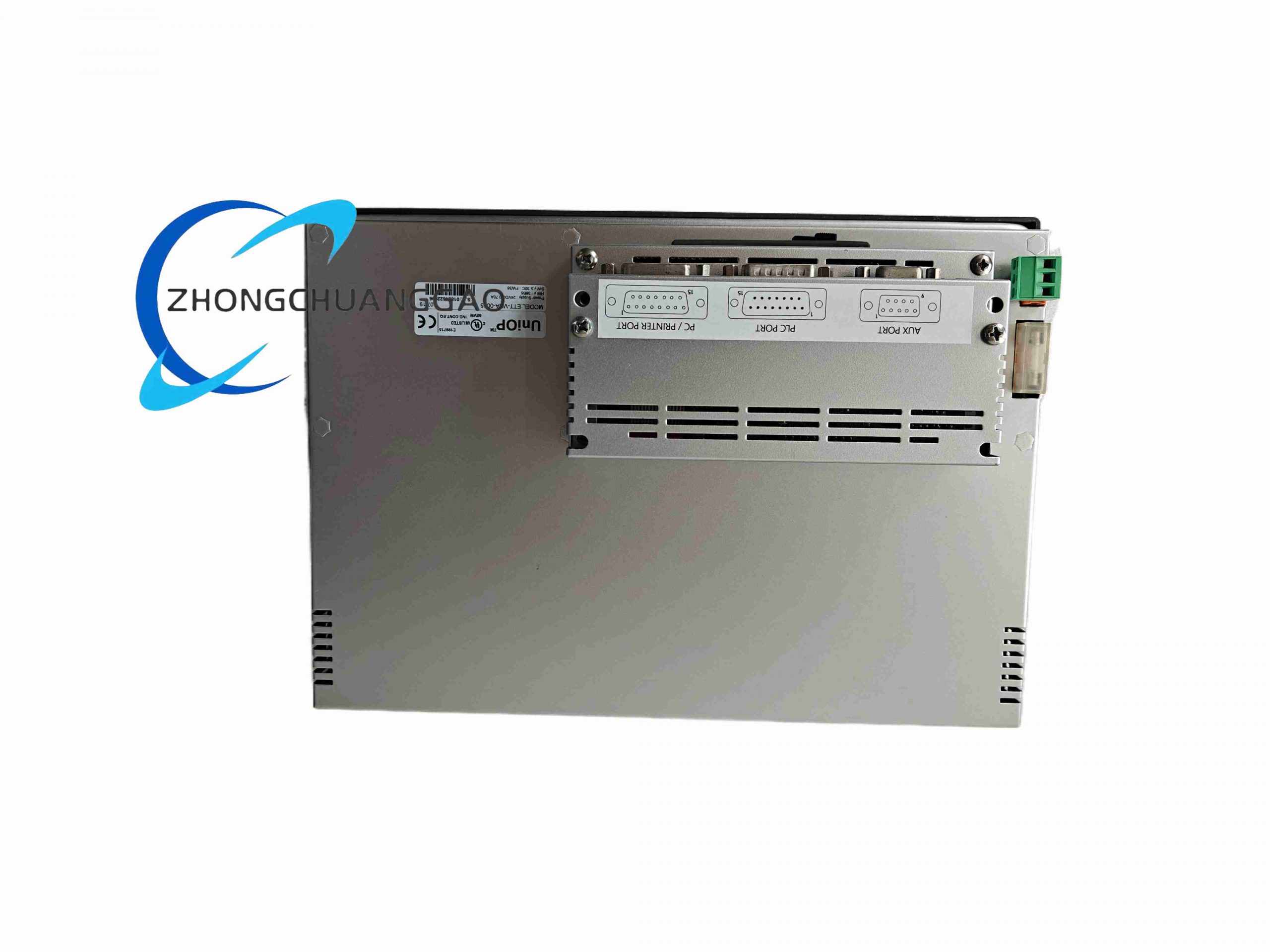

UniOP ETT-VGA-0045
Product name
UniOP ETT-VGA series 10.4-inch industrial touch screen panel, model ETT-VGA-0045.
UniOP ETT-VGA series 10.4-inch industrial touch screen panel, model ETT-VGA-0045.
Product overview
An industrial HMI control display panel with VGA-resolution TFT display and resistive touch, used for equipment monitoring, operation, and alarm management in automation and process-control systems.
An industrial HMI control display panel with VGA-resolution TFT display and resistive touch, used for equipment monitoring, operation, and alarm management in automation and process-control systems.
Detailed content
Technical specifications
- Screen size: 10.4 inches
- Display type: TFT LCD, CCFL backlight
- Resolution: 640 × 480 (VGA)
- Touchscreen: resistive
- Power input: 24 V DC (+10%, −15%)
- Protection class: IP65
- Operating temperature: 0 °C to 45 °C
- Display capability: supports text (up to 30 × 80 characters) and graphic/text mixed display
Functional features
Recipe management functions, Uninet networking, user-defined characters, direct connection to PLC programming ports, real-time data display, parameter adjustment, and alarm indication.
Recipe management functions, Uninet networking, user-defined characters, direct connection to PLC programming ports, real-time data display, parameter adjustment, and alarm indication.
Application scenarios
Industrial automation lines, chemical/pharmaceutical/utility process control, machine operator stations, monitoring and alarm systems, data visualization panels.
Industrial automation lines, chemical/pharmaceutical/utility process control, machine operator stations, monitoring and alarm systems, data visualization panels.
Installation requirements
- Verify supply voltage and polarity before energizing
- Configure communication parameters to match the connected controller
- Mount using compatible accessories and cables; maintain the panel seal
- Confirm firmware/driver compatibility with the host system
Precautions
- Protect the display from impact, moisture ingress, and conductive dust
- Do not exceed the specified temperature range
- Use only specified replacement parts and touch panels
