Arista BOXPC-140A
Product Name

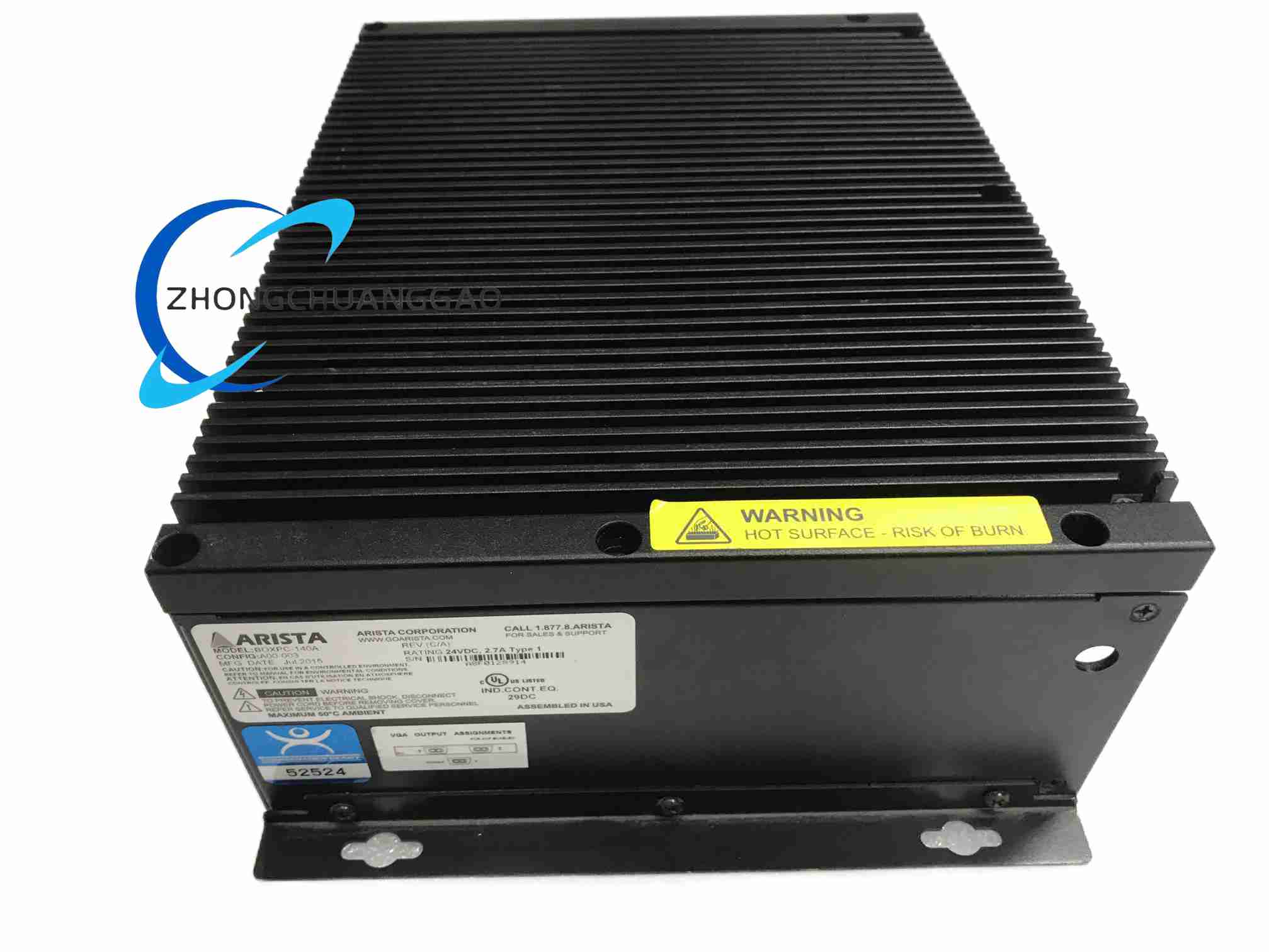

Arista BOXPC-140A fanless embedded industrial computer for automation, IoT and edge computing.
Product Overview
The system provides a compact x86 computing platform with multiple serial, USB, Ethernet and storage options. It is designed for panel or machine-mount installation where reliable operation, wide connectivity and low maintenance are required.
Detailed content
Technical Specifications
Processor: Intel Celeron J1900 quad-core, 2.0 GHz base frequency.
Memory: one 204-pin DDR3L SO-DIMM slot, 1066/1333 MHz, maximum 8 GB.
Storage: one 2.5 inch SATA III drive bay and one full-size mSATA socket.
Display: one HDMI and one VGA output.
Network: two Intel i210-AT Gigabit Ethernet ports.
USB: four USB 2.0 and two USB 3.0 ports.
Serial: one RS-232/422/485 port and three RS-232 ports.
Expansion: one Mini PCIe slot, half-size card support.
Power input: 12 V DC.
Dimensions: 210×165×54 mm.
Operating temperature: 0 to 50°C.
Storage temperature: −20 to 80°C.
Humidity: 10 to 95 percent at 40°C, non-condensing.
Vibration: 5 g at 5 to 500 Hz with CFast; 1 g with SSD, three-axis.
Shock: 50 g peak for 11 ms with CFast; 20 g peak for 11 ms with SSD.
Functional Features
Quad-core low-power processor supports multithreaded automation software.
Dual Gigabit LAN enables network redundancy, segmentation and industrial protocol communication.
Mixed legacy and modern I/O covers RS-232/422/485, USB 3.0 and high-speed storage.
Mini PCIe allows wireless, cellular or additional fieldbus expansion.
Application Scenarios
Factory automation controllers and human-machine interface hosts.
IoT gateways, edge data collection and remote device management.
Digital signage, intelligent transportation, robot control and machine vision hosts.
Performance Parameters
Computing throughput suits SCADA clients, OPC servers, database logging and lightweight vision or protocol conversion.
Storage performance depends on installed SATA SSD or mSATA module.
Serial communication performance depends on baud rate, handshake and driver configuration.
Material Composition
Chassis uses aluminum or steel alloy with surface treatment for industrial environments.
Internal PCB assemblies use lead-free commercial-grade components.
Connectors use gold- or tin-plated contacts selected for repeated insertion reliability.
