Technical specifications: Repetitive peak reverse voltage 1600 V; rated average on-state current 116 A; surge current rating 2.4 kA; peak on-state voltage 1.5 V; maximum gate trigger current 150 mA; maximum gate trigger voltage 2.5 V; maximum holding current 200 mA.
Functional features: Dual SCR configuration in one isolated module; planar passivated chip technology; direct copper bonded Al2O3 ceramic substrate; electrically isolated base plate.
Performance parameters: Repetitive peak off-state current 5 mA; operating temperature range -40 °C to +125 °C.
Application scenarios: Battery chargers, welding equipment, plating power supplies, regulated power supplies, temperature control circuits, and speed control circuits.

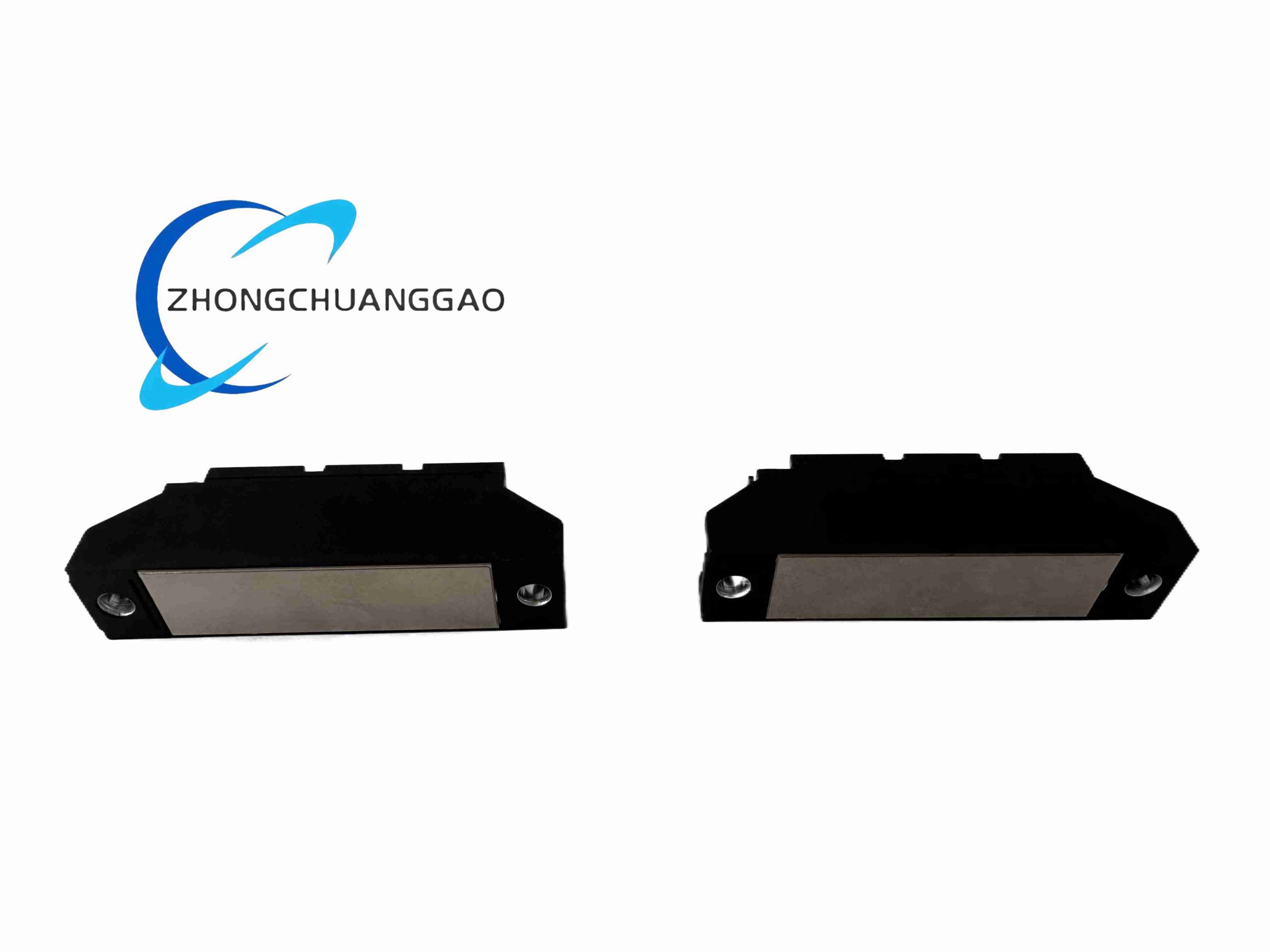

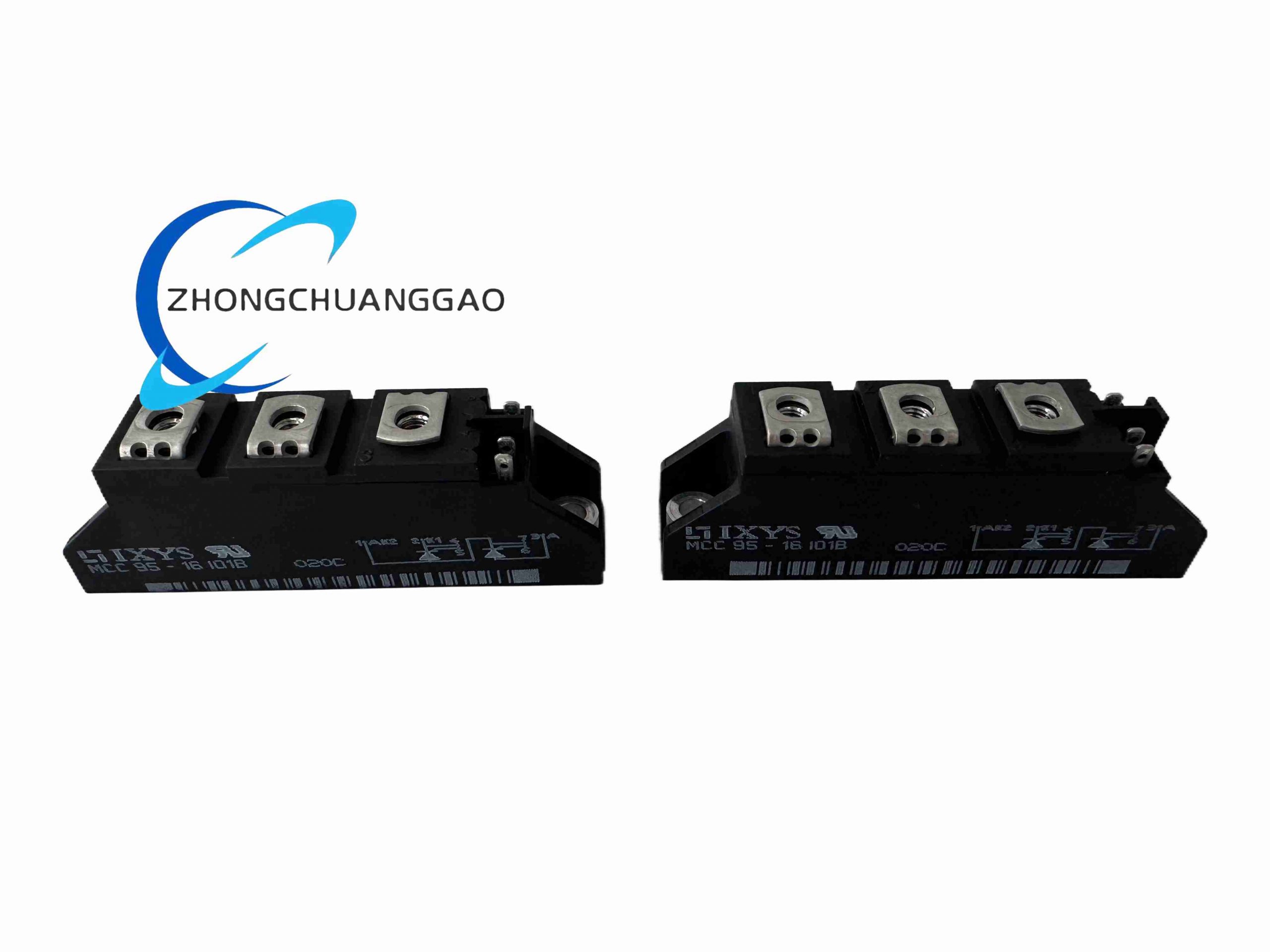

Material and structure: TO-240AA package; dimensions 92 mm × 20.8 mm × 30 mm; 7-pin chassis/panel mount; screw mounting.
Installation requirements: Requires appropriate heatsink and thermal interface material; mounting torque and insulation must follow the datasheet; gate wiring should be kept short to avoid false triggering.
Notes: Country of origin is Germany. This is a high-power semiconductor module; circuit design must include overvoltage, overcurrent, and dv/dt protection.
