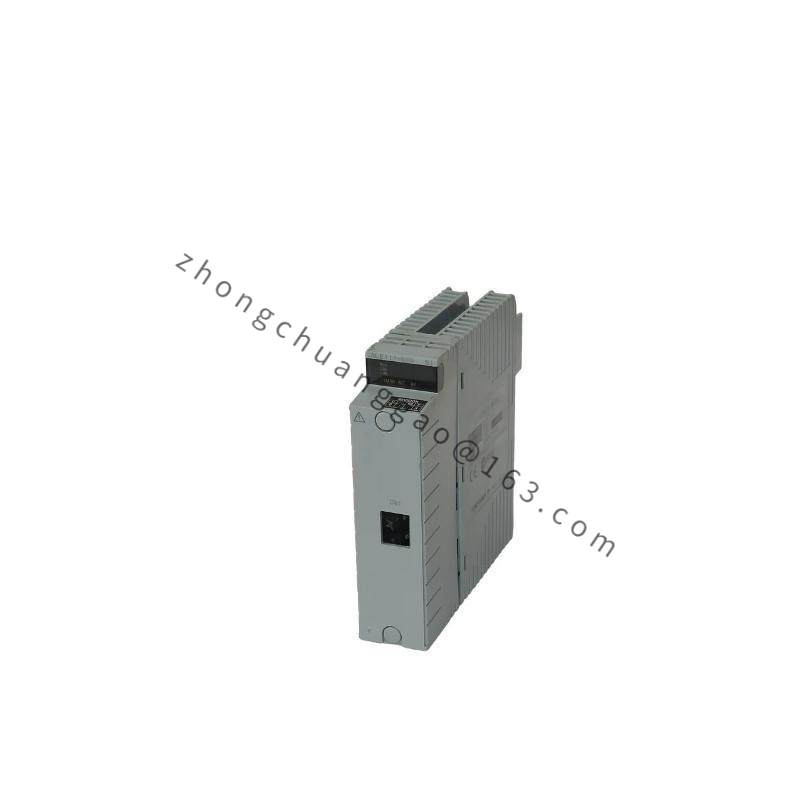

Yokogawa ALE111-S00 Ethernet Communication Module – Advanced Networking Solution for Industrial Control Systems
The Yokogawa ALE111-S00 Ethernet Communication Module is designed for seamless integration into industrial control systems, providing reliable communication over 10BASE-T networks at speeds up to 10 Mbps.
Detailed content
Physical Layer Interface:IEEE802.3 10BASE-T
Connection Method:Point-to-point
Connector:RJ-45
Communication Function:Half-duplex
Transmission Speed:10 Mbps
Transmission Route:100 ohm twisted-pair cable (not shielded)
Transmission Distance:1 segment, 100 m
Installation Method:Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40
Number of Ports:1 port
Media Access Control:CSMA/CD
Communication Functions:Efficient data communication in industrial control systems
Engineered for high performance in industrial automation, the Yokogawa ALE111-S00 Ethernet Communication Module boasts a compact yet durable design that withstands the rigors of manufacturing floors and process plants.
This module supports versatile connection options, ensuring compatibility with a wide range of Yokogawa’s field devices and control systems such as CENTUM VP and ProSafe-RS.
With its 10Mbps transmission speed and half-duplex communication function, the ALE111-S00 guarantees fast and reliable data transfer over standard unshielded twisted-pair cables, up to 100 meters in length.
The module’s installation flexibility on various mounting panels allows for easy integration into existing infrastructure, reducing downtime and facilitating quick deployment.
Equipped with robust media access control protocols like CSMA/CD, the ALE111-S00 minimizes network congestion and ensures smooth operation in high-demand industrial settings.
