Sensor Type:Inductive Magnetic Cylinder

Model:BIM-UNT-AP7X

Sub-Type:NO

Application Environment:IP67

Material:PA12 Housing + Sensing Face

Switching Frequency:500Hz

Mounting Mode:Flush

Sensing Range:10 mm

Connector:Minifast® 7/8”-16Un, Plastic, Male

Voltage:10-30 VDC, Polarity Protected, Pulsed

Scp Type:Embeddable

Output Function:Normally Open – PNP

Number of Pins:4

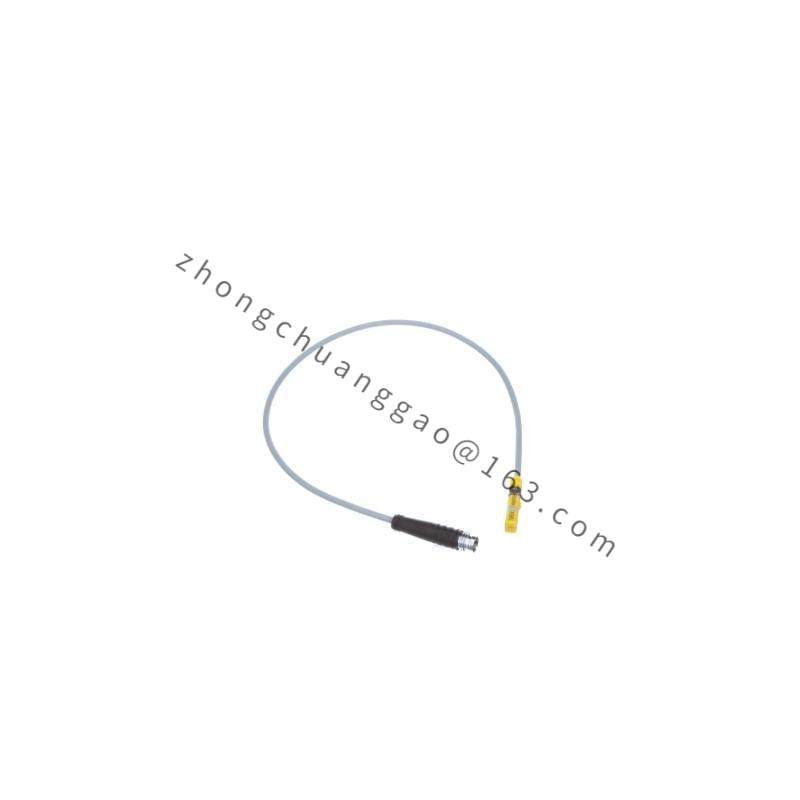

    Introducing the Turck BIM-UNT-AP7X Inductive Magnetic Cylinder Sensor NO, engineered for precision control in demanding industrial settings. This sensor is designed to withstand harsh conditions, offering reliable and accurate position detection for hydraulic cylinders.

    Featuring an IP67 rating, it ensures protection against dust and water ingress, making it suitable for use in a wide range of industrial environments. Its PA12 housing and sensing face guarantee durability and resistance to wear.

    With a maximum switching frequency of 500Hz, this sensor provides quick response times, crucial for systems requiring high-speed monitoring and control. The flush mounting option simplifies installation, minimizing the footprint and integrating seamlessly with existing machinery.

    The sensor’s design includes a Minifast® connector compatible with standard hydraulic systems, facilitating easy integration and maintenance. The 10mm sensing range is ideal for applications where precise positioning is necessary.

    Equipped with a Normally Open – PNP output function and 4 pins, this sensor is compatible with various control circuits, enhancing its versatility. Its compact size and robust construction make it an excellent choice for automation and control systems in heavy industries.
