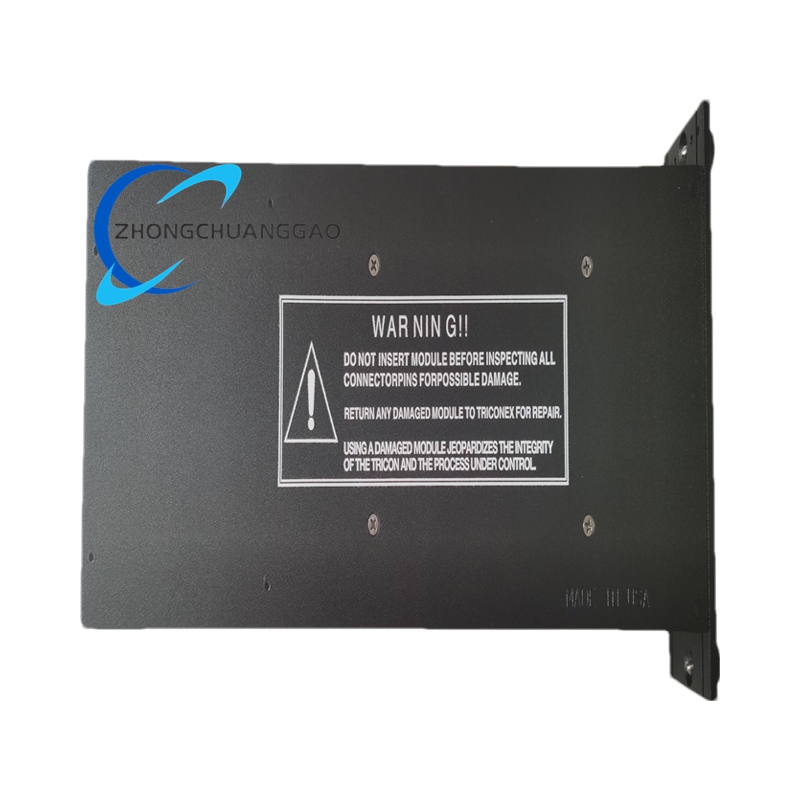

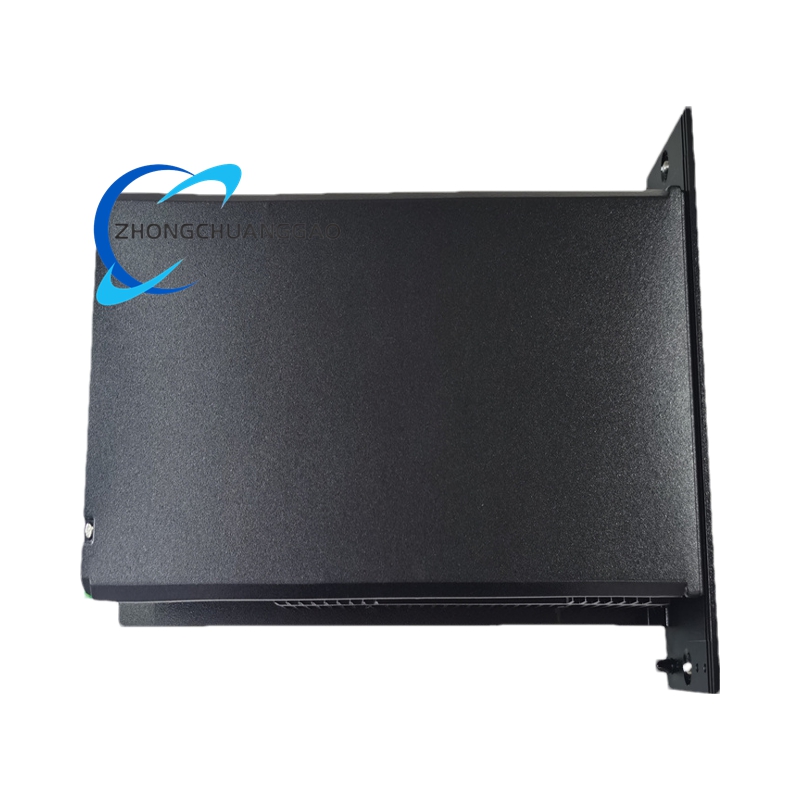

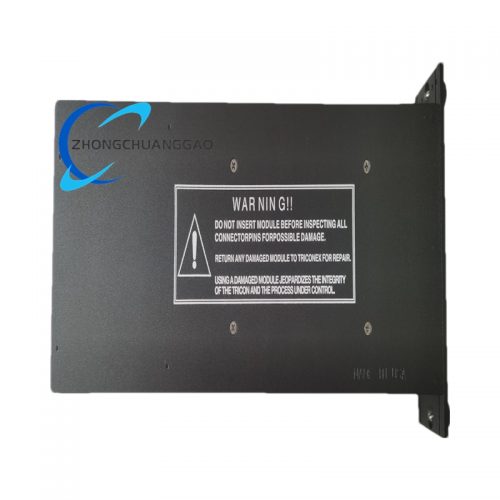

TRICONEX 8310 High-Density Power Module

Functional Features

  1. Triple Modular Redundancy (TMR)
    • Three independent sub-circuits with hardware/software voting ensure uninterrupted power during faults .
    • Automatic switch to backup power if primary fails, critical for SIL 3 applications .
  2. Hot-Swap & Modular Design
    • Modules replaceable online without system shutdown .
    • DIN-rail or panel mounting for flexible integration .
  3. Diagnostics & Safety
    • LED indicators for real-time fault detection (e.g., blown fuse, overload) .
    • Conformal PCB coating resists dust, moisture, and chemical corrosion .
  4. Wide Compatibility
    • Supports Triconex Main Chassis (8110), Expansion Chassis (8111/8121), and RXM Chassis (8112) .
    • Interfaces with I/O modules up to 12 km away via fiber-optic extenders .
WhatApp
WeChat

Detailed content

Technical Specifications

Category Specification
Core Function Power distribution for Triconex SIS chassis (Main/Expansion/RXM)
Input Voltage AC: 85–140 VAC @ 47–63 Hz; DC: 95–180 VDC
Output Voltage 24 VDC
Power Rating 175 W @ 60°C
Fuse Protection 5 A, time-delay type
Physical Dimensions Approx. 173 × 173 × 55 mm (H × W × D)
Weight 2.8 kg (operational); 3.8 kg (shipping)
Operating Temperature -40°C to +70°C  / -20°C to +60°C (variant)
Protection Rating IP20 (terminal); IP65/67 with enclosure



Application Scenarios

1. Critical Process Industries

  • Oil & Gas: Powers emergency shutdown systems (ESD) for pipelines/refineries; withstands explosive atmospheres (ATEX Zone 2) .
  • Nuclear Plants: Backup power for reactor safety controls; SIL 3 compliance per IEC 61508 .

2. Power Infrastructure

  • Grid Substations: Feeds protection relays and turbine control systems during voltage fluctuations .
  • Renewable Energy: Ensures stable power for wind turbine pitch/yaw systems in harsh environments .

3. Industrial Automation

  • Chemical Plants: Redundant power for toxic gas monitoring sensors and valve actuators .
  • Automotive Manufacturing: Hot-swappable modules for assembly line robotics .

4. Transportation & Infrastructure

  • Railway Signaling: Powers fail-safe signaling networks; operates at -40°C .
  • Water Treatment: Drives pump station controls with IP67-rated enclosures for humid environments .

Compliance & Certifications

  • Functional Safety: SIL 3 (IEC 61508) .
  • Environmental: RoHS, REACH, CE, UL .
  • Explosion Protection: ATEX Zone 2 .

Resolved Evidence Conflicts

Conflict Area Misattribution Verified Fact Source
Product Identity AI module / Communication module Power supply module
Input Voltage 240 VAC only Dual-range: 85–140 VAC or 95–180 VDC
Weight 1.5 kg / 6 kg Standardized: 2.8 kg (operational)
Output Current 1A–8A (inconsistent) Fuse-limited: 5A (no direct current spec)
