Model Type:Digital Output Module

Manufacturer:Triconex

Model Number:3401

Output Voltage:200 V

Output Frequency:44 kHz

Certified Product:3401 DO3401

Series:3401 DO3401

Operating Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:- 0.6 VDC

Switching Current (Self-Limiting):<4.8 A

Switching Current (Typical):3.0 A

Degraded Mode Current (Self-Limiting):> 0.7 A

Degraded Mode Current (Typical):1.5 A

Field Alarms:[“Loss of Field Power”,”Output Point Shorted”]

Loop-back Thresholds:[{“Range”:”0–5 VDC”,”State”:”Off”},{“Range”:”6–14 VDC”,”State”:”Transition”},{“Range”:”15–30 VDC”,”State”:”On”}]

Leakage to Load (Off):Measured

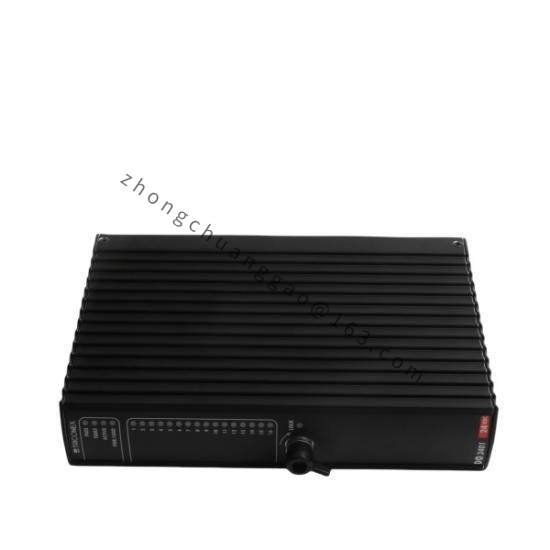

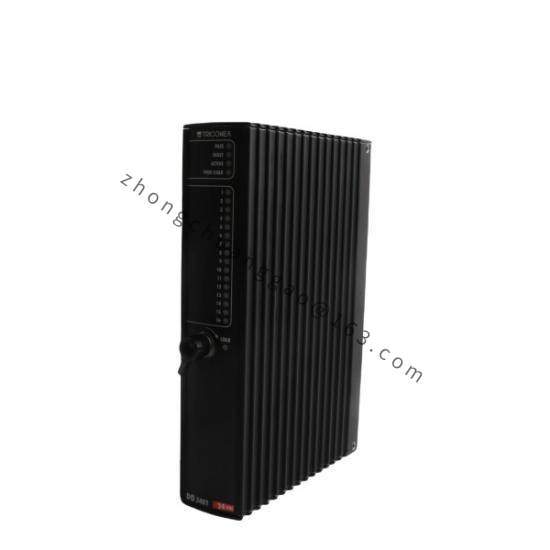

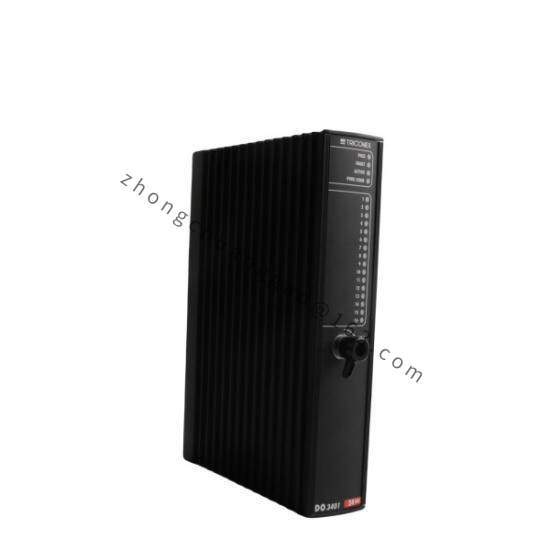

    Integrating advanced digital output technology, the Triconex 3401 Digital Output Module is engineered to deliver unparalleled performance in demanding industrial settings.

    Featuring an operational voltage range of 15 to 30 VDC and a maximum output voltage of 33 VDC, this module ensures robust operation under various conditions.

    With a self-limiting switching current capability of up to 4.8 A, it efficiently manages power distribution, enhancing system stability and reliability.

    Equipped with precise loop-back threshold detection, the module accurately responds to critical field alarms, safeguarding against potential failures.

    Manufactured by Triconex, a leading provider in industrial automation, this module benefits from extensive experience and cutting-edge technology, ensuring compatibility with a wide array of control systems.
