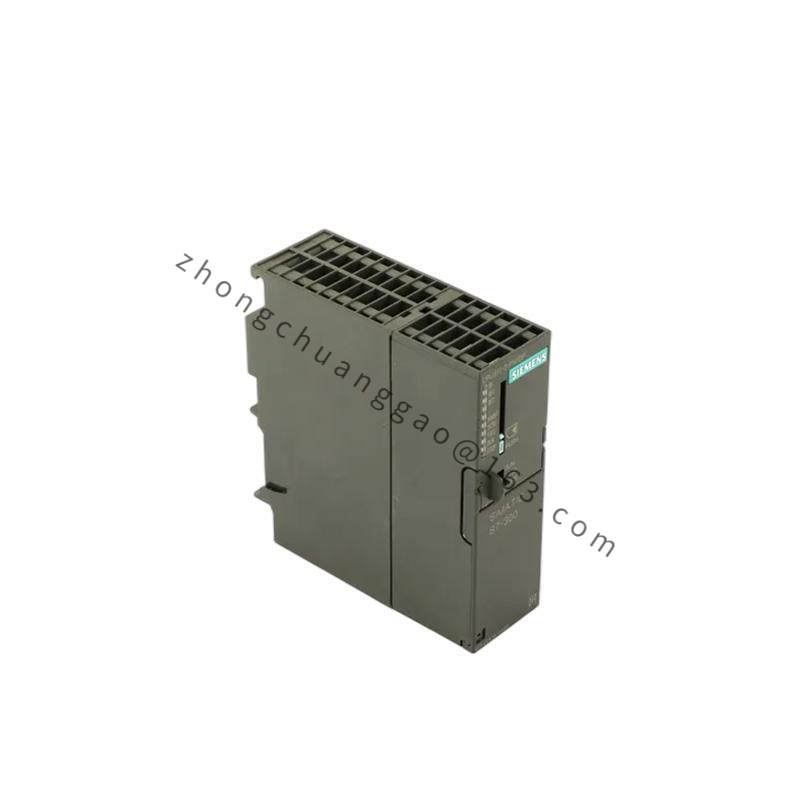

SIEMENS SIMATIC S7-300 CPU 317-2 PN/DP Module, 6ES7317-2EK14-0AB0
The Siemens 6ES7317-2EK14-0AB0 CPU Module is a high-performance core component of the SIMATIC S7-300 series, designed for industrial automation control systems. It efficiently manages data processing and communication, making it ideal for applications requiring precise and reliable control operations.
Detailed content
Model Type:S7-300 CPU 317-2 PN/DP
Manufacturer(s):SIEMENS
Estimated Shipping Size:Dimensions: 13.10 x 15.00 x 5.10 cm
Weight:0.384 kg
Work Memory:1 MB
Interface MPI/DP:12 Mbit/s
Interface Ethernet PROFINET:with 2-port switch
Micro Memory Card Required:Yes
Input Voltage:208;240 Volts AC
Max. Frequency:600 Hertz
Nominal Current:4.2 Amps
Power Supply:Integrated 24 V DC
Protection Level:Complete
Communication Protocols:DeviceNet, Profibus, LonWorks, CANopen
The SIEMENS S7-300 CPU 317-2 PN/DP is a robust and versatile solution for industrial automation, designed to handle demanding tasks with precision and efficiency. This CPU module features an impressive 1MB work memory, providing ample space for program storage and data handling.
Equipped with high-speed processing capabilities reaching up to 600Hz, it ensures quick and accurate execution of control tasks. The built-in Ethernet PROFINET interface facilitates seamless integration with other networked devices, enhancing the system’s flexibility and scalability.
For added convenience and reliability, this CPU comes with an integrated 24V DC power supply, eliminating the need for external power supplies. It also offers the option to connect to various communication protocols via optional modules such as DeviceNet, Profibus, LonWorks, and CANopen, catering to diverse networking needs.
With its modular design, the CPU 317-2 PN/DP can easily be adapted to different applications and environments. It provides comprehensive protection against common industrial hazards, ensuring stable operation even in harsh conditions. The compact size and modular architecture make it suitable for a wide range of industrial settings, from small-scale machinery to large manufacturing plants.
To further enhance functionality and ease of use, the CPU supports the use of Micro Memory Cards, allowing for easy storage and backup of critical data. This feature ensures that your operations remain uninterrupted, safeguarding against potential downtime due to data loss.
