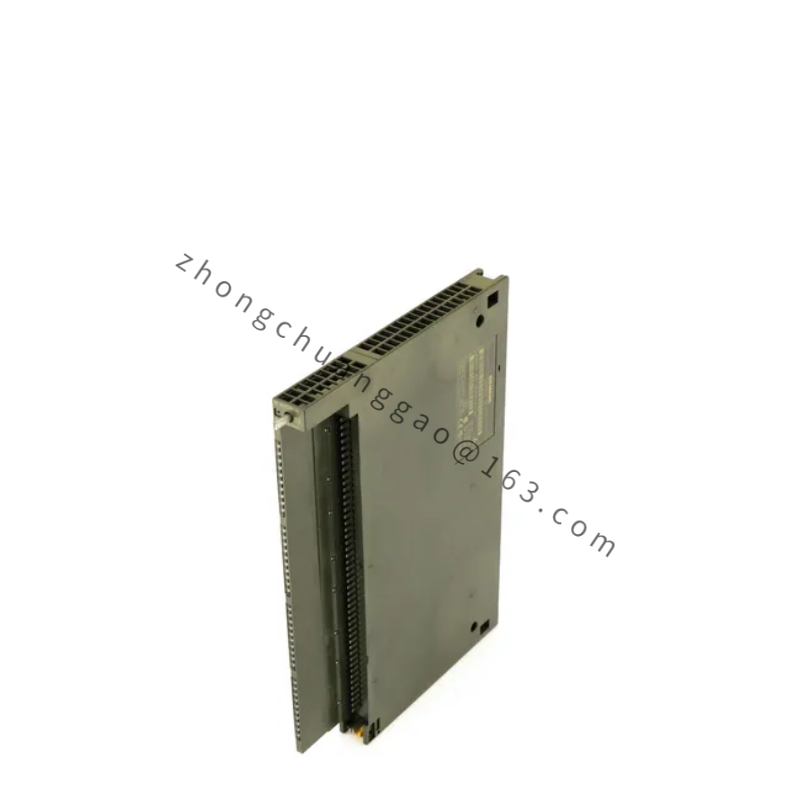

SIEMENS 6ES7422-1BH10-0AA0 – Digital Output Module, SM 422, Optically Isolated, 16 Channels @ DC24V, 2A
The SIEMENS 6ES7422-1BH10-0AA0 Digital Output Module, SM 422, is designed for industrial control applications requiring precise, isolated digital outputs. This robust device ensures reliable control over up to 16 channels, each capable of handling DC24V at 2A, making it ideal for various automation tasks.
Detailed content
Number of Outputs:16
Output Voltage:DC24V
Output Current:2A
Isolation:Optically isolated
Operating Temperature Range:-25°C to 55°C
Connection Type:Terminal block
Mounting Type:Panel mount
Protocol Compatibility:Modbus RTU
Safety Certification:CE, UL
The SIEMENS 6ES7422-1BH10-0AA0 is a state-of-the-art digital output module designed for seamless integration into industrial automation systems. Its optically isolated design ensures minimal interference with other circuits, enhancing system reliability and performance.
Each of the 16 digital output channels supports DC24V operation at 2A, providing ample power for driving actuators, solenoids, or other low-voltage devices commonly found in factory environments. This versatility makes it suitable for a wide range of applications from simple on/off controls to more complex signal processing tasks.
Featuring a separate power supply requirement, this module ensures stable and continuous operation under varying industrial conditions. Its robust construction and IP20 enclosure provide protection against dust and light splashes, ensuring longevity in harsh environments.
Installation is straightforward, with support for M12 connectors facilitating easy connection to existing wiring. The compact size (106 x 96 x 110 mm) and lightweight (200g) design make it suitable for panel mounting, optimizing space in control cabinets.
Compliance with industry standards for temperature ranges (-25°C to +60°C operational, -40°C to +85°C storage) ensures reliable operation across different geographical locations and seasons, making it an ideal choice for global industrial installations.
