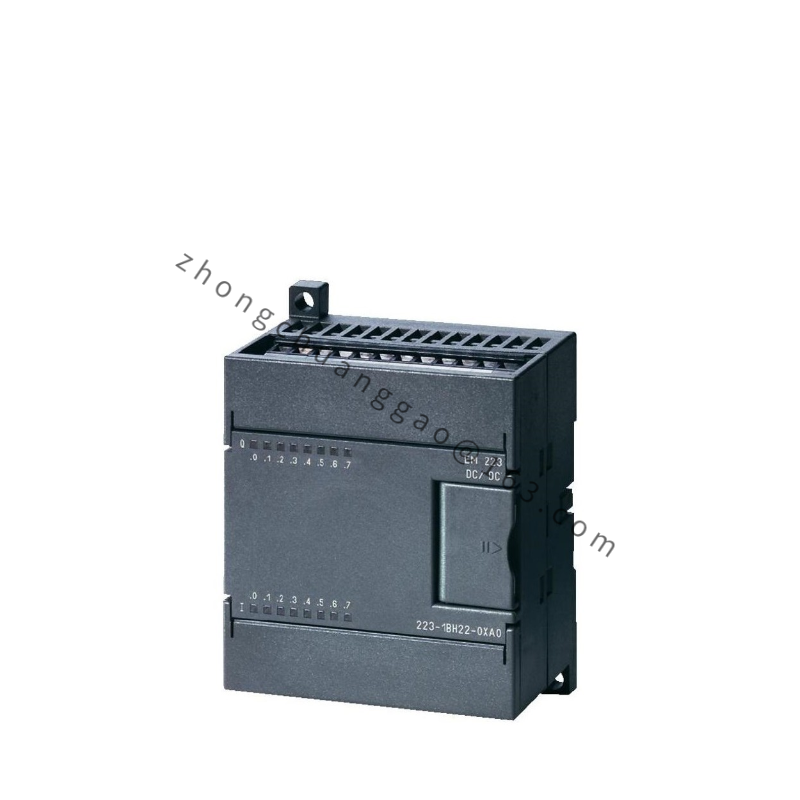

SIEMENS 6ES7223-1BH22-0XA0 EM223, Digital I/O Module, 8 Input/8 Output, 24V DC, 0.75A per Channel

The SIEMENS 6ES7223-1BH22-0XA0 EM223 is a versatile digital I/O module designed for industrial control applications. It features 8 digital inputs and 8 digital outputs, each capable of handling 24V DC power at 0.75A, making it ideal for integration into complex automation systems.

Detailed content

Model Number:6ES7223-1BH22-0XA0

Type:Digital I/O Module

Input Count:8

Input Type:Digital

Input Voltage:24V DC

Input Current:4mA per channel

Output Count:8

Output Type:Transistor

Output Voltage:24V DC

Output Current:0.75A per channel

Operating Temperature:-25°C to +60°C

Relay Contact Rating:24V DC, 0.75A

Isolation:Optical isolation

Power Consumption:Approximately 3W

Communication Interfaces:Integrated with SIMATIC S7-1200 PLC

Dimensions:100mm x 68mm x 40mm

    This SIEMENS 6ES7223-1BH22-0XA0 module is engineered for seamless integration into various industrial control systems, offering enhanced performance and reliability. With its robust design, it ensures stable operation under a wide range of environmental conditions.

    Featuring optical isolation, the module effectively protects against electrical interference, ensuring accurate data transmission and minimizing potential errors in your system.

    The inclusion of a built-in EMI filter further enhances the module’s immunity to noise and ensures smooth communication within complex industrial networks.

    With easy DC BUS sharing capabilities, this module optimizes resource utilization, making it an ideal choice for scalable and efficient control systems. It supports flexible extension options, allowing for modular expansion without compromising system integrity.

    Equipped with comprehensive protection features, the SIEMENS 6ES7223-1BH22-0XA0 is designed to withstand harsh industrial environments. Its compact size and modular design make it adaptable for various installation scenarios, enhancing system flexibility and ease of use.

SIEMENS 6ES7223-1BH22-0XA0 EM 223, 8DI/8DO, DC 24V, 0,75A
