Technical Specifications:​ Operating voltage ±15 V; operating temperature 0°C to 55°C; storage temperature -40°C to 70°C; dimensions 114 × 76 × 38 mm; weight 0.55 kg; input impedance 50 Ω; CE and UL certifications.

Functional Features:​ High-precision torque measurement; robust industrial housing; diagnostics-ready output for spindle controllers; seamless integration with Rexroth tightening systems.

Application Scenarios:​ Manufacturing assembly lines, automotive torque control, aerospace assembly and maintenance, general industrial tightening where documented torque values are required.

Performance Parameters:​ Designed for consistent torque signal output under 0–55°C operating ambient; suitable for continuous production monitoring when powered within ±15 V.

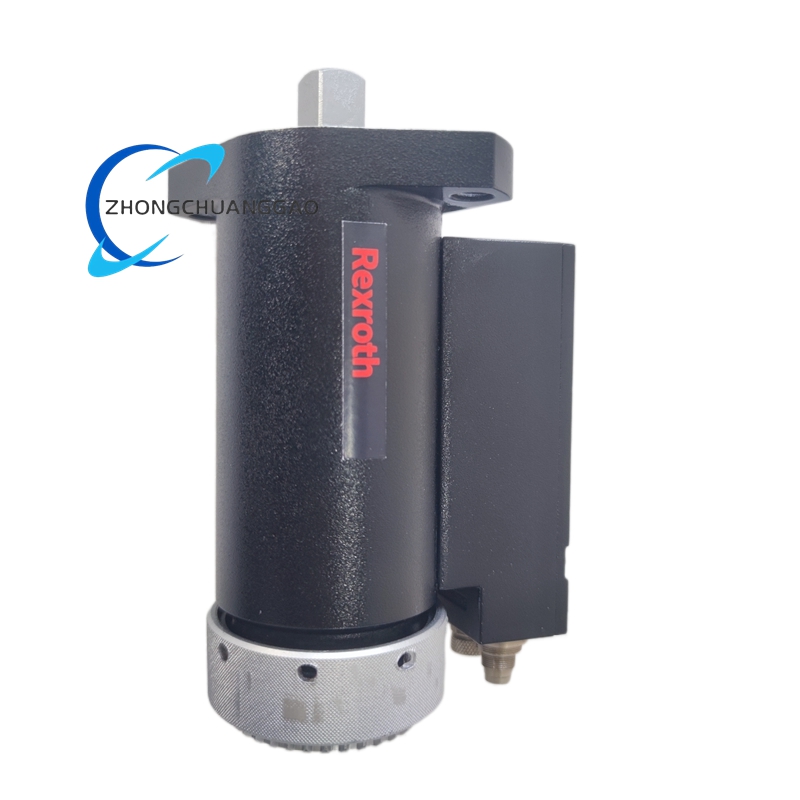

Material And Structure:​ Industrial transducer enclosure with mounted connector interface; compact 114 mm width class package for spindle or fixture installation.

Working Principle:​ Receives torque-induced electrical signals from the spindle sensor interface, conditions and scales the values, and transmits measurement data to the tightening controller for monitoring and documentation.

Installation Requirements:​ Install with adequate ventilation; verify ±15 V supply and polarity; secure mechanical mounting; use specified spindle/transducer cabling; avoid mechanical shock beyond the application rating.

Usage Notes:​ Inspect mounting and connectors periodically. Some supplier listings also describe this number as a generic digital control or amplifier module; confirm the nameplate and system series because torque-transducer data above applies only to the 4DMC160 measurement variant.
