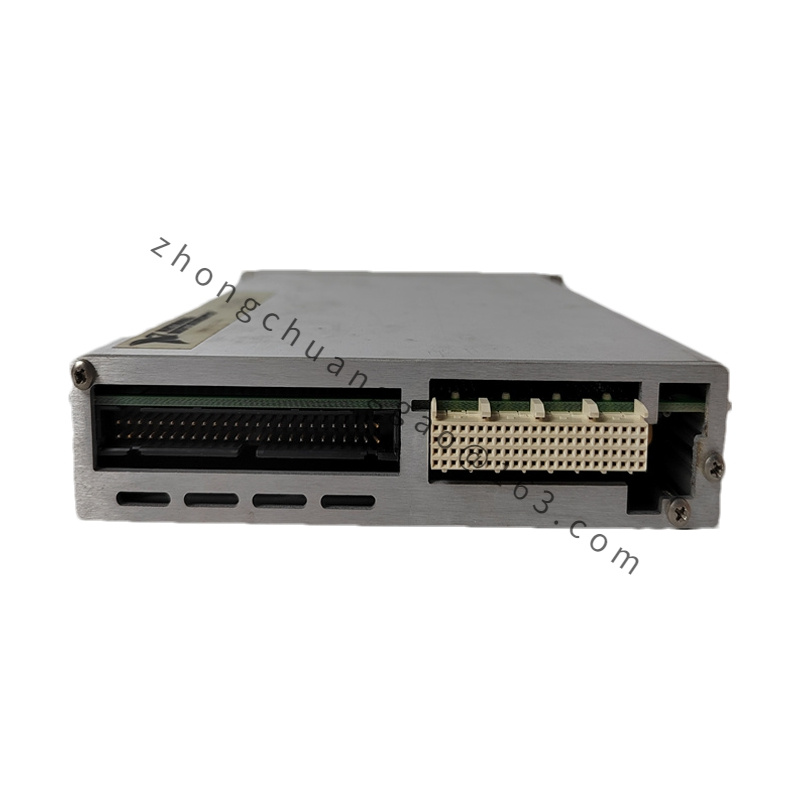

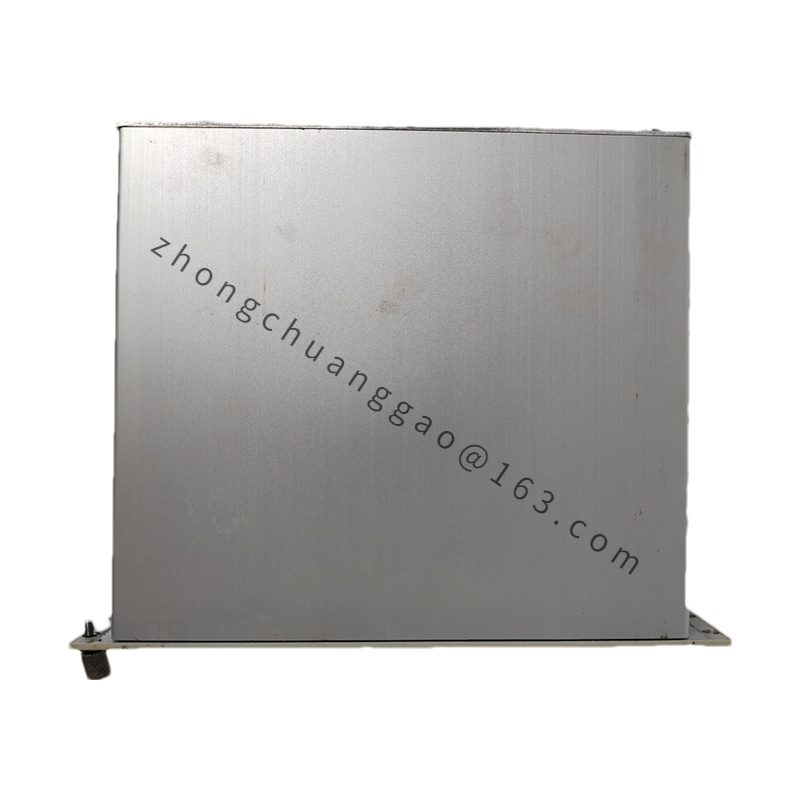

NI SCXI-1100
The NI SCXI-1100 is a 32-channel analog input module designed for signal conditioning in millivolt, volt, and current inputs. It features a programmable gain instrumentation amplifier (PGIA) and a jumper-selectable 4 Hz lowpass filter. The channels are multiplexed into a single channel for data acquisition, making it an economical solution for multi-channel data acquisition systems. It is commonly used in industrial and laboratory environments for tasks requiring accurate and low-noise signal processing.
Detailed content
Key Specifications:
- Channels: 32 differential inputs
- Input Range: ±10 V
- Filter: 4 Hz lowpass
- Compatibility: Works with SCXI chassis and NI DAQ devices
- Application: Signal conditioning for data acquisition in industrial automation, research, and testing setups
