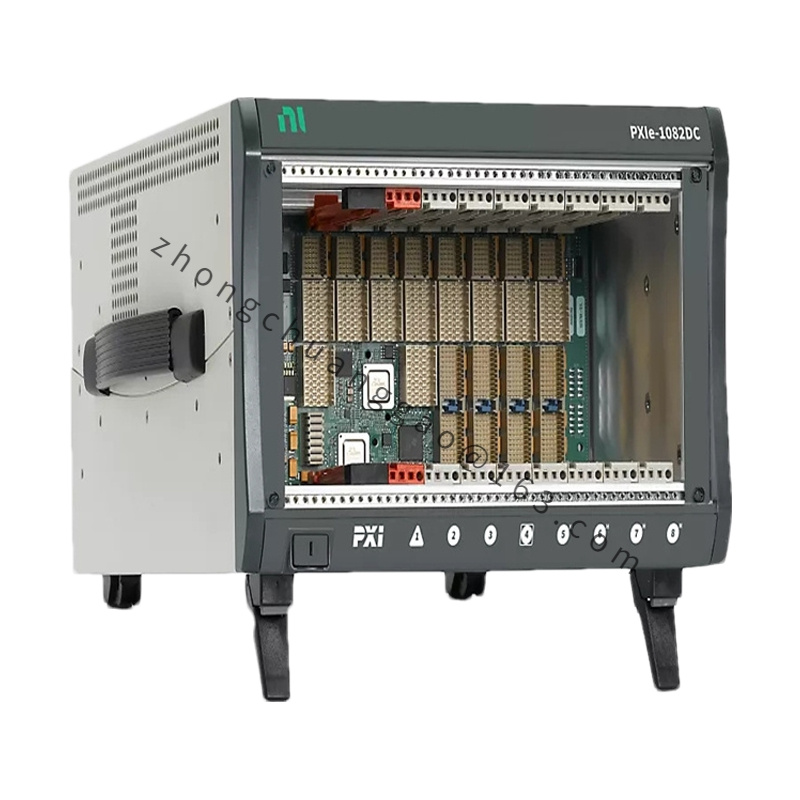

Technical Specifications:

• Chassis Type:
  • Form Factor: PXIe (PXI Express)
  • DC Power Supply: The chassis is specifically designed to operate with a DC power supply, suitable for environments where AC power is not available or practical.
• Slots:
  • Number of Slots: 8
  • Slot Types:
    • 5 PXIe slots
    • 3 PXI slots
  • Backplane: Supports both PXIe and PXI modules, allowing flexibility for different test and measurement configurations.
• Power Supply:
  • Type: External DC power supply
  • Voltage: Requires an external DC power source to operate. The chassis is designed to handle a range of DC input voltages.
  • Power Requirements:
    • Input Voltage: 24V DC
    • Input Current: 20A
  • Connector Type: Includes connectors for external DC power input.
• Cooling:
  • Type: Internal fan cooling system with optimized airflow for efficient heat dissipation.
• Operating Temperature:
  • Temperature Range: 0°C to 55°C (32°F to 131°F)
• Storage Temperature:
  • Storage Range: -40°C to 70°C (-40°F to 158°F)
• Relative Humidity:
  • Humidity Range: 10% to 90% non-condensing
• Dimensions:
  • Size: 3U height, compact design suitable for bench-top and rack-mounted configurations.
• Weight:
  • Weight: Approximately 7.5 kg (16.5 lbs)

Functional Features:

• High-Speed Data Transfer: Supports high-speed PXIe data transfer rates, making it suitable for demanding applications requiring rapid data acquisition and processing.
• Versatile Slot Configuration: Provides a mix of PXIe and PXI slots for flexible integration of various modules, accommodating different test and measurement needs.
• DC Power Supply: Designed for use with DC power sources, making it suitable for specialized environments where AC power is not available.
• Compact and Rugged Design: The compact 3U form factor allows for use in both laboratory and field settings, while its rugged design ensures reliability.
• Built-In Cooling: Features an advanced cooling system to maintain optimal temperatures and ensure the reliability of connected modules.

Application Scenarios:

• Automated Test Systems: Ideal for high-performance automated test systems in industries like electronics, telecommunications, automotive, and aerospace.
• Research and Development: Useful in R&D environments where high-speed and high-throughput data acquisition and processing are critical.
• Production Test: Suitable for production test environments that require reliable and efficient test solutions.
• Field Testing: The DC power capability makes it suitable for portable and field-testing applications where AC power is not accessible.

Additional Considerations:

• Driver and Software Support: Compatible with National Instruments’ software and drivers, including NI LabVIEW and NI MAX, for seamless integration and system configuration.
• Power Supply Management: The requirement for an external DC power supply must be considered during setup. Ensure that the power supply meets the chassis’s voltage and current specifications.
