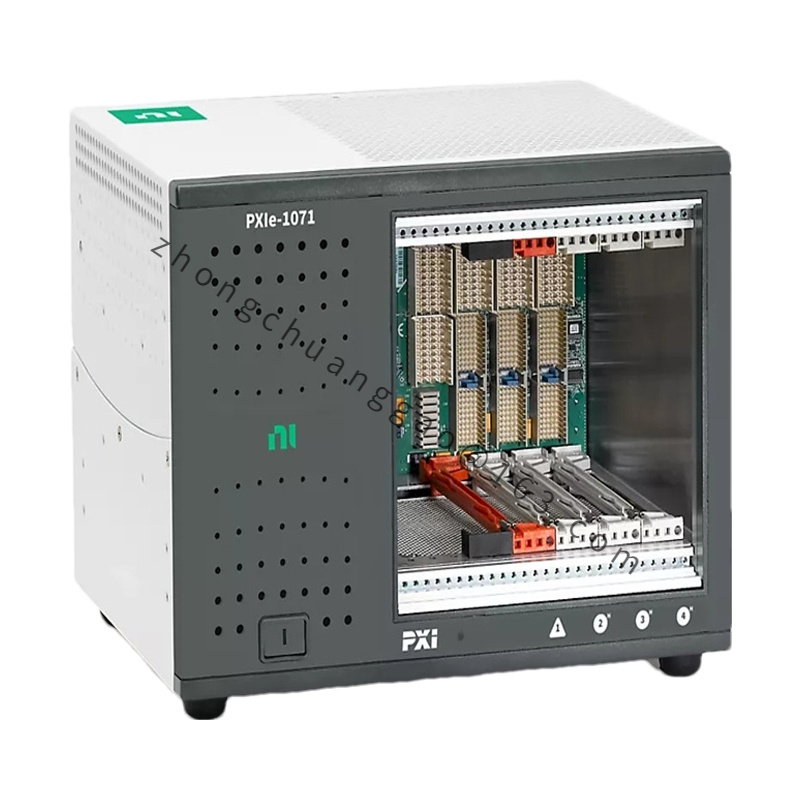

Technical Specifications:

• Chassis Type:
  • Form Factor: PXIe (PXI Express)
• Slots:
  • Number of Slots: 8
  • Slot Types:
    • 5 PXIe slots
    • 3 PXI slots
  • Backplane: The chassis supports both PXIe and PXI module types, providing flexibility for different configurations.
• Power Supply:
  • Type: Internal power supply
  • Voltage: Provides all necessary power rails for PXIe modules
  • Cooling: Includes internal cooling fans to ensure proper ventilation and thermal management
• Cooling:
  • Type: Internal fan cooling
• Operating Temperature:
  • Temperature Range: 0°C to 55°C
• Storage Temperature:
  • Storage Range: -40°C to 70°C
• Relative Humidity:
  • Humidity Range: 10% to 90% non-condensing
• Dimensions:
  • Size: Compact and rugged design suitable for both laboratory and field use
• Weight:
  • Weight: Approximately 4.5 kg (10 lbs)

Functional Features:

• Versatile Slot Configuration: Accommodates a mix of PXIe and PXI modules, offering flexibility for various test and measurement needs.
• High-Speed Data Transfer: Supports high-speed PXIe data transfer rates, making it suitable for demanding applications that require rapid data acquisition and processing.
• Compact Design: The small form factor allows for use in space-constrained environments without compromising performance.
• Built-In Cooling: Includes internal cooling to maintain optimal operating temperatures and ensure reliability.
• Power Management: Provides stable and reliable power to connected modules, with built-in protection features.

Application Scenarios:

• Automated Test Systems: Ideal for use in automated test systems where high-speed data acquisition and processing are required. Suitable for industries such as electronics, telecommunications, and automotive.
• Lab and R&D: Useful in laboratory and research environments where compact and high-performance test solutions are needed.
• Field Testing: Its rugged design makes it suitable for portable test systems used in field testing and deployment scenarios.

Additional Considerations:

• Driver and Software Support: Compatible with National Instruments’ software and drivers, including NI LabVIEW and NI MAX, for easy integration and configuration of PXIe modules.
• Integration and Expansion: Allows for integration with various PXIe modules and external devices, providing a scalable and flexible test system platform.
