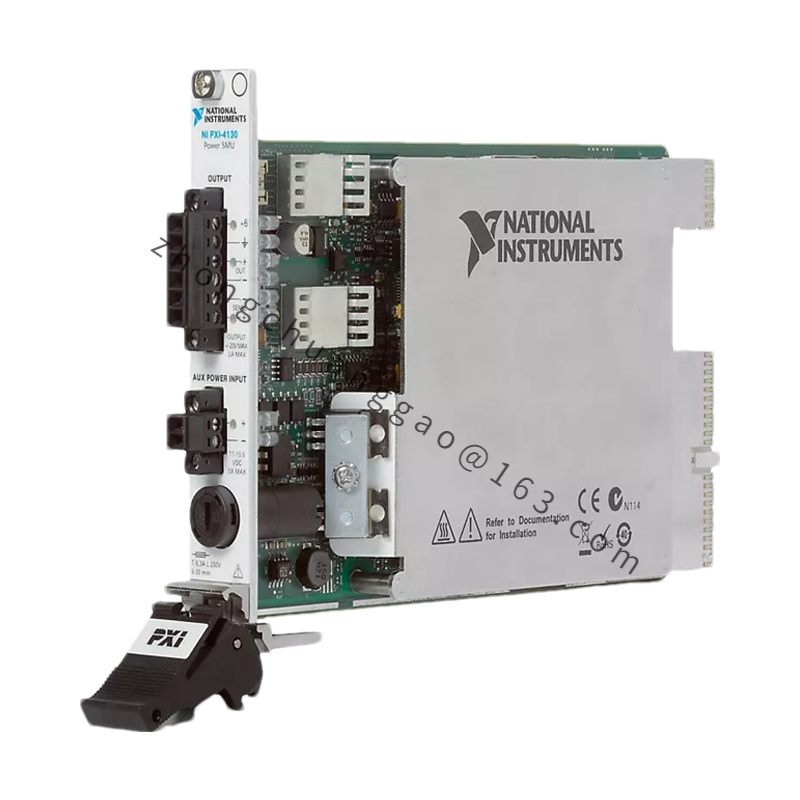

Technical Specifications:

• Output Functions:
  • DC Voltage Source: -10 V to 10 V
  • DC Current Source: -1 A to 1 A
• Measurement Functions:
  • DC Voltage Measurement: -10 V to 10 V
  • DC Current Measurement: -1 A to 1 A
• Accuracy:
  • Voltage Source Accuracy: ±0.02% (of reading) + 1 mV
  • Current Source Accuracy: ±0.05% (of reading) + 1 µA
  • Voltage Measurement Accuracy: ±0.02% (of reading) + 1 mV
  • Current Measurement Accuracy: ±0.05% (of reading) + 1 µA
• Resolution:
  • Voltage Source: 16 bits
  • Current Source: 16 bits
  • Voltage Measurement: 16 bits
  • Current Measurement: 16 bits
• Compliance:
  • Voltage Compliance: 10 V
  • Current Compliance: 1 A
• Source/Measure Speed:
  • DC Voltage: Up to 1000 readings/second
  • DC Current: Up to 1000 readings/second
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -40°C to 70°C
• Relative Humidity: 10% to 90% non-condensing

Functional Features:

• Precision Source and Measure: Combines high-precision sourcing and measurement capabilities in one unit, allowing for accurate source/measure applications.
• High Accuracy: Provides high accuracy for both voltage and current measurements, essential for precision testing and characterization.
• Wide Range: Offers a broad range of output and measurement capabilities, suitable for diverse applications.
• Fast Source/Measure Speed: Supports high-speed data acquisition with up to 1000 readings per second, beneficial for dynamic and high-throughput testing.
• Programmable: Allows for precise control and automation of source and measurement functions, integrating seamlessly with National Instruments’ software tools like NI LabVIEW.

Application Scenarios:

• Device Characterization: Ideal for characterizing electronic devices and components by providing precise voltage and current sourcing and measurement.
• Automated Test Systems: Suitable for use in automated test systems requiring precise source/measure capabilities for testing and validation.
• Research and Development: Useful in R&D environments where accurate and flexible source and measurement functions are needed for experiments and development.
• Production Testing: Employed in manufacturing environments for testing and verifying electronic components and assemblies.

Additional Considerations:

• Driver and Software Support: Requires National Instruments’ drivers and software, such as NI LabVIEW or NI TestStand, for configuration and control. Ensure compatibility with your PXI system’s software environment.
• Integration and Configuration: Easily integrates with other PXI modules and systems, providing a versatile and comprehensive testing solution.
