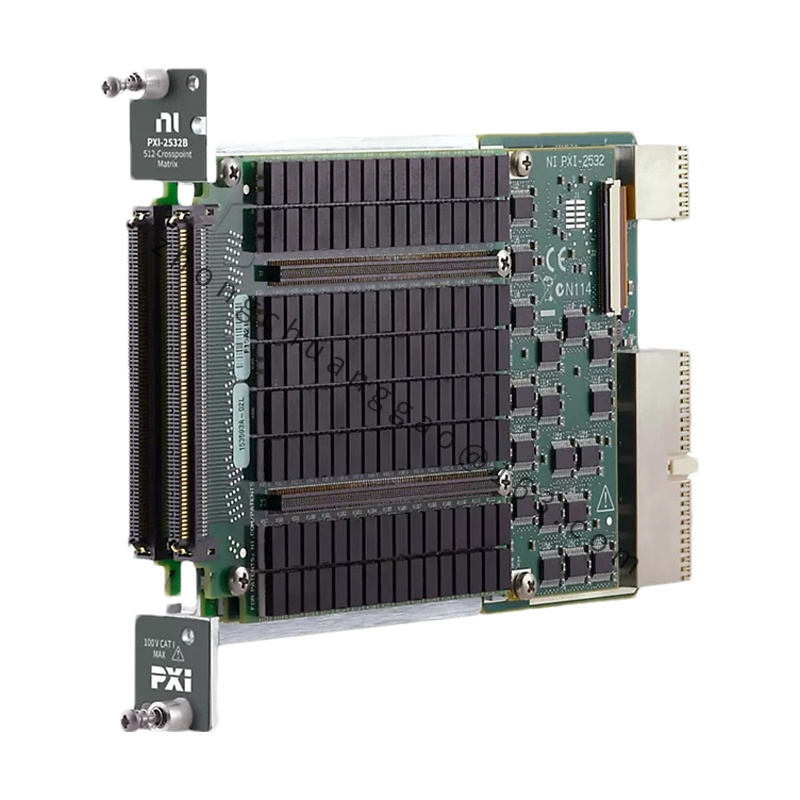

Technical Specifications:

• Switch Type: Matrix Switch
• Form Factor: PXI (PCI eXtensions for Instrumentation)
• Channel Count: 64 x 64 (cross-point matrix switch)
• Switch Type: Electromechanical
• Maximum Switching Voltage: 30 V
• Maximum Switching Current: 2 A
• Maximum Switching Power: 60 W
• Contact Resistance: < 0.1 Ω
• Insulation Resistance: > 10^9 Ω
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -40°C to 70°C
• Relative Humidity: 10% to 90% non-condensing

Functional Features:

• High-Density Matrix Switching: Provides a 64 x 64 matrix configuration, allowing extensive and flexible signal routing within a single module.
• High-Current Capability: Handles up to 2 A per channel, making it suitable for high-current applications.
• Low Contact Resistance: Ensures minimal signal loss and high measurement accuracy, crucial for precision testing.
• Electromechanical Relays: Uses reliable electromechanical relays to handle a wide range of switching tasks, providing robust performance.
• High Power Handling: Capable of managing up to 60 W of power, accommodating a variety of test and measurement scenarios.

Application Scenarios:

• Automated Test Systems: Ideal for use in automated test setups where complex signal routing and high-density switching are required.
• System Simulation: Useful for simulating various circuit configurations and system states in R&D or prototyping environments.
• Signal Routing: Efficiently routes signals between multiple components or instruments, supporting complex test configurations.
• Measurement and Control: Facilitates the management and switching of numerous test signals, enhancing measurement and control capabilities.

Additional Considerations:

• Driver and Software Support: Requires appropriate drivers and software from National Instruments, such as NI LabVIEW or NI TestStand, for configuration and control. Ensure compatibility with your PXI system and software environment.
• Configuration and Integration: Integrated with National Instruments’ software tools for ease of setup and operation, providing flexibility for various testing needs.
