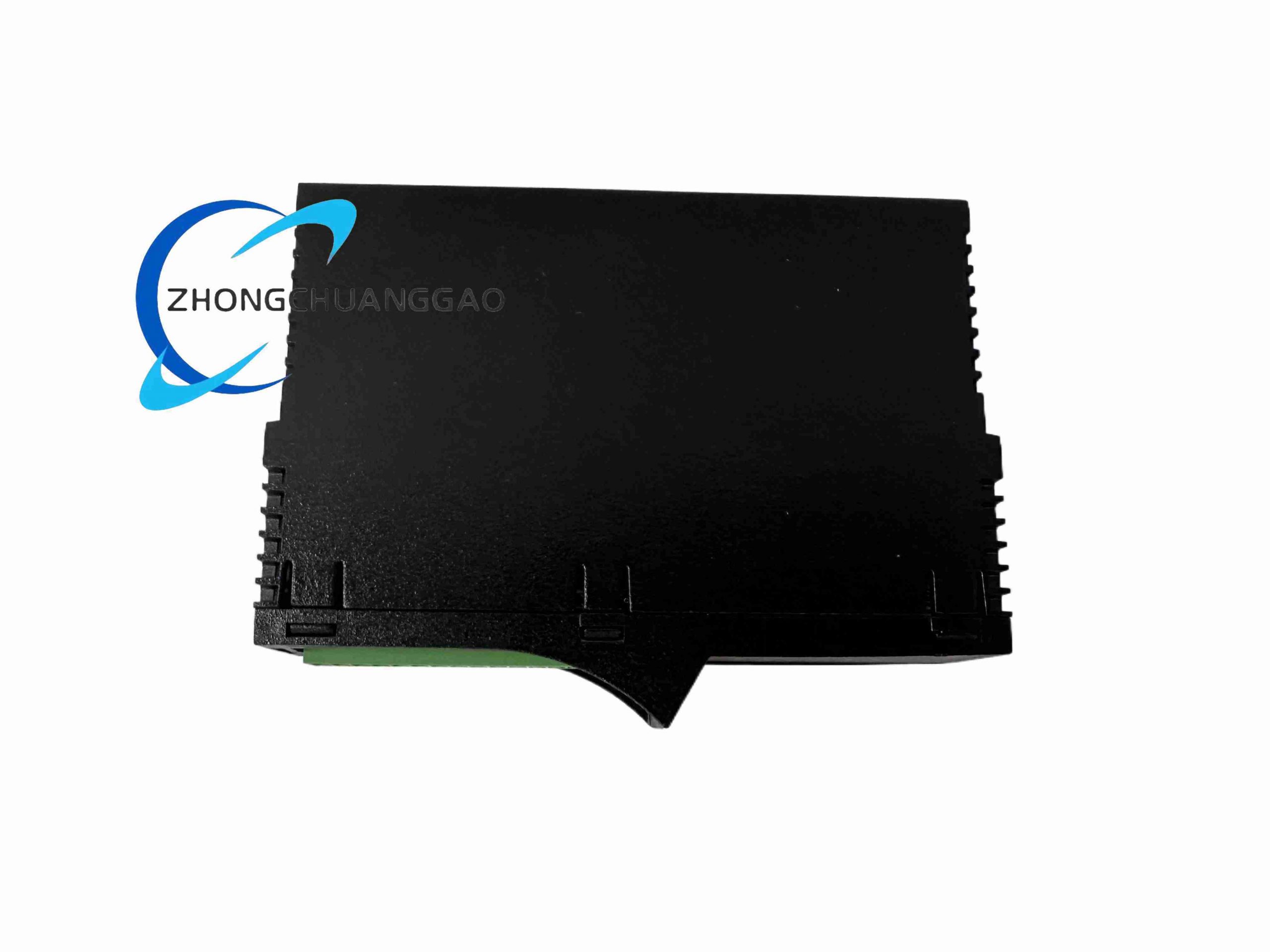

Metso D201472
Product Name: Analog Output Module, 8-Channel
Product Introduction: This module is a process I/O analog output unit for Metso DNA and compatible DCS racks. It converts digital control values into proportional current or voltage signals for valves, variable frequency drives and indicating instruments.
Detailed content
Technical Specifications:
- Output channels: 8 analog output channels
- Standard signal: 4–20 mA DC or 0–10 VDC according to rack configuration
- Isolation: galvanic isolation per channel
- Backplane power: 24 VDC nominal for Metso DNA I/O families
- Mounting: DCS rack slot with backplane bus interface
- Diagnostics: open-load, short-circuit and channel-fault reporting according to configuration
Functional Features:
- Independent isolated channels for mixed field loads
- Digital-to-analog conversion under rack controller command
- Configurable signal range and scaling
- Front status indication for module health and channel faults
Material Composition:
- Enclosure: flame-retardant industrial plasticsuitable for control cabinet service
- PCB: FR4 with conformal coating option for harsh environments
- Terminals: plated copper alloy spring or screw contacts
- Isolation components: signal transformers or optocouplers according to channel design
Structural Characteristics:
- Standard DCS I/O module form factor
- Front removable terminal block
- Rear backplane connector for power and control bus
- LED indicators for power, communication and fault
Working Principle: The controller sends digital output values over the backplane. The module converts each value to an isolated analog signal through a D/A converter and output amplifier. Galvanic isolation separates field loops from the backplane. Fault logic reports open-circuit, overload or communication errors to the DCS.
Installation Requirements: Insert the module into the assigned analog output slot. Connect field devices to the front terminal block. Confirm load limits, signal type and grounding scheme in the DCS configuration tool.
Usage Precautions: Match output type to field device impedance before energizing. Do not exceed specified loop load. Test fail-safe output behavior during commissioning. Replace only with the identical Metso ordering code or validated cross-reference.
