Honeywell 51305907-175
Product Name: MC-TAMR04 Low-Level Analog Input Multiplexer
Product Introduction: The Honeywell 51305907-175 (MC-TAMR04) is a UCN low-level analog input multiplexer (LLMUX) for Honeywell TDC 3000 and Experion PKS distributed control systems. It is designed for high-precision acquisition of low-level temperature signals and provides reliable performance in demanding industrial process environments.
Detailed content
Technical Specifications:
- Part Number: 51305907-175 (Model MC-TAMR04)
- Input Channels: 64 fully isolated channels, expandable in 16-channel increments
- Input Types: Thermocouple (TC) and RTD
- Input Range (TC): -20 to +100 mV nominal
- Maximum Input (TC): -10 to +10 V; (RTD): -1 to +2 V @ 100 mA
- Channel Bandwidth: 0 to 4.7 Hz (-3 dB)
- Input Scan Rate: Fixed 1-second scan by IOM (up to 64 channels/second)
- Gain Error: 0.050% of full scale (maximum)
- Input Impedance: 1 MΩ at DC (TC only)
- Long-Term Drift: 500 ppm
- Isolation: Channel-to-channel, channel-to-processor, and channel-to-power-supply
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 30.5 cm x 11.9 cm x 7 cm
- Weight: 0.7 kg
- Origin: USA
Functional Features: High channel density supporting up to 64 fully isolated input networks; flexible thermocouple and RTD input support; minimal acquisition error for low-level analog input; industrial-grade rugged design for long-term reliable operation; compact module form factor.
Application Scenarios: Process and manufacturing industries; oil and gas; chemical processing; power generation; water and wastewater treatment; building automation.

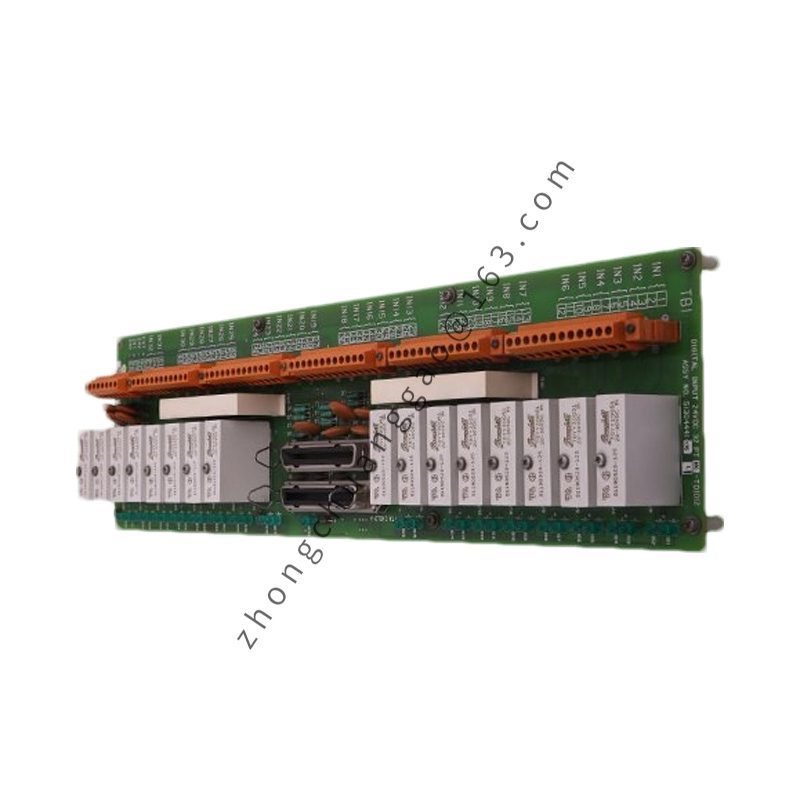

Structural Characteristics: A board-type module with 64 channels configured in 16-channel increments, utilizing solid-state switching. It uses the Honeywell PMIO LLMUX FTA for field termination—one FTA type provides 16 RTD inputs and another provides 16 TC or mV inputs.
Working Principle: Collects temperature variables from all points at a 1-second rate. The 1-second update includes a configurable check for Open Thermocouple Detection (OTD) before propagation of the temperature variable.
Installation Requirements: Must be installed in a compatible TDC 3000 or Experion PKS Universal Control Network (UCN) rack. FTAs must be correctly selected and matched based on the required mix of TC, mV, or RTD points.
