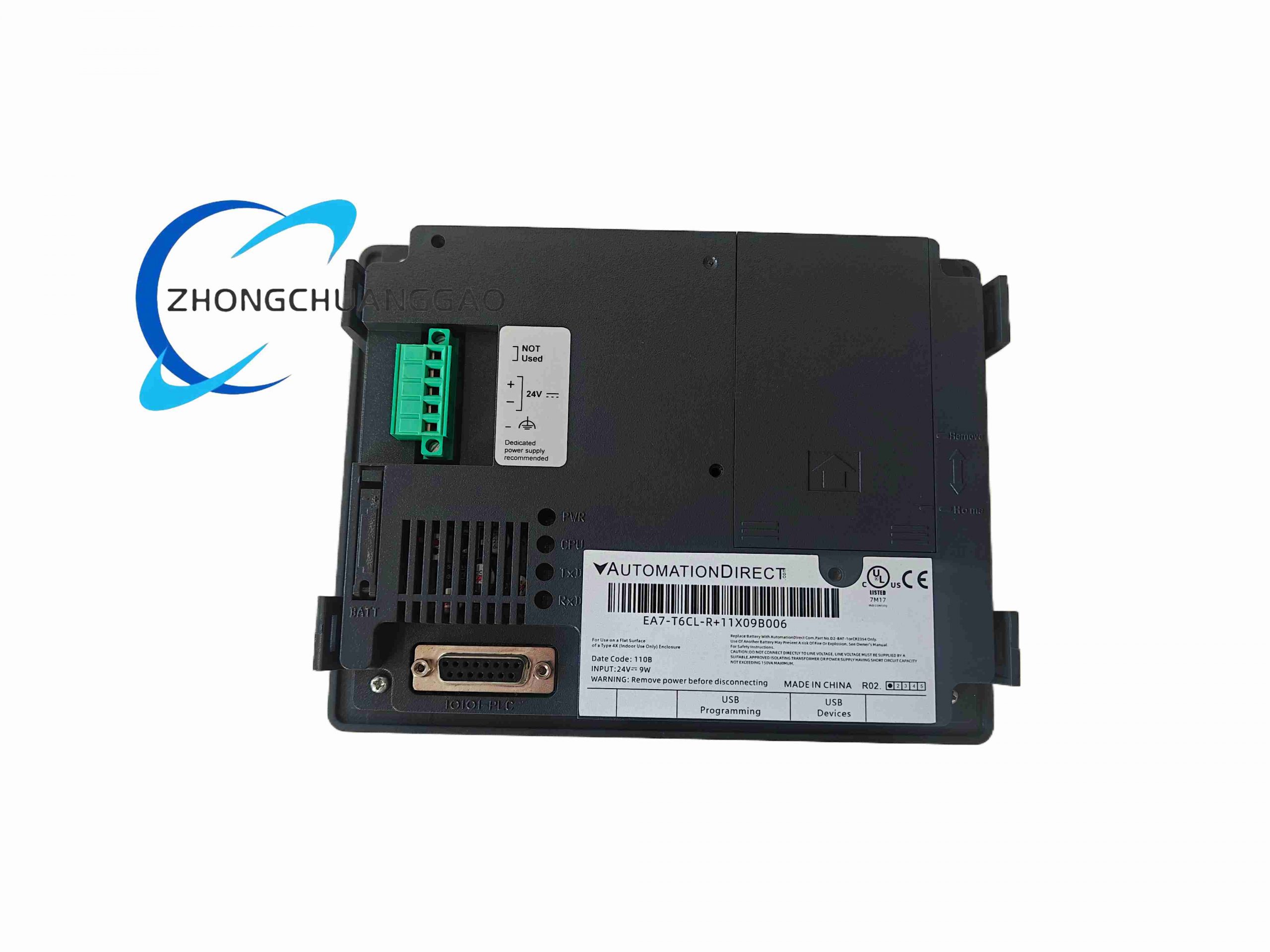

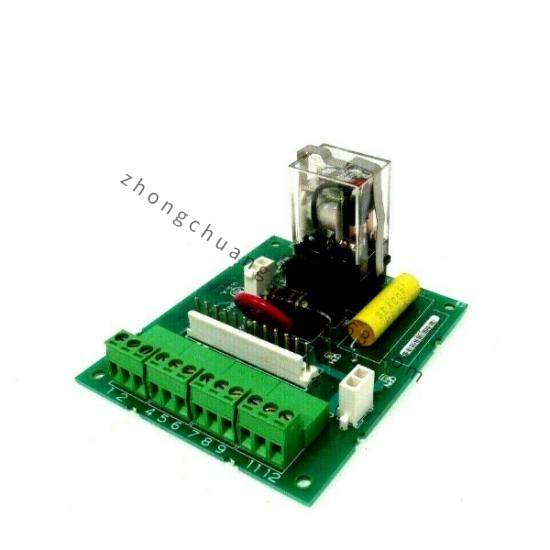

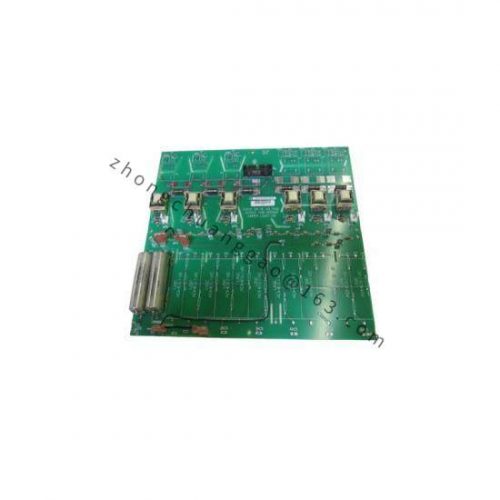

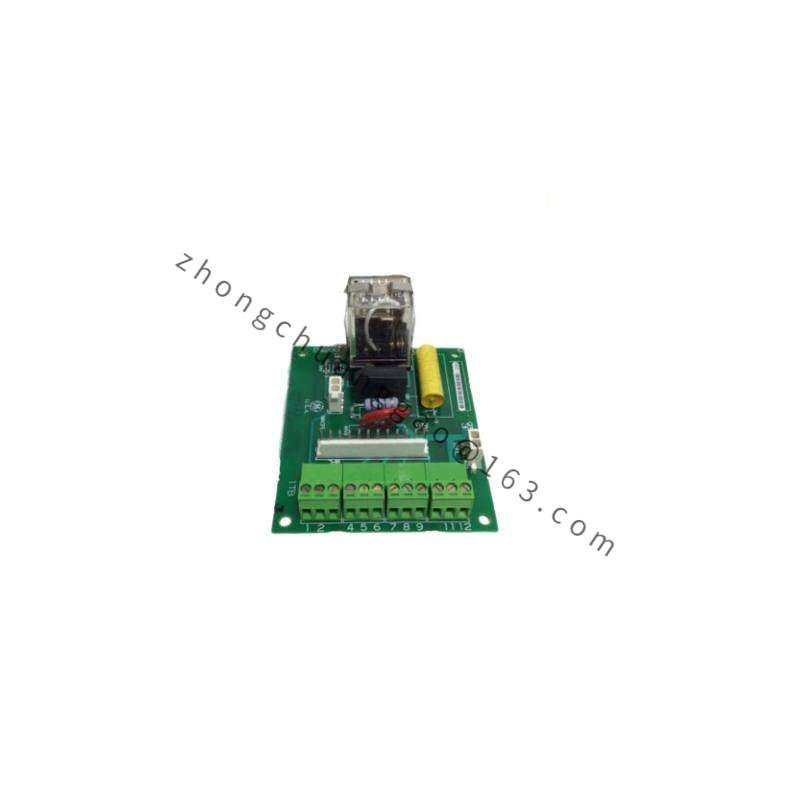

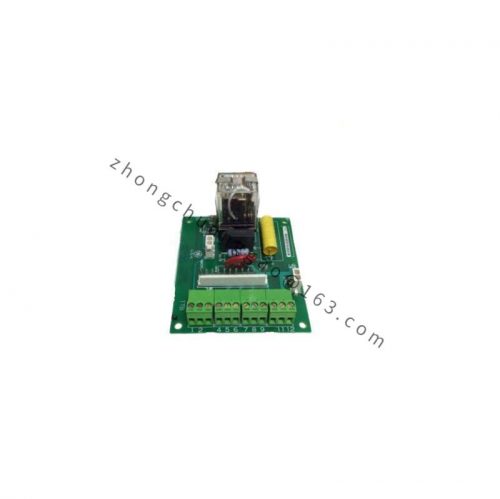

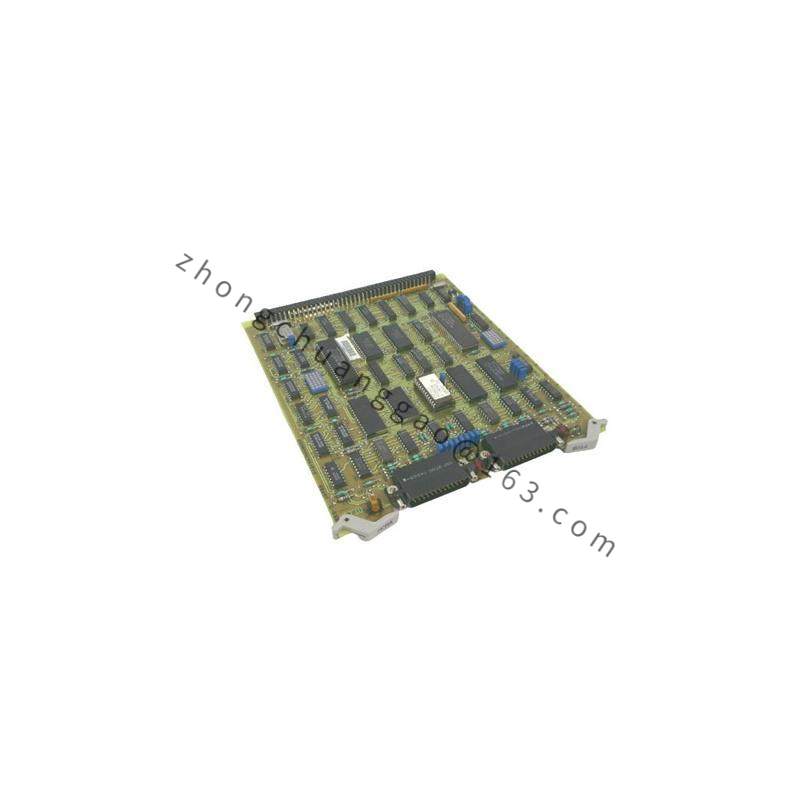

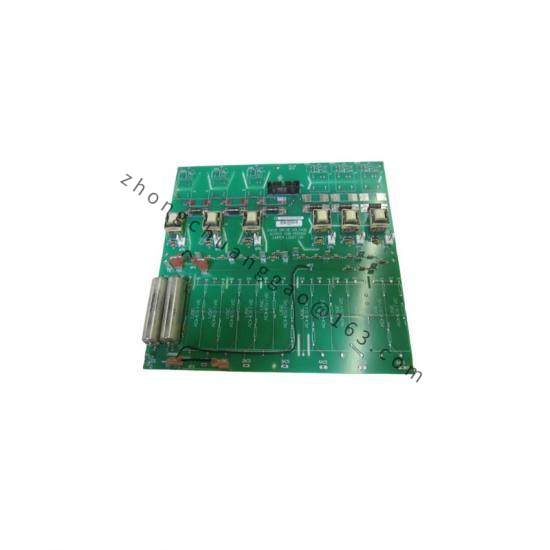

Technical Specifications
Display: 5.7-inch TFT color LCD
Colors: 65,536
Resolution: 320 x 240 QVGA
Brightness: 270 cd/m²
Touch panel: analog resistive
CPU: 32-bit RISC, 333 MHz
Memory: 32 MB SDRAM, 32 MB flash, 256 KB SRAM
Supply: 24 VDC, 20.4-28.8 VDC
Power consumption: 9 W
Serial port: RS-232/422/485
USB: Type A and Type B
Ethernet: not available
Operating temperature: 0-50 °C
Humidity: 10-85% RH, non-condensing
Dimensions: 156 x 204.4 x 43.1 mm
Weight: 650 g
Approvals: UL, cUL, CE
Functional Features
Real-time clock with battery backup
Screen saver and backlight control
Up to 9999 screens depending on project memory
Local configuration and USB project download
Application Scenarios
Machine operator panels
Packaging lines
Assembly stations
Small and mid-size automation systems
Installation Requirements
Panel cutout mounting
Indoor use only
Proper torque on mounting clips
Seal correctly for NEMA 4X / IP65 front face
Usage Notes
Backlight is not user-replaceable.
Avoid condensation and corrosive atmosphere.
Use recommended 24 VDC power supply with 2.5 A fuse.
