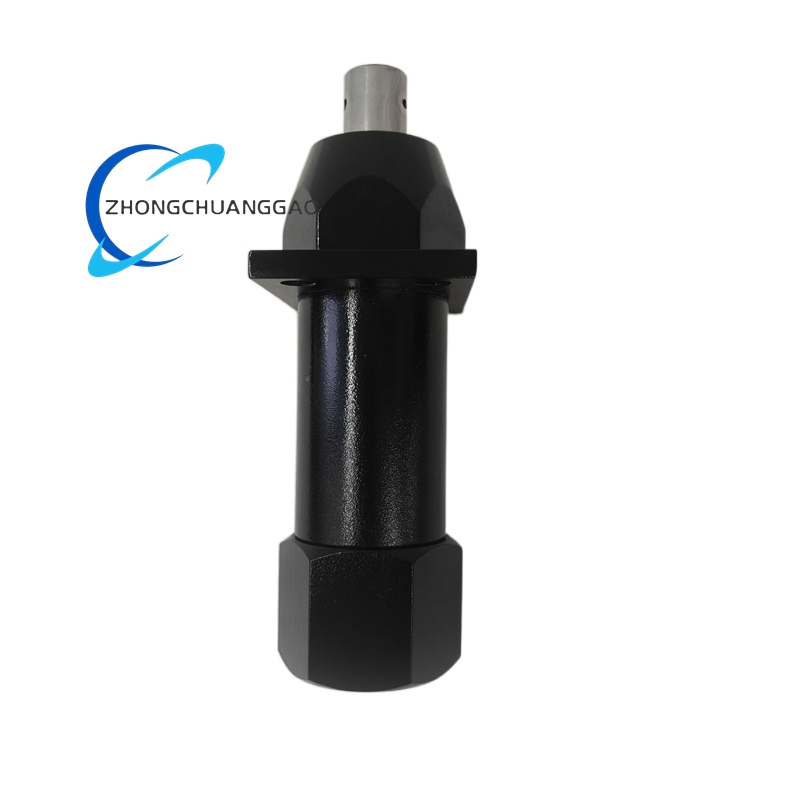

Technical Specifications​

Sensing principle: inductive eddy-current.

Standard sensing distance: 25 mm with standard metal target.

Output: PNP normally open, 3-wire.

Rated output current: 200 mA maximum.

Supply voltage: 10 VDC to 30 VDC.

Voltage drop: typical low-loss solid-state output per 3-wire PNP design.

Housing: M18×1 cylinder.

Body length: 70 mm standard.

Housing material: nickel-plated brass or 303 stainless steel depending on variant.

Cable: 2 m PUR jacket, 3-wire brown/blue/black.

Protection: IP67.

Operating temperature: -25°C to 70°C.

Switching frequency: 200 Hz maximum.

Short-circuit protection: yes.

Reverse-polarity protection: yes.

Status indication: LED output state.

Functional Features​

Flush or non-flush mounting options according to sensing-face arrangement.

PNP NO output for direct PLC and relay interface.

High 200 Hz switching for counting and high-speed part tracking.

Overload, short-circuit, and reverse-polarity protection for panel and field use.

LED for rapid output verification during commissioning.

Material Composition and Structure​

Threaded M18 barrel in nickel-plated brass or 303 stainless steel, sealed sensing face, internal oscillator and evaluation PCB, PNP output stage, and PUR-jacketed cable. The IP67 seal includes O-rings and potted electronics suitable for water spray, oil mist, and dust exposure within rated temperature.

Working Principle​

The oscillator creates an alternating magnetic field at the sensing face. A metallic target entering the field induces eddy currents that reduce oscillation amplitude. The evaluation circuit detects this change and switches the PNP output on or off according to the normally-open configuration.

Installation Requirements​

For flush mounting, seat the sensing face flush with the metal mounting surface and use non-interfering bracket material if shielding is specified. For non-flush mounting, keep the full 25 mm free distance from the target and maintain manufacturer clearance from adjacent metal. Separate multiple inductive sensors sufficiently to avoid mutual oscillation interference. Wire brown to 10–30 VDC positive, blue to negative, and black to the load input.

Usage Notes​

Verify target material and size because non-ferrous metals reduce effective sensing distance. Do not exceed 200 mA load or 30 VDC supply. Keep cable bends within PUR rating and avoid sharp strain at the gland. Check LED status periodically; repeated nuisance switching may indicate misalignment, adjacent metal interference, or contaminated target surface.
