Technical Specifications​

Display type: TFT color

Diagonal: 10.1 inches

Resolution: WXGA 1280 × 800 pixels

Colors: 16.7 million

Backlight: LED, dimmable

Brightness: 100 to 1000 cd/m² typical

Contrast ratio: 800:1

Viewing angle: 85° left, 85° right, 85° up, 85° down

Backlight service life: 50,000 hours to half brightness

Touch technology: analog resistive, single-touch

Touch controller: B&R serial, 12-bit

Touch transmittance: 81% ±3%

Front protection: IP65

Rear protection: IP20 when installed with link module or system unit

UL rating: Type 4X indoor

Pollution degree: 2 per EN 61131-2

Functional Features​

Dimmable LED backlight for varying ambient light conditions

Analog resistive touch compatible with finger, glove or stylus operation

Flush-mount aluminum front frame for control cabinet integration

HazLoc approvals for classified industrial locations

Application Scenarios​

Machine operator stations

Packaging and bottling lines

Semiconductor and electronics manufacturing HMI

General factory automation visualization panels

Performance Parameters​

Color depth: 16.7 million colors

Touch resolution: 12-bit reported coordinates

Mechanical stability suitable for continuous 24/7 cabinet installation

LED backlight rated for 50,000 hours to half brightness

Material Composition​

Front frame: coated aluminum

Front overlay: polyester

Display stack: TFT LCD, LED backlight layer, analog resistive sensor

Gasket: 3 mm fixed front gasket

Overlay colors: light background similar to RAL 9006, dark border similar to RAL 7024

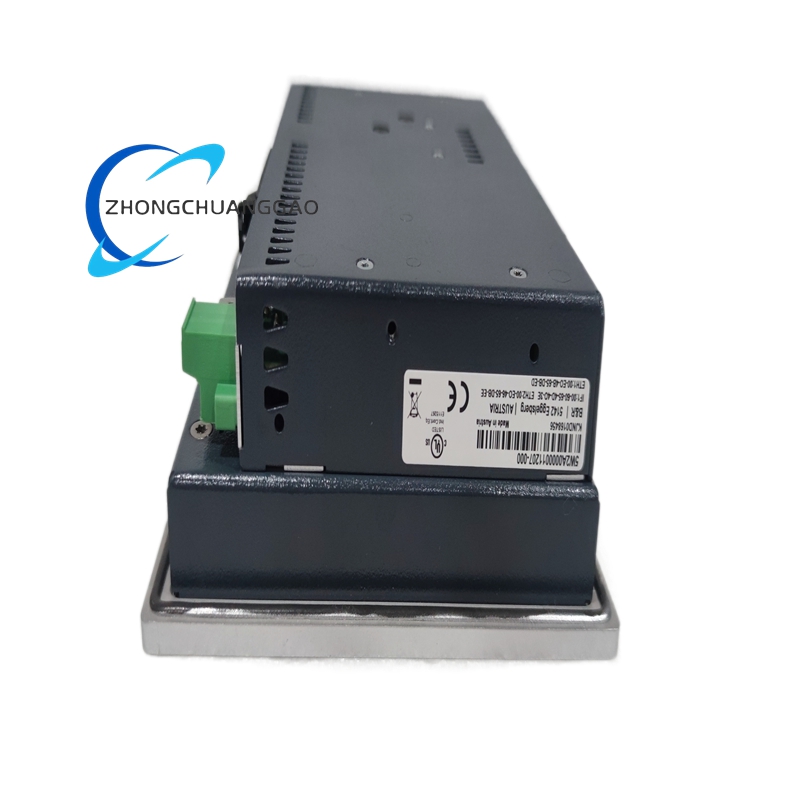

Structural Characteristics​

Flat front panel with 3 mm gasket seal

Landscape flush-mount design

Rear interface area for Automation Panel Link, system unit or PPC controller

Compact industrial HMI enclosure without user-serviceable lamps

Working Principle​

The connected B&R controller or system unit sends video data to the TFT panel through the Automation Panel Link or direct interface. The resistive touch layer detects pressure position, the serial touch controller converts the analog signal into digital coordinates, and the controller returns touch data to the automation system for HMI processing.

Installation Requirements​

Prepare cabinet cutout matching 279 mm width and 191 mm height.

Mount the panel flush and secure according to B&R AP1000 mounting instructions.

Install a compatible link module, system unit or PPC controller before applying signal power.

Use only B&R approved panel link cables and connectors.

Ensure rear compartment remains within IP20 conditions when the link module is fitted.

Usage Notes​

Clean the touch surface with a soft non-abrasive cloth.

Avoid sharp objects that can damage the resistive layer.

Do not operate the front panel under direct high-pressure water; IP65 applies to the front only.

Recalibrate touch through the B&R panel configuration software after replacement.
