Technical Specifications​

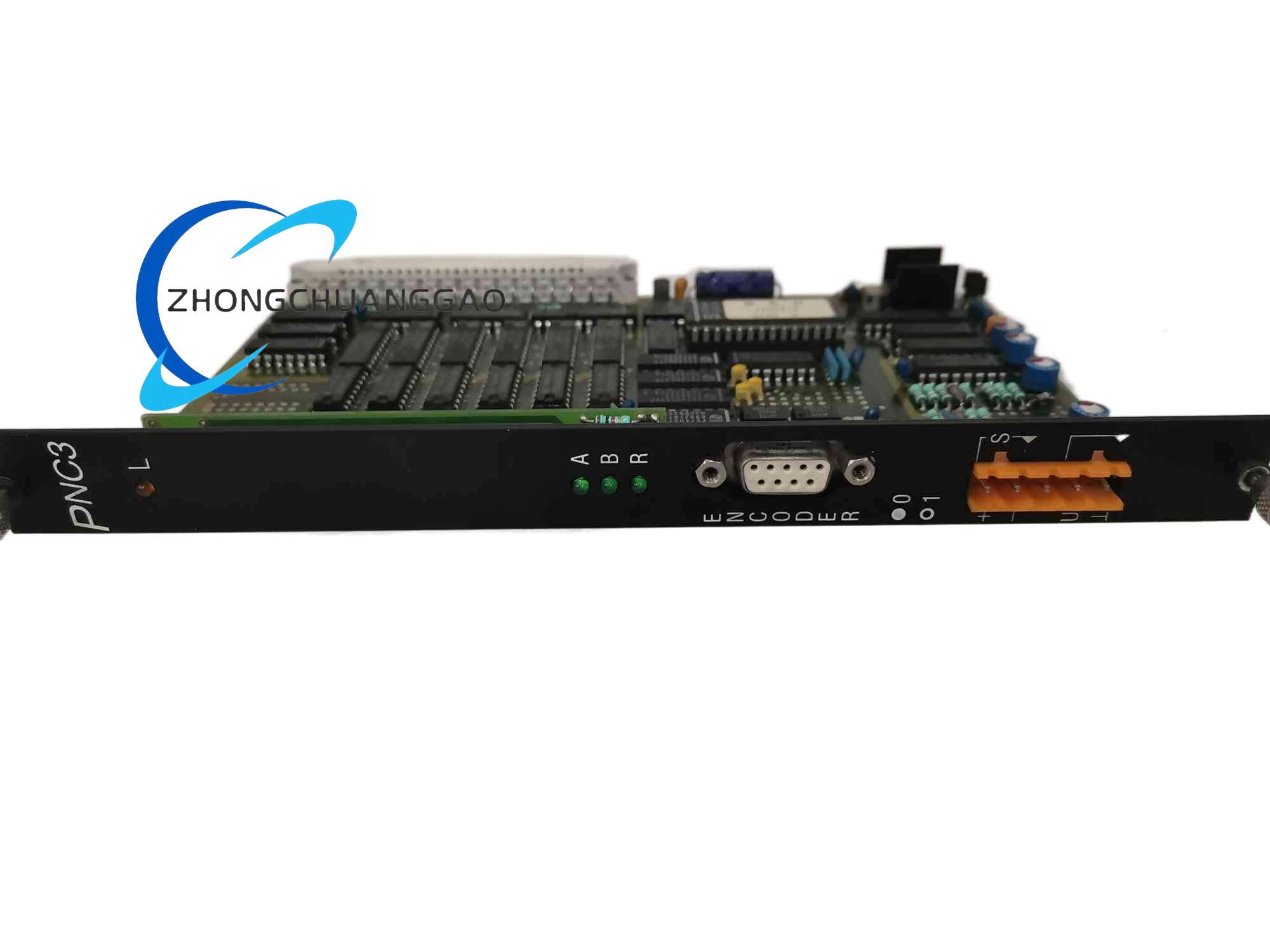

Series: PNC3 / MIDI Multicontrol

Encoder input: 1 incremental encoder, A/B/Z

Counter resolution: 24-bit position measurement

Max counting frequency: up to 200 kHz quadrature

Analog output: ±10 V

Encoder supply: 24 VDC

Module supply: 24 VDC

Operating temperature: 0-55 °C

Storage temperature: -25 to +70 °C

Dimensions: approx. 100 x 25 x 100 mm

Weight: approx. 0.2 kg

Origin: Austria

Functional Features​

High-speed quadrature counting

Position latching and reference homing

Encoder power integrated

Analog feedback output

PLC backplane communication

Application Scenarios​

Motion control

Axis position feedback

Speed measurement

Synchronous machine control

Working Principle​

Incremental encoder A/B pulses are counted with selectable quadrature decoding, reference pulse performs homing, position/speed result is passed to PLC, and ±10 V output provides external analog feedback.

Installation Requirements​

Insert into compatible B&R controller or I/O rack

Use shielded encoder cable

Separate encoder ground from power ground as required

Usage Notes​

Keep encoder cables away from power cables.

Set counting direction and resolution in Automation Studio.

Wrong reference-pulse wiring causes homing error.
