Technical Specifications:​ Digital inputs are 16 channels, 24 VDC PNP, with per-channel current typically up to 5 mA for signal-type versions and higher for buffered variants. Digital outputs are 16 channels, 24 VDC PNP, 0.5 A maximum per channel. Module supply is 24 VDC SELV. Isolation between input and output sections is provided by galvanic or optocougal barriers; CDIO variants publish 1.5 kVAC internal I/O isolation or up to 2500 V in extended rugged versions. Response time is in the microseconds-to-100-microseconds range depending on firmware and filtering. Housing is DIN-rail mounted engineering-plastic enclosure. Front protection is typically IP20 for cabinet modules. Operating temperature for standard cabinet versions is -20 to +60 °C; extended rugged CDIO versions are rated -40 to +85 °C.

Functional Features:​ Independent input and output channel configuration, short-circuit and open-load diagnostics, LED status per channel or bank, 24 VDC solid-state switching for relays, valves and indicators, fast response for machine interlock and discrete automation, DIN-rail replacement without external transition blocks in matched systems.

Application Scenarios:​ Machine control panels, conveyor and packaging automation, test benches, process skid I/O, data-acquisition systems, replacement of separate input and output terminals where space and wiring simplification are required.

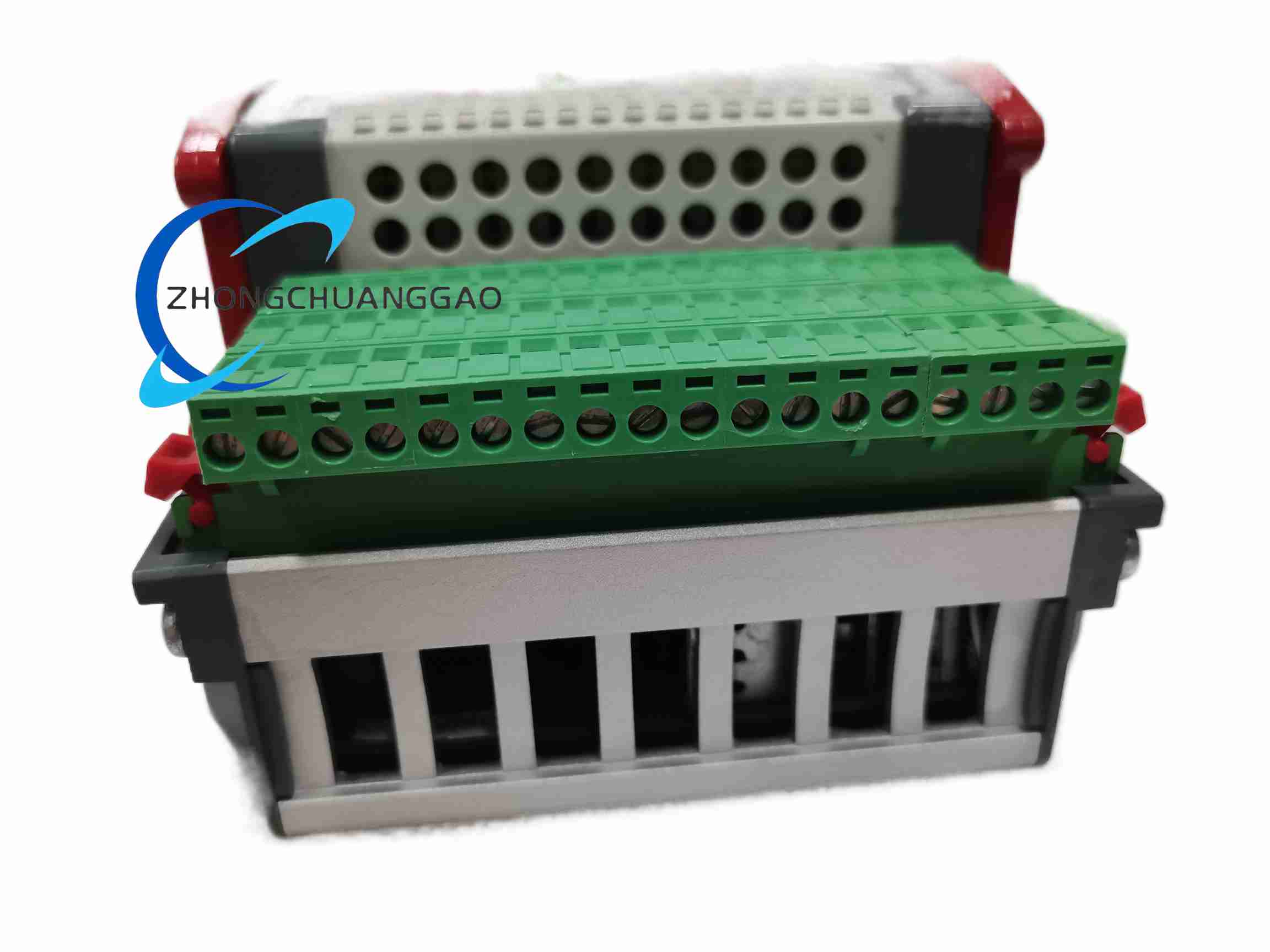

Materials and Structure:​ Housing uses flame-retardant engineering plastic. Internal PCB uses industrial-grade SMD components. Terminals use spring or screw digital-I/O connectors depending on the CDIO variant. LED indicators are mounted on the front fascia. DIN latch conforms to 35 mm rail profiles.

Working Principle:​ Field switches or sensors drive 24 VDC inputs through current-limiting and isolation stages to the I/O logic. The logic state is processed by the module firmware and transferred to the controller bus or local output scheduler. Output drivers switch 24 VDC load power through protected MOSFET/PNP stages; current, temperature and short-circuit monitors disable faulty channels and report diagnostics.

Installation Requirements:​ Mount on 35 mm DIN rail in a dry or climate-controlled cabinet. Supply 24 VDC SELV to the module power terminals with correct polarity. Use 24 AWG to 14 AWG field wiring according to the CDIO terminal drawing. Separate high-current actuator wiring from sensitive input wiring. Verify SC-1131 profile compatibility with the host PLC or Berghof controller before commissioning.

Usage Precautions:​ Do not exceed 0.5 A per output or the module total current rating. Verify load inductance and use freewheel diodes for solenoids. Confirm isolation voltage before mixing safety-related and standard I/O. Replace the module if LED diagnostics show persistent short-circuit or thermal derating.
