Applied Materials AKT 0100-71229
Product Name
AKT System Auxiliary CPU or Logic Board.
Product Introduction
Public detailed electrical datasheet for this exact number is limited. Related AKT platform listings identify 0100-71229 as an auxiliary or main CPU board used with VME communication carriers, digital I/O, and PMC modules in CVD, PECVD, and flat panel display tools.
Detailed content
Technical Specifications
Manufacturer identification: Applied Materials / AKT in related platform sources.
System context: AKT CVD, PECVD, and associated VME controller racks.
Processor and memory: public results do not provide confirmed values for 0100-71229 alone.
Bus context: used with VME carriers and PMC modules in related AKT listings.
Operating temperature, voltage, dimensions, and ingress rating: not reliably established from public datasheet results; confirm from original board label and system manual.
Functional Features
System logic execution for AKT process controller functions.
Communication with VME I/O, digital modules, and PMC expansion cards.
Supervision of timing, data exchange, and tool automation tasks.
Field replacement within designated CPU or logic slots.
Structural Characteristics

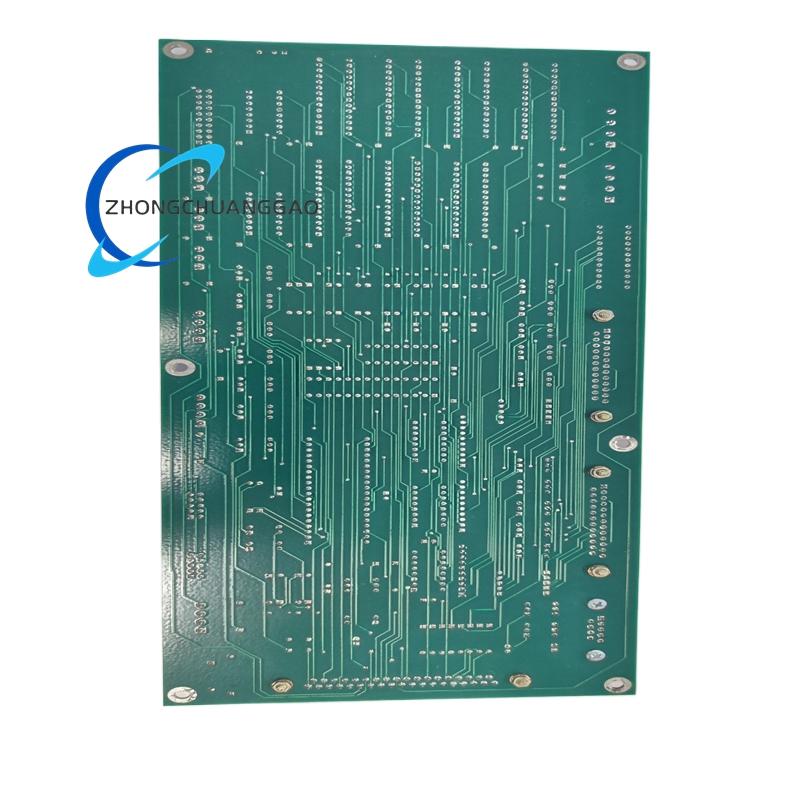

Industrial CPU or logic PCB with processor components, memory devices if populated, bus connectors, status indicators, and VME or carrier interface. Exact component layout must be verified from the physical board.
Working Principle
The board runs system firmware, exchanges data with VME backplane and connected I/O or PMC modules, manages process timing, and supports chamber or substrate handling automation according to the AKT tool software.
Application Scenarios
AKT CVD and PECVD cluster controller racks.
Flat panel display thin film deposition systems.
Semiconductor VME automation cabinets using 0100 series CPU/logic cards.
Spare logic board replacement where the bill of materials specifies 0100-71229.
Installation Requirements
Confirm chassis model, slot assignment, and firmware revision before installation.
Match the replacement board to the existing AKT controller software.
Seat all backplane and mezzanine connectors fully.
Power down the controller before insertion or removal.
Usage Precautions
Do not install if processor, memory, or firmware revision is unknown.
Avoid static discharge during handling.
Verify communication status with VME I/O and PMC modules after startup.
Keep configuration backup before replacing the CPU or logic board.
