Technical Specifications​

Manufacturer: Applied Materials.

System: P5000 Precision 5000.

Operating voltage: 24 V DC in most supplier listings.

Communication: DeviceNet and RS485 in listed sources; one Ethernet listing exists but P5000 sensor documentation commonly uses DeviceNet/RS485, so verify original interface.

Operating temperature: supplier listings vary; common range 0 to 50°C, alternate extended data lists minus 20 to plus 85°C. Use nameplate range for installation.

Humidity: 5 to 95 percent relative humidity, non condensing.

Protection: IP20 in most listings.

Dimensions: approximately 200 by 200 by 20 mm or 105 by 150 by 50 mm depending on source; confirm actual board outline.

Weight: approximately 1.2 kg in listed sources.

Compliance: SEMI S2, SEMI F47, CE in listed sources.

Functional Features​

Optical or position sensing for wafer in slot, edge, or chuck location.

Signal conditioning and transmission to host controller.

Transfer interlock support to prevent wafer miss or collision.

Local status through defined sensor channels and communication diagnostics.

Structural Characteristics​

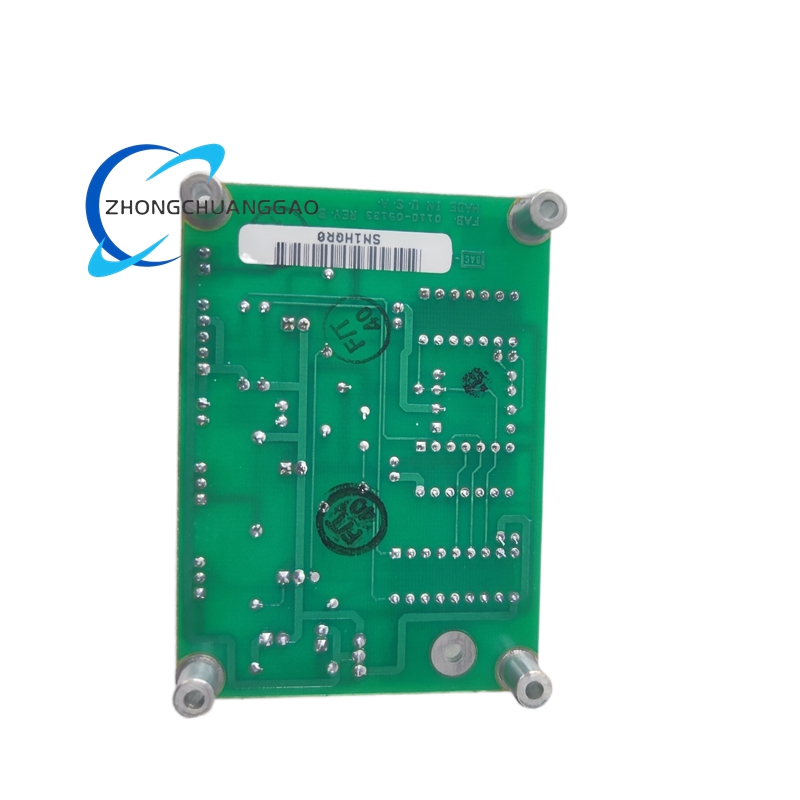

Rigid sensor PCB with optical or proximity sensing elements, conditioning circuitry, DeviceNet/RS485 connectors, and mechanical mounting features for the P5000 sensor station.

Working Principle​

The sensor elements detect wafer edge, presence, or position, the onboard circuit conditions the signal, and the communication interface reports status to the tool controller. The controller uses this data to permit, pause, or abort wafer transfer and process steps.

Application Scenarios​

Wafer presence verification before robotic transfer.

P5000 process chamber load and unload monitoring.

Wafer position tracking in semiconductor manufacturing lines.

Spare sensor board replacement for P5000 automation racks.

Installation Requirements​

Install in the designated P5000 sensor station or backplane slot.

Use shielded signal cable and verified DeviceNet/RS485 termination.

Confirm 24 V DC supply polarity and current capacity.

Align optical elements and verify detection window after mounting.

Usage Precautions​

Use anti static handling during removal and installation.

Do not clean optical surfaces with abrasive materials.

Perform periodic calibration and connector inspection.

Verify communication address and firmware compatibility with the host software.
