Technical Specifications​

Slots: 4 independent hot-swappable slots

Power input: dual redundant 12 VDC terminal input; adaptable with 90–264 VAC adapter

Power consumption: full load ≤ 19 W depending on installed cards

Dimensions: 130 × 164 × 92.1 mm

Weight: 1.37 kg

Enclosure: SECC electro-galvanized cold-rolled steel

Operating temperature: 0 to 45 °C

Humidity: 5% to 95% non-condensing

Functional Features​

Hot-swappable media converter modules

Redundant terminal-block power inputs

Electrical isolation between slots

Fused overcurrent protection

DIN-rail mounting

Application Scenarios​

Industrial Ethernet media conversion

Factory floor network aggregation

Fiber-to-copper conversion racks

Critical infrastructure LAN extension

Structural Characteristics​

Metal industrial enclosure

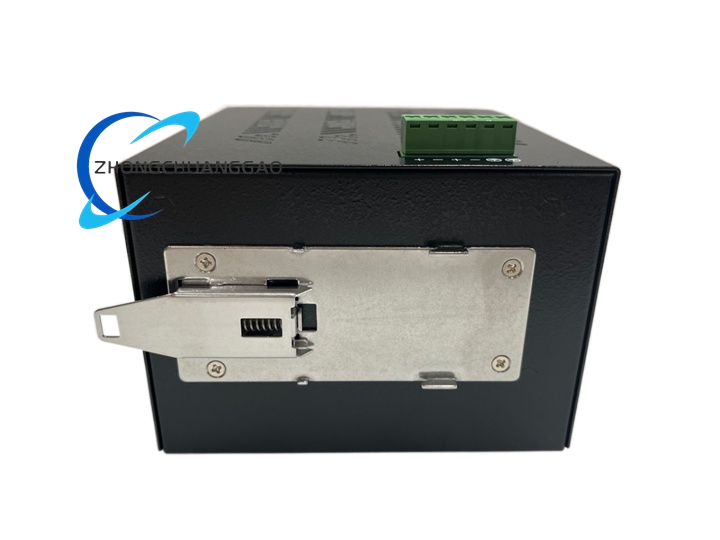

35 mm DIN-rail mount

LED indicators for PWR1, PWR2 and slot activity

Working Principle​

Provides backplane power, mechanical housing and slot isolation for installed media converter modules, allowing network links to remain active during module replacement.

Installation Requirements​

Mount on 35 mm DIN rail

Use marine/industrial graded power supply if required

Separate signal and power cabling where practical

Allow ventilation space in the cabinet

Usage Precautions​

Confirm power adapter and voltage before wiring

Do not mix incompatible media converter cards without checking support list

Avoid condensation and prolonged operation above 45 °C
