Voltage Class:400 V

Max. Motor Capacity kW (HP):45 (60)

Rated Discharge Amps:18

Max. Discharge Amps Peak 10% Duty:60

Input Range Voltage (AC):380-480 VAC

Max Frequency:590 Hz

Frame Size:2.5

Enclosure:2.5

Dynamic Braking:Trans Included

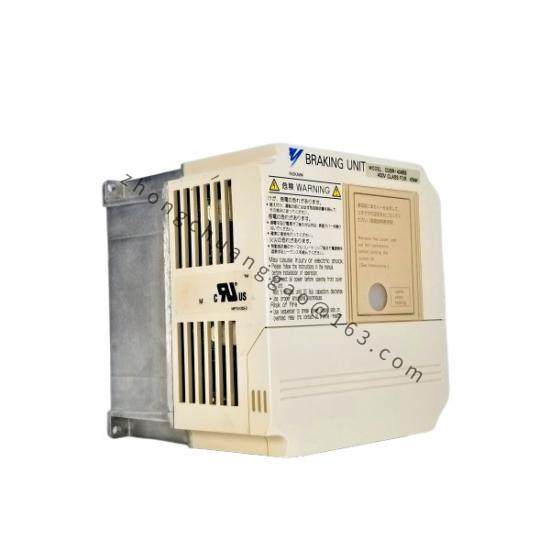

    The Yaskawa CDBR-4045B AC Drive Option BRAKING UNIT is designed to enhance motor performance in industrial applications. Its compact design ensures it can be easily integrated into existing systems without compromising on functionality or efficiency.

    Equipped with advanced braking technology, this unit provides quick and reliable deceleration, improving overall system stability and safety. The option for dynamic braking allows for more controlled stoppages, minimizing the risk of overshoot and wear on mechanical components.

    With a rated discharge amp capacity of 18 and a peak duty cycle of 60 amps, the CDBR-4045B is capable of handling high-power demands, making it suitable for heavy-duty applications. Its wide input voltage range and high maximum frequency enable compatibility with diverse power sources and machinery requirements.

    The unit’s weight of 0.165 grams ensures minimal impact on the structural integrity of the equipment it’s installed in, while its efficient power loss of 2.5 watts contributes to an eco-friendly operation, reducing environmental footprint and operational costs.

    Manufactured with robust materials, the CDBR-4045B is built to withstand challenging industrial environments, providing durability and reliability. It’s also compatible with a wide range of communication protocols, facilitating seamless integration with modern industrial control systems.
