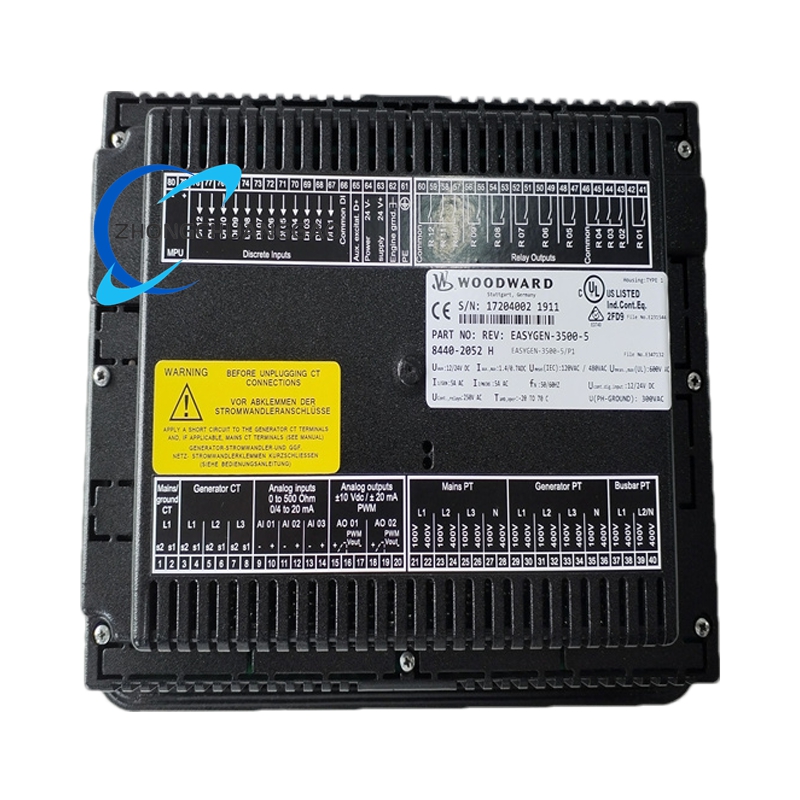

Woodward EASYGEN-3200 8440-2052H Controller

Electrical Parameters

  • Input Voltage: 12/24 VDC (8–40 VDC range)
  • Power Consumption: 17–19 W
  • Current Rating: 5A CT inputs

I/O Capabilities

  • Discrete I/O: 32 configurable inputs + 32 outputs (expandable to 42 outputs via I/O boards)
  • Analog I/O: 3 configurable inputs + 16 external inputs (via CANopen)
  • Breaker Control: Slip-frequency synchronization, open/close control

Environmental Ratings

  • Operating Temp: -20°C to +70°C (alternative: -40°C to +85°C)
  • Protection Class: IP20
  • Humidity: 10–90% non-condensing
WhatApp
WeChat

Detailed content

Physical Dimensions

  • Size: 282 × 217 × 99 mm (alternative: 190 × 165 × 53 mm)
  • Weight: 1,850 g

Communication Interfaces

  • Serial: RS-232, RS-485 (Modbus RTU slave)
  • CAN Protocols: CANopen, SAE J1939 (engine ECU integration)
  • Remote Control: RP-3000 panel support (250m range via CANopen)

Functional Features

Advanced Control Modes

  • Operation Modes: Auto, Stop, Manual, Load/No-Load testing
  • Load Management: Soft loading/unloading, peak shaving, mains paralleling
  • PID Controllers: Configurable for CHP, pressure, fuel-level, or process control

Protection & Diagnostics

  • Real-Time Monitoring: Tracks voltage, current, frequency, power, RPM
  • Fault Protection: Overspeed, overvoltage, undervoltage, thermal overload
  • Diagnostic Tools: Integrated HMI + Woodward ToolKit® software for configuration

Programmability & Integration

  • LogicsManager™: Embedded programmable logic for custom sequences
  • Multi-Lingual Interface: 14 languages (incl. English, Chinese, Spanish, Turkish)
  • I/O Expansion: Compatible with Woodward IKD1/Phoenix Contact IL boards

Application Scenarios

Critical Infrastructure

  • Emergency Backup: Data centers, hospitals, industrial facilities
  • Microgrids: Military bases, zero-net communities, remote villages

Energy & Utilities

  • Peak Shaving: Utility grid support during high-demand periods
  • Distributed Generation (DG): Solar/wind integration, biogas plants

Industrial & Marine

  • CHP Systems: Wastewater treatment, cogeneration plants
  • Marine/Offshore: Ships, oil rigs (ABS/Lloyds Register certified)

Renewable Integration

  • Hybrid Systems: Synchronizes diesel gensets with solar/wind resources

Compatibility & Certifications

Engine/Generator Support

  • Diesel/Gas Engines: Deutz EMR2/3, MTU ADEC, Volvo EDC4, Cummins
  • Generators: Synchronous/asynchronous units (3p-3w, 3p-4w, 1p-2w windings)

Global Certifications

  • Safety: CE, UL/cUL, CSA, BDEW
  • Marine: ABS, Lloyds Register

Key Advantages

  • Scalability: Manages 1–32 gensets in parallel
  • Resilience: Operates in -40°C to +85°C extremes
  • Cost Efficiency: Reduces PLC dependency via embedded logic
  • Future-Proof: Field-upgradable firmware + I/O expansion
