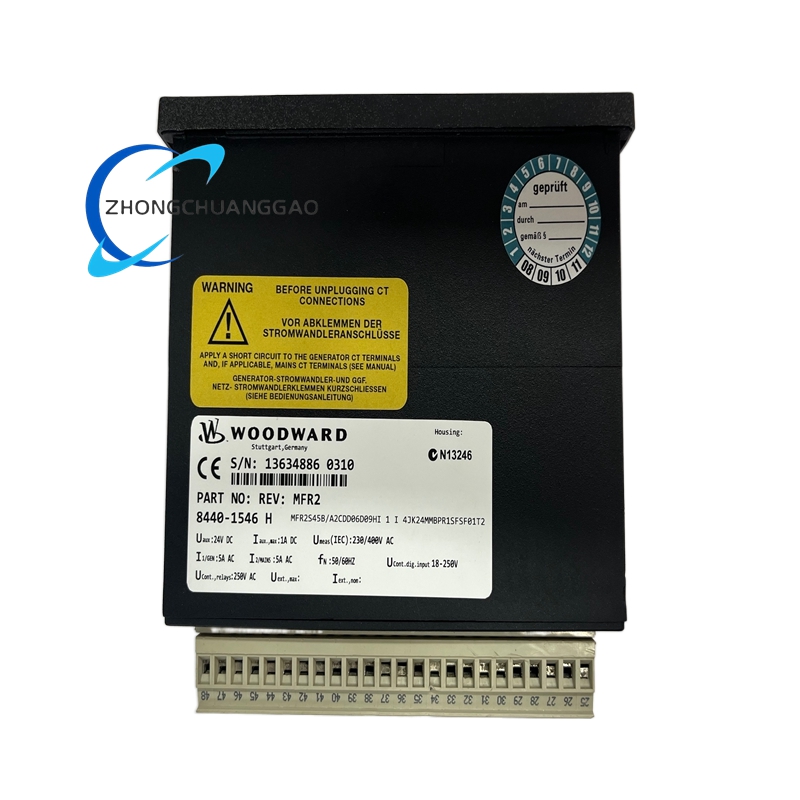

Woodward 8440-1546H
Product Name: Woodward Digital Control, Governor or MicroNet-Class Module for Engine, Turbine or Genset Applications
Product Introduction: This part number is documented in different control configurations, so the exact nameplate, firmware and system manual define its function. Available documentation covers a MicroNet digital control module with speed, logic and protection I/O, and separate governor/genset configurations for diesel or gas engine speed control.
Detailed content
Technical Specifications – MicroNet Configuration: 24 V DC typical; 8 digital inputs, 4 digital outputs, 2 analog inputs, 1 analog output; 1 magnetic-pickup speed input; RS-485 Modbus; 32-bit microcontroller; 2 MB flash, 1 MB RAM; power dissipation around 8 W; operating temperature -40 to +70 °C.
Technical Specifications – Genset/Governor Configuration: 12/24 V DC wide input, documented ranges 8–36 V DC or 8–40 V DC depending on variant; speed, load, analog and discrete I/O according to the governor manual; RS-485, Modbus RTU and/or J1939 depending on firmware; operating temperature commonly -20 to +70 °C in documented genset variants.
Functional Features: PID speed and load control; sequencing and logic; overspeed and underspeed protection; analog process measurement; event logging; Modbus or J1939 communication; isochronous or droop control where configured as governor.
Performance Parameters: Speed accuracy up to ±0.25 % in documented MicroNet listings; scan or control cycle in milliseconds depending on firmware; magnetic-pickup frequency range defined by the speed-input manual; vibration-resistant industrial construction.
Material And Structure: Anodized aluminum or industrial enclosure depending on variant; FR-4 conformal-coated PCB; gold-plated or tin-plated connectors; DIN-rail base for modular versions or panel enclosure for governor versions; front-panel status LEDs.
Working Principle: The module receives speed-pickup, analog process and discrete signals, executes control and protection algorithms, and outputs actuator commands to fuel valves, servos or turbine controls. Communication ports exchange setpoints, diagnostics and supervisory commands with the plant controller.
Installation Requirements: Confirm nameplate voltage, I/O and firmware before wiring. For DIN-rail versions, mount on 35 mm rail with adequate clearance. For panel governor versions, use grounded metal enclosure. Use shielded twisted-pair cable for speed, analog and communication circuits; separate signal and power wiring.
Application Scenarios: Gas and steam turbine auxiliaries, reciprocating-engine gensets, compressor drives, pump controls and industrial prime-mover speed governance.
Usage Precautions: Verify the exact 1546H suffix and Woodward manual before applying power. Back up configuration before changes. Test overspeed, underspeed and trip functions during commissioning. Follow ESD handling. Do not mix MicroNet I/O wiring with governor harnesses unless the manual confirms compatibility.
