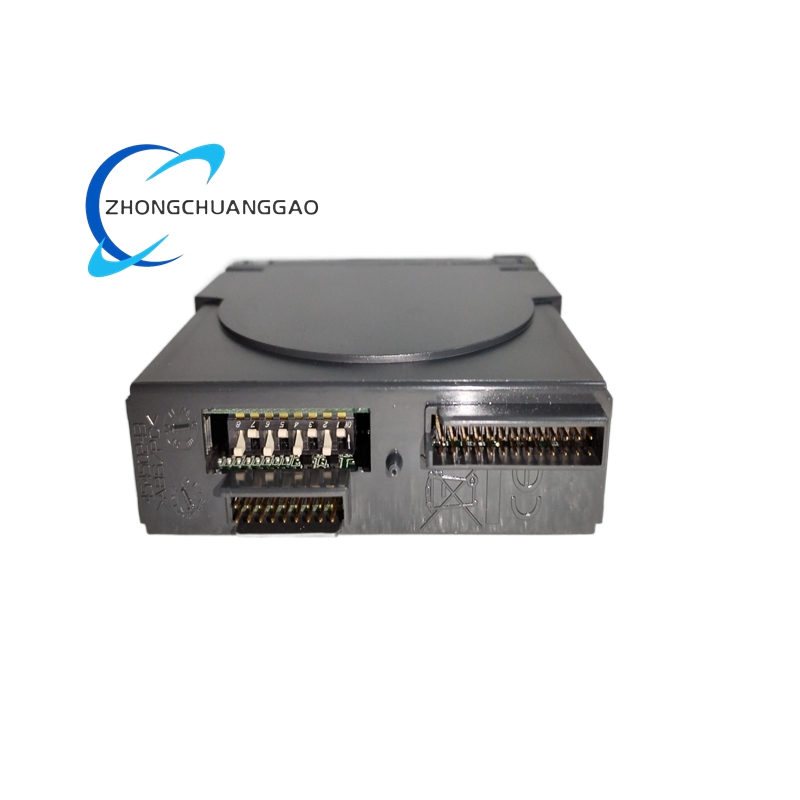

VALMET AI8H D201189 analog input module
Product Introduction
The AI8H D201189 is an analog input module used in a Valmet DNA distributed control system. It acquires standard 4–20 mA field signals from process transmitters and converts them into digital values for control, monitoring, and alarming. Publicly available official technical documentation for this exact spare number is limited.
Detailed content
Technical Specifications
- Typical input channels: 8
- Typical input signal: 4–20 mA
- Typical feedback support: HART, depending on system configuration
- System platform: Valmet DNA DCS
- Backplane interface: proprietary Valmet DNA I/O bus
- Exact voltage, accuracy, isolation, power consumption, and environmental ratings: not found in publicly available official documentation
Function Features
- Standard 4–20 mA analog signal acquisition
- Conversion of field measurements for DCS processing
- HART communication capability in supported configurations
- Continuous industrial process monitoring
- Modular replacement within a compatible I/O rack
Application Scenarios
- Pulp and paper process control
- Flow, pressure, temperature, and level measurement
- Chemical and petrochemical plants
- Power generation
- Mining and metals processing
- Water and wastewater treatment
Performance Parameters
The exact sampling rate, resolution, accuracy, and isolation rating for D201189 could not be verified in the available public documentation.
Material Composition
- Industrial control module housing
- Analog input signal-conditioning circuits
- Isolation and conversion components
- Backplane connector
- Field-side terminals or connectors
- Internal printed circuit board
Structural Features
- DCS rack or backplane I/O module
- Proprietary Valmet mechanical and electrical interface
- Modular plug-in design
- Compatible with the specific Valmet DNA I/O rack and cabling
Working Principle
Field transmitters send 4–20 mA signals proportional to pressure, temperature, flow, or level. The module receives each current loop, converts the signal into a digital process value, and transmits the value across the I/O backplane to the DCS controller. Where HART is supported, digital device information can also be communicated.
Installation Requirements
- Install only in a compatible Valmet DNA I/O rack
- Verify rack type, slot position, and backplane compatibility
- Ensure correct system firmware and configuration
- Use shielded cables for analog field wiring
- Ground shields according to Valmet installation practice
- Verify transmitter power and loop polarity before commissioning
Usage Precautions
- This module is not a programmable logic controller or CPU.
- Do not install in a generic PLC rack.
- Verify the exact cable and terminal assignment for the rack type.
- HART functionality depends on system configuration and connected devices.
- Confirm hardware revision and firmware compatibility before replacement.
