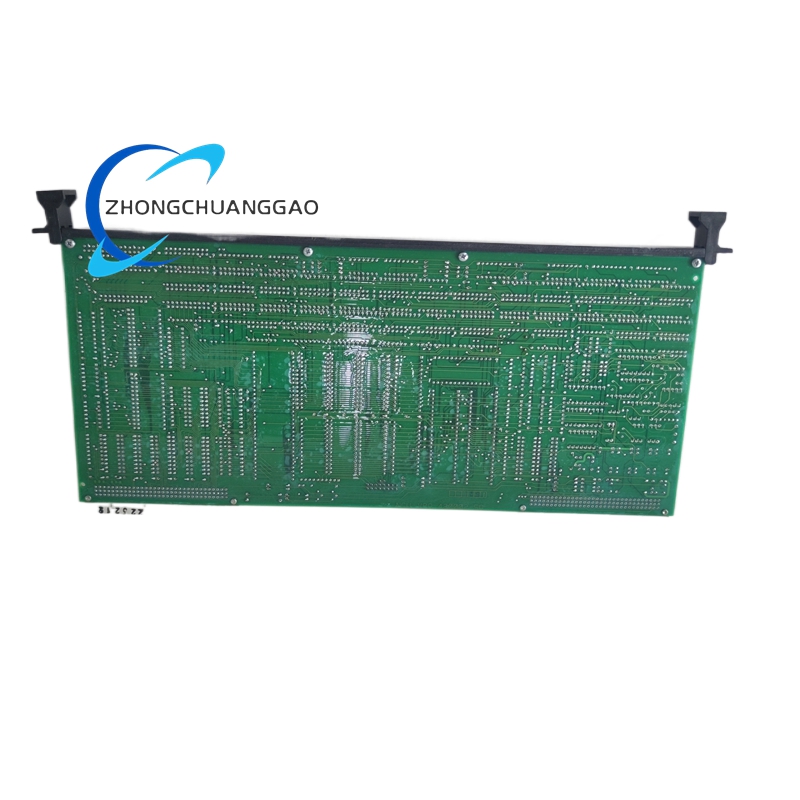

VALMET A413015
Product Name: Valmet A413015 NCU 09 (Network Control Unit) / SIO21 Digital I/O Module
Product Introduction: The Valmet A413015 is a control module within the Valmet/Metso DNA distributed automation system. Depending on the specific variant, it functions either as an NCU 09 Network Control Unit managing data traffic and node routing, or as a 5320-SIO21 8-channel digital I/O module for field device interfacing.
Detailed content
Technical Specifications (NCU Variant):
|
Parameter
|
Value
|
|---|---|
|
Brand
|
VALMET (Metso Automation)
|
|
Model
|
A413015
|
|
Designation
|
NCU 09
|
|
Product Type
|
Network Control Unit / Communication Board
|
|
Bus Architecture
|
Valmet/Metso Proprietary Backplane Bus
|
|
Mounting
|
Eurocard / DIN 41612 Connector (VME-style)
|
|
Operating Temperature
|
0°C to 60°C
|
|
Status Indicators
|
On-board LEDs (Run/Fault/Network)
|
Technical Specifications (SIO21 Variant):
|
Parameter
|
Value
|
|---|---|
|
Module Type
|
5320-SIO21 (A413015)
|
|
Channels
|
8 (4 Digital Input + 4 Digital Output)
|
|
Input Voltage
|
24 VDC (typical)
|
|
Input Current
|
Approx. 4 mA per channel
|
|
Output Type
|
Solid-State (Transistor), 0.5 A max per channel
|
|
Isolation
|
Channel-to-channel and bus isolation
|
|
Operating Temperature
|
0°C to +60°C
|
Functional Features:
- Manages real-time data exchange and node routing (NCU variant)
- Buffers data and manages handshake with CPU
- Handles digital field device interfacing (SIO variant)
- LED indicators for channel status and module health
Installation Requirements:
- Power down rack unless hot-swap is explicitly supported
- Discharge static electricity before handling
- Use extraction levers or pull gently by faceplate edges
- Align carefully with guide rails before insertion
Usage Notes:
- Verify hardware revision compatibility (Ver. 05, 07, 08, 09)
- Clear or reconfigure network parameters/IP addresses before installation
- Inspect card guide rails for debris to prevent misalignment
- Do not mix incompatible revisions in the same rack
